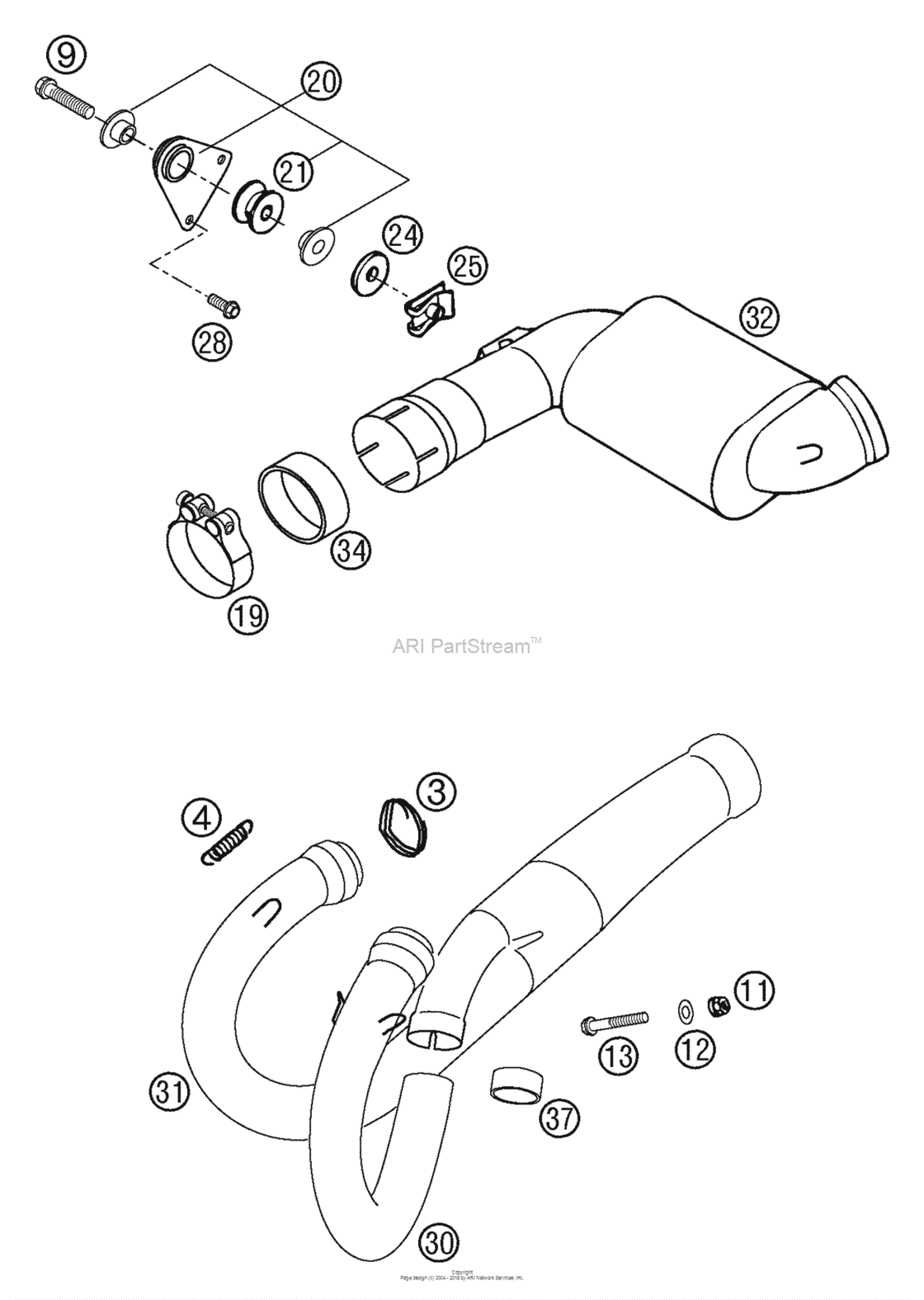

Pipes, Pre Silencer Diagram KTM 400 400 LS-E/Mil
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 LS-E/Mil
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
58305053001 Ceramic line 1 meter2 |
58305053001 |
US $5.68 |
||
|
4
|
4
54309036000 Return spring l=38 mm2 |
54309036000 |
US $4.23 |
||
|
9
|
9
0015080353 Hh Collar Screw M 8X35 Ws=102 |
0015080353 |
US $7.12 |
||
|
11
|
11
51010086000 Self locking nut m 6 copper2 |
51010086000 |
US $1.63 |
||
|
12
|
12
0125060003 Washer Din0125-A 6,42 |
0125060003 |
US $0.37 |
||
|
13
|
13
0015060403
Hh Collar Screw M6X40 Tx30
2 |
0015060403 |
— | ||
| replacement | |||||
|
13
|
13
0025060406 Hh collar screw m6x40 tx302 |
0025060406 |
US $2.23 |
||
|
19
|
19
58705058000 Pre silencer clamp d=53mm '992 |
58705058000 |
US $32.47 |
||
|
20
|
20
5830506504430
Bracket-pre silencer cpl.black
2 |
5830506504430 |
— | ||
|
21
|
21
54305068100 Damp. component silicone grey2 |
54305068100 |
US $14.26 |
||
|
24
|
24
51005067000 Insolate washer 8,5x28x32 |
51005067000 |
US $3.26 |
||
|
25
|
25
54603048000 Range Change Metal Nut M82 |
54603048000 |
US $3.35 |
||
|
28
|
28
0015060163 Hh Collar Screw M 6X16 Ws=82 |
0015060163 |
US $2.23 |
||
|
30
|
30
5770500710030
Exhaust Pipe L/s Black '97
2 |
5770500710030 |
— | ||
|
31
|
31
5770500810030
Exhaust Pipe R/s Black '97
2 |
5770500810030 |
— | ||
|
32
|
32
5840505030030
Pre-Silencer In.ktm V2In. Black
2 |
5840505030030 |
— | ||
|
34
|
34
58405005001 Graphitring 45x50x252 |
58405005001 |
US $33.83 |
||
|
37
|
37
57705005000 Graphit ring 28x32x202 |
57705005000 |
US $11.87 |
||
