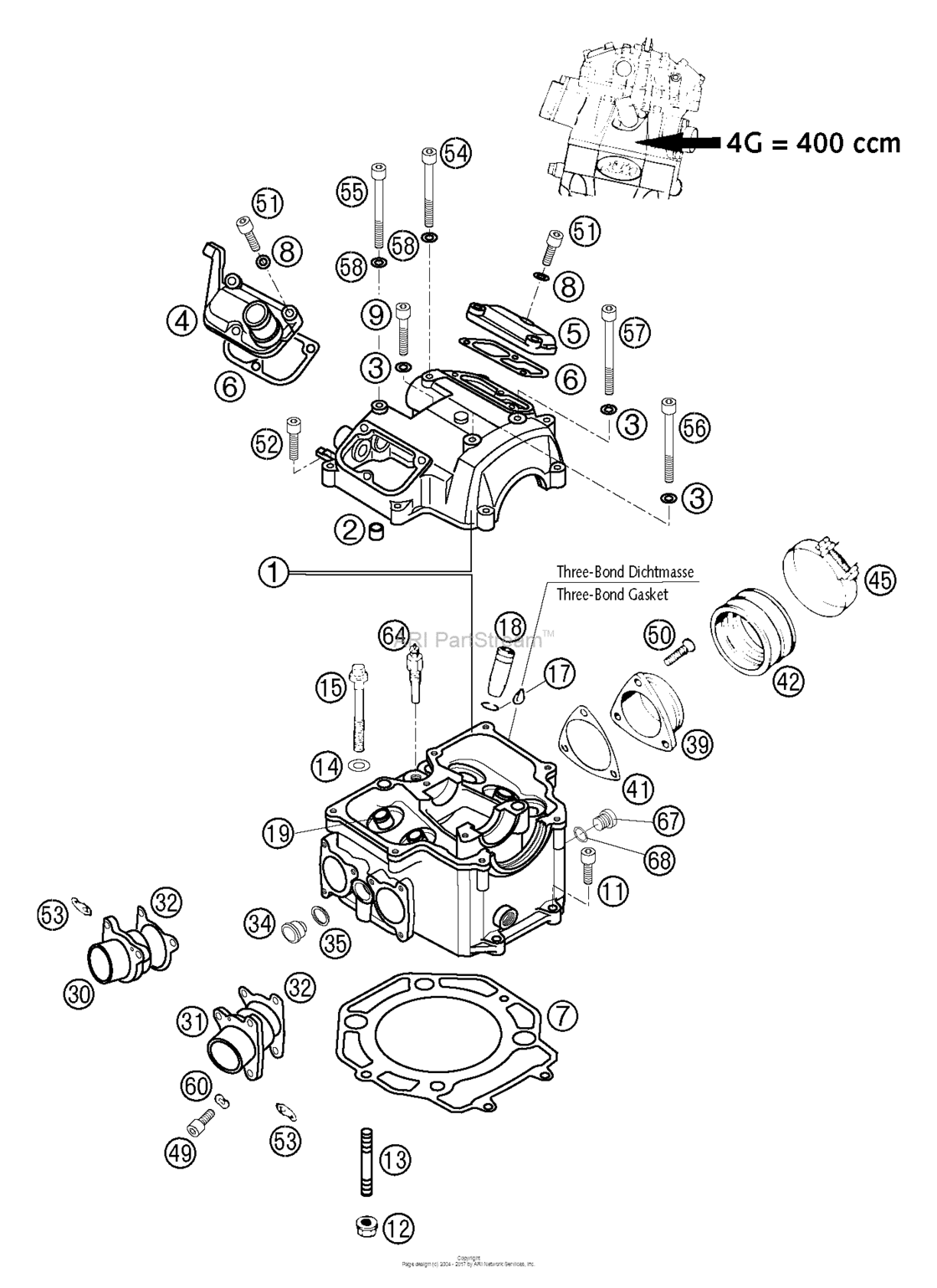

Cylinder Head Diagram KTM 400 400 LS-E/Mil
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 LS-E/Mil
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57636020300 Cylinder head cpl. 400 lc4 '972 |
57636020300 |
US $964.97 |
||
|
2
|
2
49030090000 Dowel 9,8 x 7 x 102 |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
2
|
2
49030090100 Dowel 9,8 X7X102 |
49030090100 |
US $2.60 |
||
|
3
|
3
58036065100 Cu-seal ring 6 x 10 x 22 |
58036065100 |
US $0.90 |
||
|
4
|
4
58036152600 Valve cover front '992 |
58036152600 |
US $33.58 |
||
|
5
|
5
58036052000 Valve Cover Rear2 |
58036052000 |
US $43.76 |
||
| replacement | |||||
|
5
|
5
58036052200 Valve cover rear2 |
58036052200 |
US $14.33 |
||
|
6
|
6
58036053000 Valve cover gasket2 |
58036053000 |
US $4.71 |
||
|
7
|
7
57530036000 Cylinder head gasket 90,3 mm2 |
57530036000 |
US $64.33 |
||
|
8
|
8
0603061001 Cu-Seal Ring Din7603-6X10X12 |
0603061001 |
US $2.64 |
||
|
9
|
9
0912060353 Ah Screw Din0912-M 6X352 |
0912060353 |
US $2.09 |
||
|
11
|
11
0912060253 Ah Screw Din0912-M 6X252 |
0912060253 |
US $1.79 |
||
|
12
|
12
49030028000 Collar nut m82 |
49030028000 |
US $2.09 |
||
|
13
|
13
54330043000 Stud din0835-m 8x402 |
54330043000 |
US $3.79 |
||
|
14
|
14
0125100003 Washer Din0125-A10,52 |
0125100003 |
US $1.19 |
||
|
15
|
15
58036099100 Collar screw m10x80 ws=13 10.92 |
58036099100 |
US $8.87 |
||
|
17
|
17
0993012000 Circlip Din7993-Rw122 |
0993012000 |
US $2.11 |
||
|
18
|
18
58036026644 Valve guide intake cpl.2 |
58036026644 |
US $14.43 |
||
|
19
|
19
58036126644 Valve guide exhaust cpl.2 |
58036126644 |
US $14.43 |
||
|
30
|
30
58036040100 Exhaust flange r/s 042 |
58036040100 |
US $27.71 |
||
|
31
|
31
58036140100 Exhaust flange l/s2 |
58036140100 |
US $24.09 |
||
|
32
|
32
58036041000 Exhaust flange gasket2 |
58036041000 |
US $4.71 |
||
|
34
|
34
58336024000 Plug sas bore2 |
58336024000 |
US $2.92 |
||
|
35
|
35
58436054000 Cu-seal ring 12 x 16 x 22 |
58436054000 |
US $1.19 |
||
|
39
|
39
58136042040
Intake flange d=40mm
2 |
58136042040 |
— | ||
|
41
|
41
58136043000 Intake flange gasket2 |
58136043000 |
US $3.30 |
||
|
42
|
42
58436044000 Intake boot for mikuni carbu.2 |
58436044000 |
US $29.05 |
||
|
45
|
45
56530061000
Clamp sm12/a60
2 |
56530061000 |
— | ||
|
49
|
49
0912060163 Ah Screw Din0912-M 6X162 |
0912060163 |
US $1.29 |
||
|
50
|
50
0991060203 Flat Head Din7991-M 6X202 |
0991060203 |
US $2.99 |
||
| replacement | |||||
|
50
|
50
0991060202 Flat head din7991-m 6x202 |
0991060202 |
US $3.26 |
||
|
51
|
51
0912060203 Ah Screw Din0912-M 6X202 |
0912060203 |
US $1.04 |
||
|
52
|
52
0912060253 Ah Screw Din0912-M 6X252 |
0912060253 |
US $1.79 |
||
|
53
|
53
51005074000 Retaining plate2 |
51005074000 |
US $2.11 |
||
|
54
|
54
0912070553
Ah screw din0912-m 7x55 12.9
2 |
0912070553 |
— | ||
|
55
|
55
0912070603 Ah screw din0912-m 7x60 12.92 |
0912070603 |
US $7.72 |
||
|
56
|
56
0912060653 Ah Screw Din0912-M 6X652 |
0912060653 |
US $1.84 |
||
|
57
|
57
0912060703 Ah screw din0912-m 6x702 |
0912060703 |
US $1.79 |
||
|
58
|
58
0603070122 Cu-seal ring din7603- 7x12x22 |
0603070122 |
US $1.21 |
||
|
60
|
60
0137060003 Spring Washer Din0137-B 62 |
0137060003 |
US $0.43 |
||
|
64
|
64
42011252000
Temperature switch vdo
2 |
42011252000 |
— | ||
|
67
|
67
0770100020 O-ring 10,00x2,00 silcone2 |
0770100020 |
US $2.02 |
||
|
68
|
68
0908120153 Plug din0908-m12x1,52 |
0908120153 |
US $3.81 |
||
