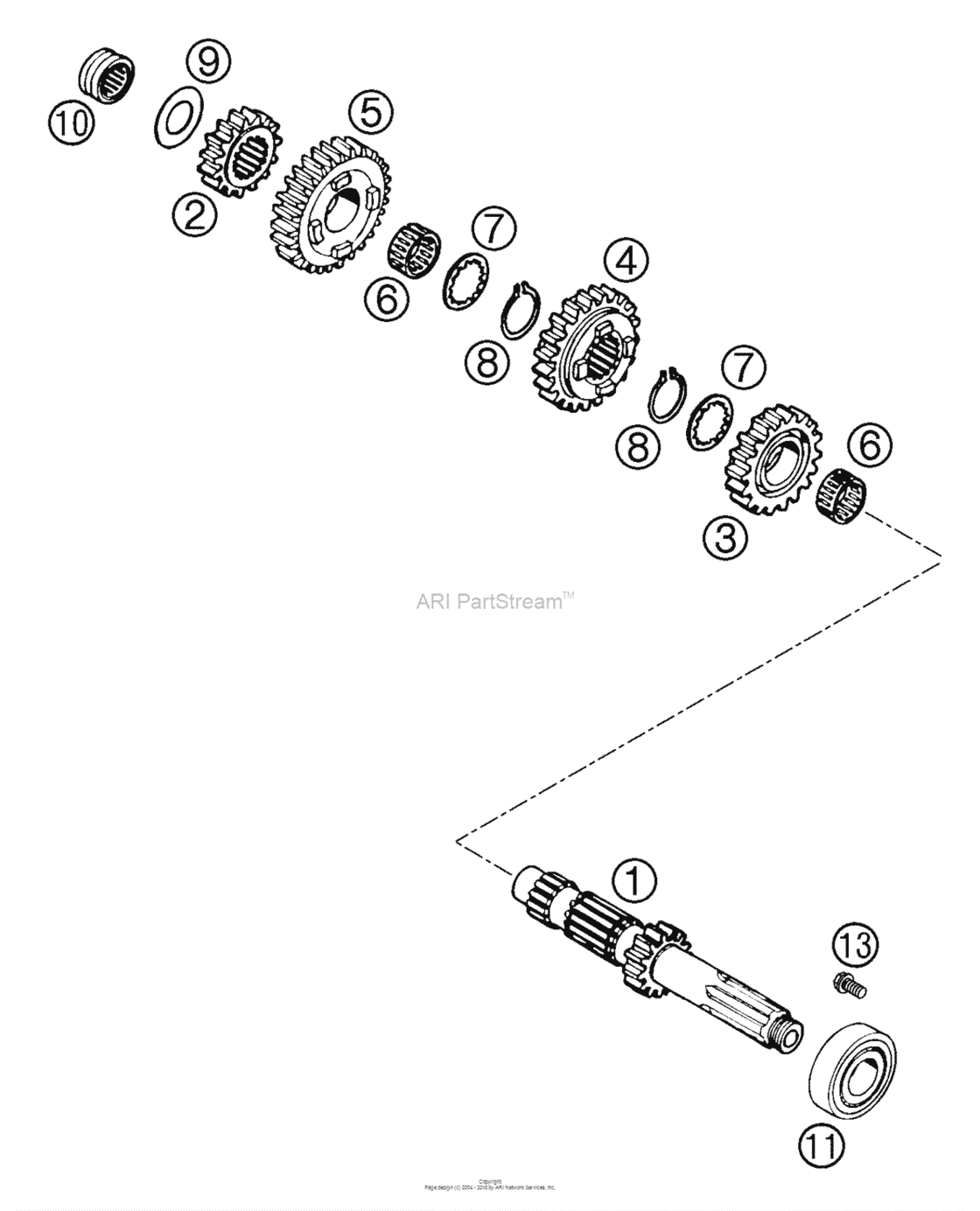

Transmission I - Main Shaft Diagram KTM 400 400 LS-E/Mil
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 LS-E/Mil
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58333002100 Main shaft 14-t '962 |
58333002100 |
US $528.60 |
||
|
2
|
2
56533010300 Solid gear 2.g 15-t (2g3)2 |
56533010300 |
US $148.67 |
||
|
3
|
3
58333004002 Idler gear 3.g 18-t "02"2 |
58333004002 |
US $119.05 |
||
|
4
|
4
58333006004 Sliding gear 4.g 20-t "04"2 |
58333006004 |
US $138.36 |
||
|
5
|
5
58333008008
Idler gear 5.g 22-t "08"
2 |
58333008008 |
— | ||
|
6
|
6
56533099000 Needle Bear. K 22X26X13 Tn2 |
56533099000 |
US $11.36 |
||
| replacement | |||||
|
6
|
6
0405222613 Needle Bear. K 22X26X13 Tn2 |
0405222613 |
US $9.52 |
||
|
7
|
7
56533016300 Stop disk 22,7 x 32 x 1,52 |
56533016300 |
US $5.68 |
||
|
8
|
8
52033096000 Lock ring din0471-25x1,64sd2 |
52033096000 |
US $4.17 |
||
|
9
|
9
56533015000
Stop disk 20,2 x 35 x 1
2 |
56533015000 |
— | ||
|
10
|
10
56533093000 Needle bearing rna 4902 kse2 |
56533093000 |
US $22.32 |
||
|
11
|
11
58533025000 Cyl.roll bearing bc1-0076a2 |
58533025000 |
US $148.58 |
||
|
13
|
13
0015060123
Hh Collar Screw M 6X12 Ws=8
2 |
0015060123 |
— | ||
| replacement | |||||
|
13
|
13
0025060126 Hh collar screw m6x12 tx302 |
0025060126 |
US $3.96 |
||
