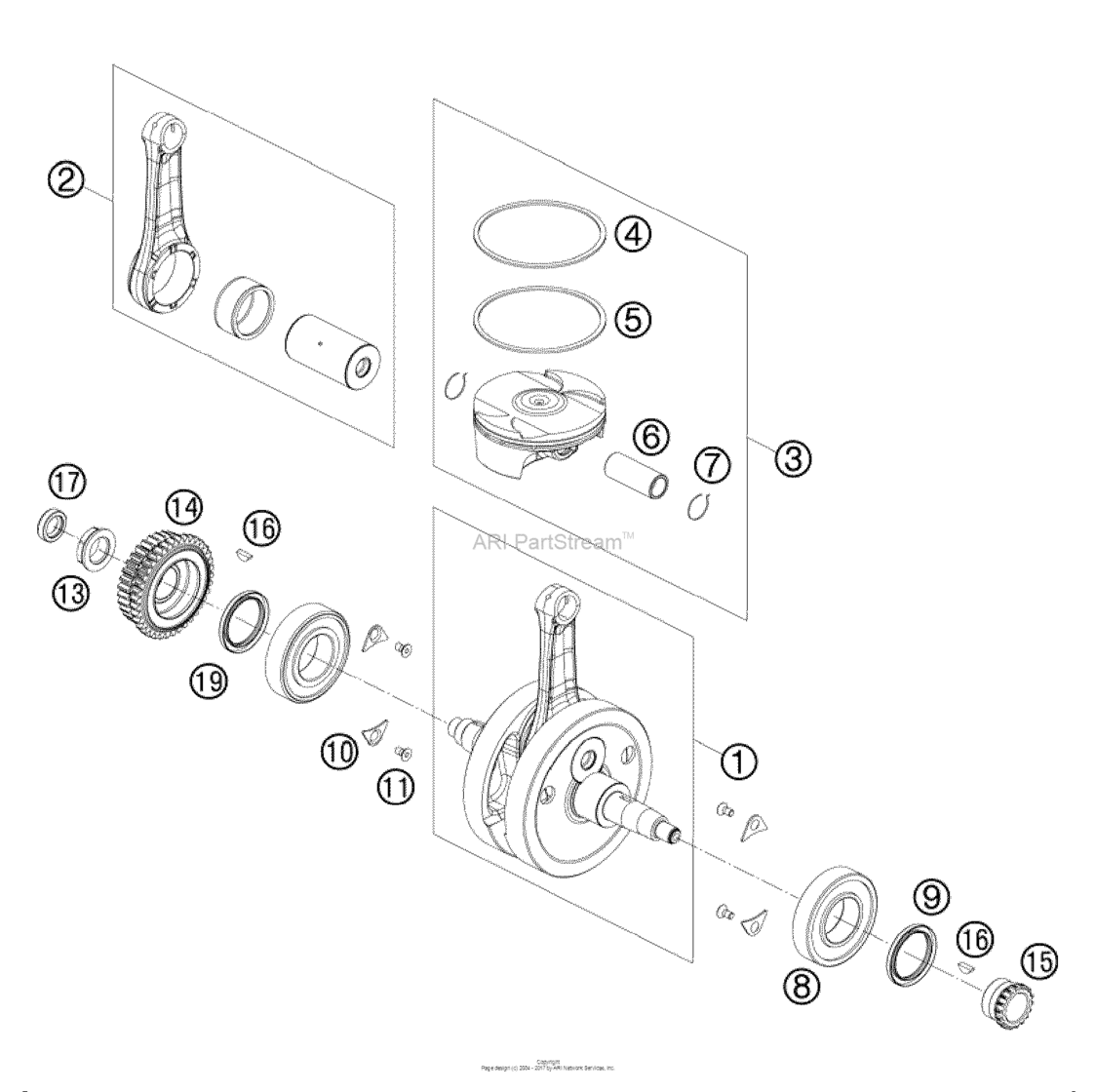

Crankshaft, Piston Diagram KTM 400 400 XC-W
- Year
- 2009
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78330018100
Crankshaft cpl.
08 |
78330018100 |
— | ||
| replacement | |||||
|
1
|
1
78330018200 CRANKSHAFT CPL.08 |
78330018200 |
US $727.86 |
||
|
2
|
2
78330015044 Con rod rep.-kit 400 0909 |
78330015044 |
US $519.57 |
||
|
3
|
3
78330007000I
Piston d=95mm size 1
09 |
78330007000I |
— | ||
|
3
|
3
78330007000II
Piston d=95mm size 2
09 |
78330007000II |
— | ||
|
4
|
4
78030030000 Compression Ring08 |
78030030000 |
US $48.09 |
||
| replacement | |||||
|
4
|
4
78030030100 Compression Ring08 |
78030030100 |
US $41.65 |
||
|
5
|
5
78030032100
Oil Scraper Piston Ring
08 |
78030032100 |
— | ||
| replacement | |||||
|
5
|
5
78030032200 Oil Scraper Piston Ring08 |
78030032200 |
US $52.85 |
||
|
6
|
6
78030033000 Piston pin 0808 |
78030033000 |
US $77.62 |
||
|
7
|
7
77330074000 Circlip08 |
77330074000 |
US $13.04 |
||
|
8
|
8
0625062071 Ball bearing 6207 tm-sx07e 3908 |
0625062071 |
US $48.54 |
||
|
9
|
9
0760354773 Shaft seal ring 35x47x7 a-duo08 |
0760354773 |
US $34.99 |
||
|
10
|
10
75030085000 Retaining plate f. cs bearing08 |
75030085000 |
US $4.08 |
||
|
11
|
11
0019050103 Int. torx flat head m 5x10 8.808 |
0019050103 |
US $0.82 |
||
| replacement | |||||
|
11
|
11
0019050106S Int. Torx Flat Head M5X10 10.908 |
0019050106S |
US $0.27 |
||
|
13
|
13
78030029100 Nut primary wheel08 |
78030029100 |
US $9.15 |
||
|
14
|
14
78032000233
Primary wheel
08 |
78032000233 |
— | ||
| replacement | |||||
|
14
|
14
78032000333 Primary wheel08 |
78032000333 |
US $199.70 |
||
|
15
|
15
78036014200 Timing gear 18t.08 |
78036014200 |
US $28.66 |
||
|
16
|
16
0888030037 Woodruff key din6888-3x3,708 |
0888030037 |
US $0.58 |
||
|
17
|
17
0760142460 Shaft seal ring 14x24x6 b08 |
0760142460 |
US $11.70 |
||
|
19
|
19
0760354774 Shaft seal ring 35x47x7 viton08 |
0760354774 |
US $11.70 |
||
