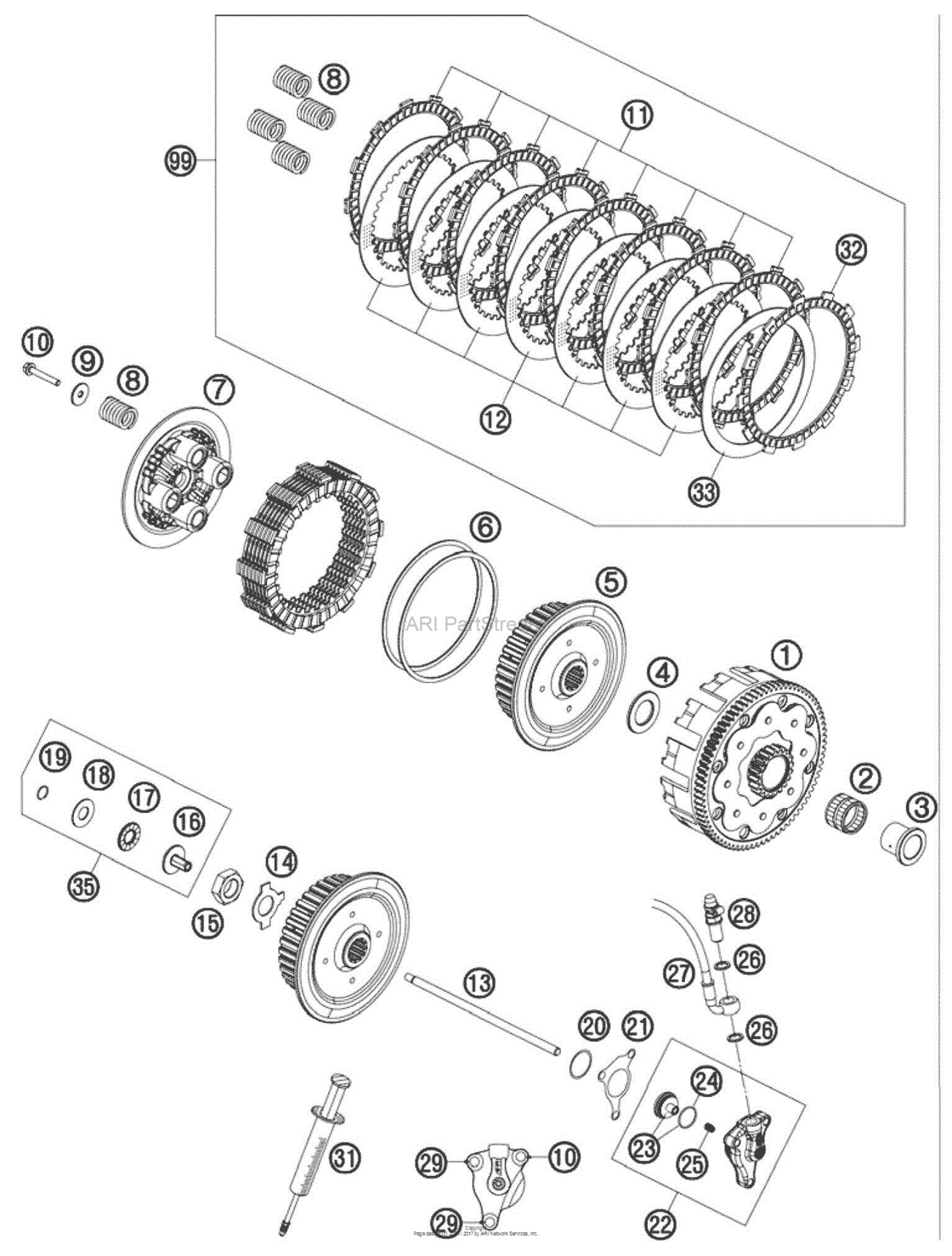

Clutch Diagram KTM 400 400 XC-W
- Year
- 2010
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78032001144 Clutch Cage Cpl. 20102006 |
78032001144 |
US $657.46 |
||
|
2
|
2
56532095000 Needle bearing k26x30x22zw.kse2006 |
56532095000 |
US $21.51 |
||
|
3
|
3
78032015000 Inner ring2006 |
78032015000 |
US $24 |
||
|
4
|
4
78032020000 Stop disc 0808 |
78032020000 |
US $10.29 |
||
|
5
|
5
78032002200 Inner clutch hub08 |
78032002200 |
US $165.55 |
||
|
6
|
6
78032009000 Judder spring cpl.08 |
78032009000 |
US $47.55 |
||
|
7
|
7
78032003100 Pressure plate08 |
78032003100 |
US $117.71 |
||
|
8
|
8
78032005000 Clutch spring 0808 |
78032005000 |
US $12 |
||
|
9
|
9
58432081000 Washer 6,5 x 20 x 208 |
58432081000 |
US $2.14 |
||
|
10
|
10
0025060306 Hh collar screw m6x30 tx3008 |
0025060306 |
US $3.96 |
||
|
11
|
11
78032111000
Lining disc turned off
08 |
78032111000 |
— | ||
| replacement | |||||
|
11
|
11
78032111100 Lining disc08 |
78032111100 |
US $87.02 |
||
|
12
|
12
78032010100 Friction plate steel08 |
78032010100 |
US $13.16 |
||
|
13
|
13
78032054100 Push rod l=18608 |
78032054100 |
US $8.99 |
||
|
14
|
14
77332018000 Retaining plate08 |
77332018000 |
US $3.13 |
||
|
15
|
15
0936181505 Hexagon Nut Din0936-M18X1,5 R08 |
0936181505 |
US $7.60 |
||
|
16
|
16
78032057000 Pressure piece08 |
78032057000 |
US $24.36 |
||
|
17
|
17
54637097200 Axial Needle Bearing Axk 122608 |
54637097200 |
US $10.06 |
||
|
18
|
18
54637098200 Axial washer as1226 12x26x108 |
54637098200 |
US $5.02 |
||
|
19
|
19
0993012000 Circlip Din7993-Rw1208 |
0993012000 |
US $2.11 |
||
|
20
|
20
0770300015 O-ring 30,00x1,50 nbr 7008 |
0770300015 |
US $3.26 |
||
|
21
|
21
59032065000
Gasket for slave cylinder
08 |
59032065000 |
— | ||
| replacement | |||||
|
21
|
21
59032065100 Gasket For Slave Cylinder08 |
59032065100 |
US $7.21 |
||
|
22
|
22
54832061044 Output cylinder cpl. 0606 |
54832061044 |
US $109 |
||
|
23
|
23
54832066000 Piston cpl.06 |
54832066000 |
US $63.02 |
||
|
24
|
24
54832067000 O-ring06 |
54832067000 |
US $2.69 |
||
|
25
|
25
54832069000 Pressure spring06 |
54832069000 |
US $12.09 |
||
|
26
|
26
0603100141 Copper Gasket Din7603-10X14X106 |
0603100141 |
US $2.24 |
||
|
27
|
27
54832063000 Clutch pipe 0606 |
54832063000 |
US $87.04 |
||
|
28
|
28
62513020000 Bleeder Screw Cpl. 0505 |
62513020000 |
US $30.16 |
||
|
29
|
29
0025060206 Hh collar screw m6x20 tx3005 |
0025060206 |
US $1.97 |
||
|
31
|
31
50329050000 Vent Injektion Hydr. Clutch05 |
50329050000 |
US $50.78 |
||
|
32
|
32
78032111100 Lining disc05 |
78032111100 |
US $87.02 |
||
|
33
|
33
78032010200 Steel Disc Tempered 1,4Mm05 |
78032010200 |
US $29.19 |
||
|
35
|
35
78032057044 Pressure piece cpl. 0808 |
78032057044 |
US $22.34 |
||
|
99
|
99
78032011110 Clutch-kit08 |
78032011110 |
US $352.17 |
||
