	Description	OEM Part #	Price
1	1 78014001000 Head light cpl. exc-eu 08 08	78014001000	US $94.88
2	2 54814001050 Rubber cap for head light 05 05	54814001050	US $12.41
3	3 44111038000 Bilux-bulb 12v 35/35w ba20d 05	44111038000	US $16.30
4	4 0081500181 Screw for plastic d=5x18 05	0081500181	US $1.02
	replacement
4	4 0081050181 Screw for plastic k50x18 t20 05	0081050181	US $0.73
5	5 78014009000 Drain Hole Cover 05	78014009000	US $1.96
7	7 49011435100 Bulb 12V 5W (W2,1X9,5D) Phil 05	49011435100	US $3.81
8	8 54811001050 Cable for head light 2005 2005	54811001050	US $12.22
20	20 50314040200 Rear Light Cpl. Exc 07 07	50314040200	US $70.24
21	21 50314041100 Rear Light Lens 125-380 Egs'98 '98	50314041100	US $27.57
22	22 0021060003 Washer Din9021-A 6,4 '98	0021060003	US $3.26
23	23 0985060003 Self Lock. Nut Din0985-M 6 '98	0985060003	US $2.60
24	24 50311076000 Wiring harness rear 125-380'98 '98	50311076000	US $40.94
25	25 58414042000 Bulb 12V 21/5W (Bay15S)Reinfo '98	58414042000	US $12.56
28	28 0981350323 Sheet met. scr. din7981 3,5x32 '98	0981350323	US $0.29
30	30 78114025000 Flasher cpl.front l/s rear r/s '98	78114025000	US $42.13
31	31 78114026000 Flasher cpl.front r/s rear l/s '98	78114026000	US $42.13
32	32 60114027000 Bulb 12v orange (ry10w) (RY10W)	60114027000	US $5.90
33	33 0125100003 Washer Din0125-A10,5 (RY10W)	0125100003	US $1.19
34	34 0797100003 Lock washer din6797-j10,5 zi (RY10W)	0797100003	US $0.65
35	35 58414030000 Hh collar nut m10x1,25 ws=13 WS=13	58414030000	US $2.60
36	36 78114028000 Flasher Lens L/s R/s Transp WS=13	78114028000	US $8.81

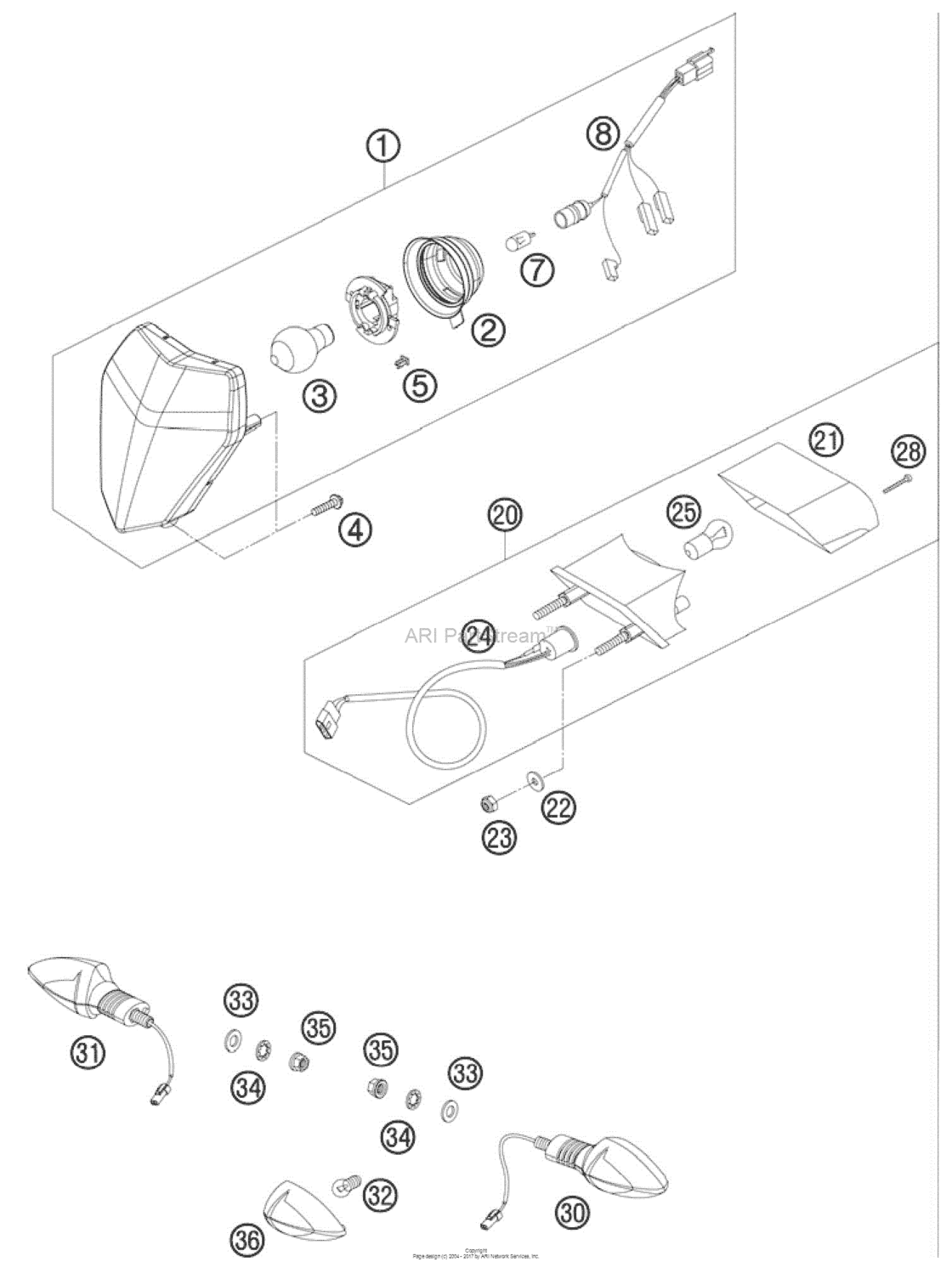

Lighting System Diagram KTM 450 450 EXC US/EU 18093434-940040

Lighting System Diagram KTM 450 450 EXC US/EU 18093434-940040
