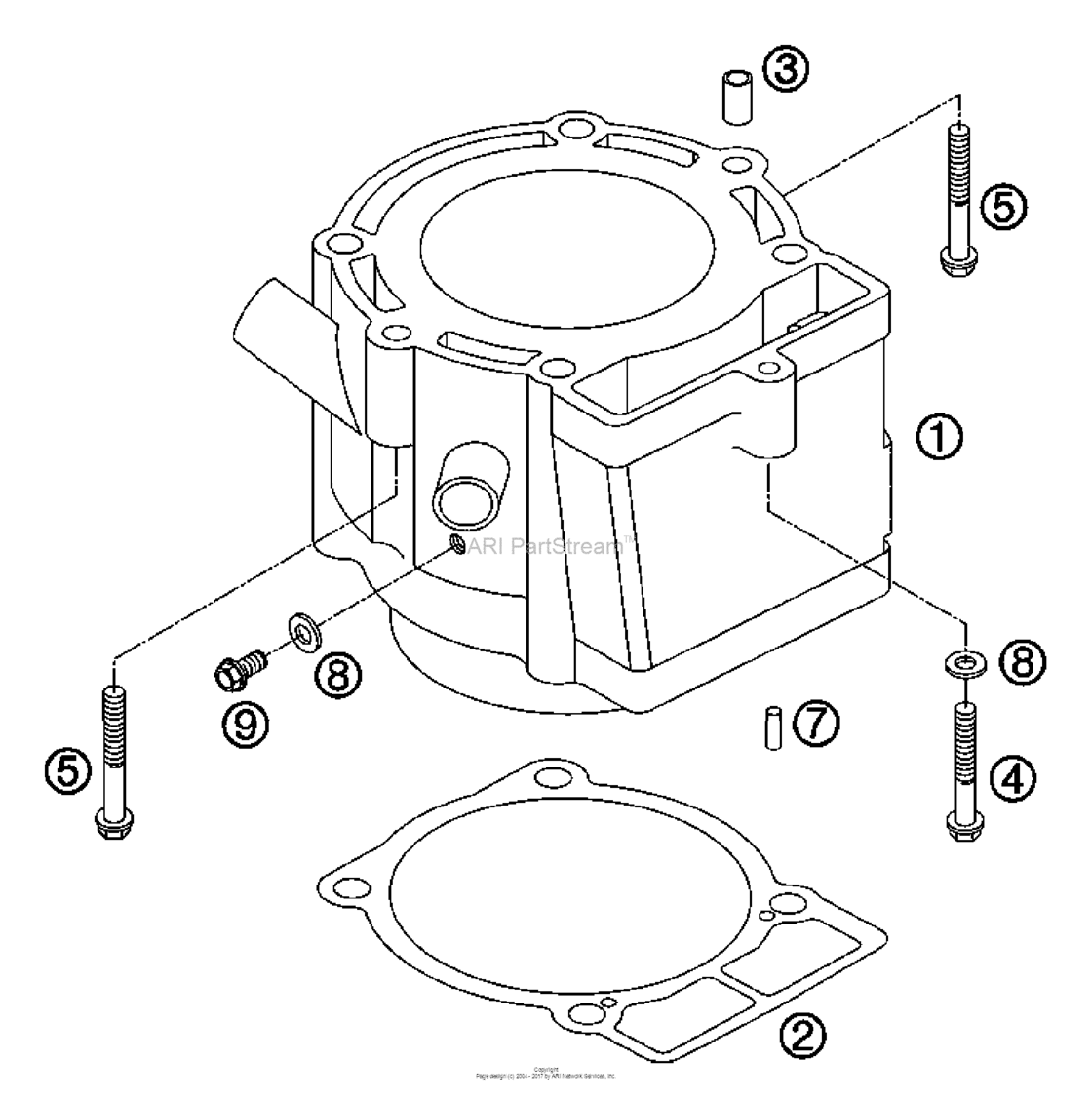

Cylinder Diagram KTM 450 450 EXC
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 EXC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59530005000
Cylinder 89mm 400 racing 2000
WITH WASHER |
59530005000 |
— | ||
| replacement | |||||
|
1
|
1
59530038000
Cylinder and piston cpl. 400
WITH WASHER |
59530038000 |
— | ||
|
2
|
2
59430035000 Cylinder base gasket 0,8mm 04WITH WASHER |
59430035000 |
US $6.92 |
||
|
3
|
3
59030023000 Dowel 6X8X11,5WITH WASHER |
59030023000 |
US $2.92 |
||
|
4
|
4
0015060403
Hh Collar Screw M6X40 Tx30
WITH WASHER |
0015060403 |
— | ||
| replacement | |||||
|
4
|
4
0025060406 Hh collar screw m6x40 tx30WITH WASHER |
0025060406 |
US $2.23 |
||
|
5
|
5
0015060453
Hh collar screw m 6x45 ws=8
WITH WASHER |
0015060453 |
— | ||
| replacement | |||||
|
5
|
5
0025060456 Hh collar screw m6x45 tx30WITH WASHER |
0025060456 |
US $1.89 |
||
|
7
|
7
0402040980 Needle Rol.din5402 Nrb 4X9,8WITH WASHER |
0402040980 |
US $1.77 |
||
|
8
|
8
0603061001 Cu-Seal Ring Din7603-6X10X1WITH WASHER |
0603061001 |
US $2.64 |
||
|
9
|
9
0015060103
Hh collar screw m 6x10 ws=8
WITH WASHER |
0015060103 |
— | ||
| replacement | |||||
|
9
|
9
0025060106 Hh collar screw m6x10 tx30WITH WASHER |
0025060106 |
US $1.58 |
||
