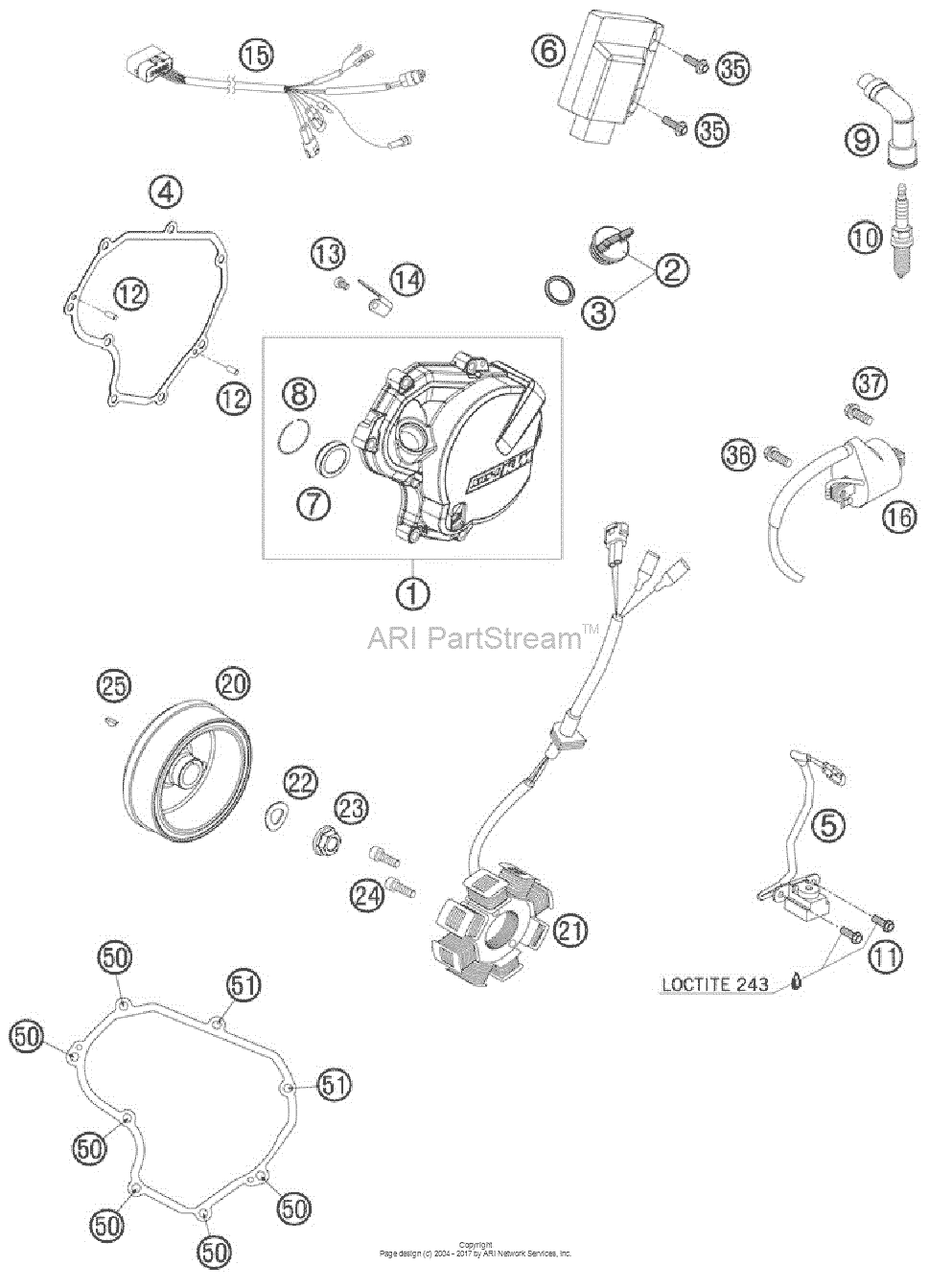

Ignition System Diagram KTM 450 450 EXC-R
- Year
- 2008
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 EXC-R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7803000203325
Ignition Cover
WS=8 |
7803000203325 |
— | ||
| replacement | |||||
|
1
|
1
7803000213315 Ignition coverWS=8 |
7803000213315 |
US $153.46 |
||
|
2
|
2
58030020100 Plug Cpl. M24X3WS=8 |
58030020100 |
US $6.73 |
||
|
3
|
3
0770191015 O-ring 19,00x3,00 nbrWS=8 |
0770191015 |
US $1.16 |
||
|
4
|
4
78030040000 Gasket ignition cover 0808 |
78030040000 |
US $13.58 |
||
|
5
|
5
77339034000 Pulser coil kokusan "pu5165"08 |
77339034000 |
US $149.58 |
||
|
6
|
6
78039031000
Cdi Unit 450 Exc-F
08 |
78039031000 |
— | ||
| replacement | |||||
|
6
|
6
78039031100
Cdi unit 450 exc 09
08 |
78039031100 |
— | ||
|
7
|
7
78030095000
Oil level glass 30x8 07
07 |
78030095000 |
— | ||
| replacement | |||||
|
7
|
7
78030095100 Oil Level Glass Viton07 |
78030095100 |
US $12.04 |
||
|
8
|
8
61030019050 Circlip oil level glass 0303 |
61030019050 |
US $0.66 |
||
|
9
|
9
78039090000 Spark plug connect. ap-trs190803 |
78039090000 |
US $19.69 |
||
|
10
|
10
78039093000 Spark plug lkar8a-903 |
78039093000 |
US $15.81 |
||
|
11
|
11
0015050163 Hh Collar Screw M 5X16 Ws=8WS=8 |
0015050163 |
US $1.31 |
||
|
12
|
12
0402040980 Needle Rol.din5402 Nrb 4X9,8WS=8 |
0402040980 |
US $1.77 |
||
|
13
|
13
0991040103S Flat head screw din7991-m 4x10WS=8 |
0991040103S |
US $0.53 |
||
|
14
|
14
78030002010 Wiring retaining bracketWS=8 |
78030002010 |
US $4.44 |
||
|
15
|
15
78039032000 Wiring harness f. cdi-box 0808 |
78039032000 |
US $74.22 |
||
|
16
|
16
59039006000 Ignitioncoil "ig5128"08 |
59039006000 |
US $132.38 |
||
|
20
|
20
78039005000 Flywheel08 |
78039005000 |
US $237.30 |
||
|
21
|
21
80039004000
Stator husaberg fs/fe 04
04 |
80039004000 |
— | ||
|
22
|
22
0137120000 Spring washer din0137-b1204 |
0137120000 |
US $0.39 |
||
|
23
|
23
49030021000 Collar nut m12x1 r/s04 |
49030021000 |
US $10.57 |
||
|
24
|
24
0912060208 Ah screw din0912-m 6x20 ss04 |
0912060208 |
US $4.10 |
||
|
25
|
25
0888030050 Woodruff Key Din6888-3X5X1304 |
0888030050 |
US $2.60 |
||
|
35
|
35
0023060123 Collar screw m6x12 txTX |
0023060123 |
US $0.87 |
||
|
36
|
36
0025060166 Hh collar screw m6x16 tx30TX30 |
0025060166 |
US $2.23 |
||
|
50
|
50
0015060253
Hh Collar Screw M6X25 Tx30
WS=8 |
0015060253 |
— | ||
| replacement | |||||
|
50
|
50
0025060256 Hh collar screw m6x25 tx30WS=8 |
0025060256 |
US $2.45 |
||
|
51
|
51
0015060403
Hh Collar Screw M6X40 Tx30
WS=8 |
0015060403 |
— | ||
| replacement | |||||
|
51
|
51
0025060406 Hh collar screw m6x40 tx30WS=8 |
0025060406 |
US $2.23 |
||
