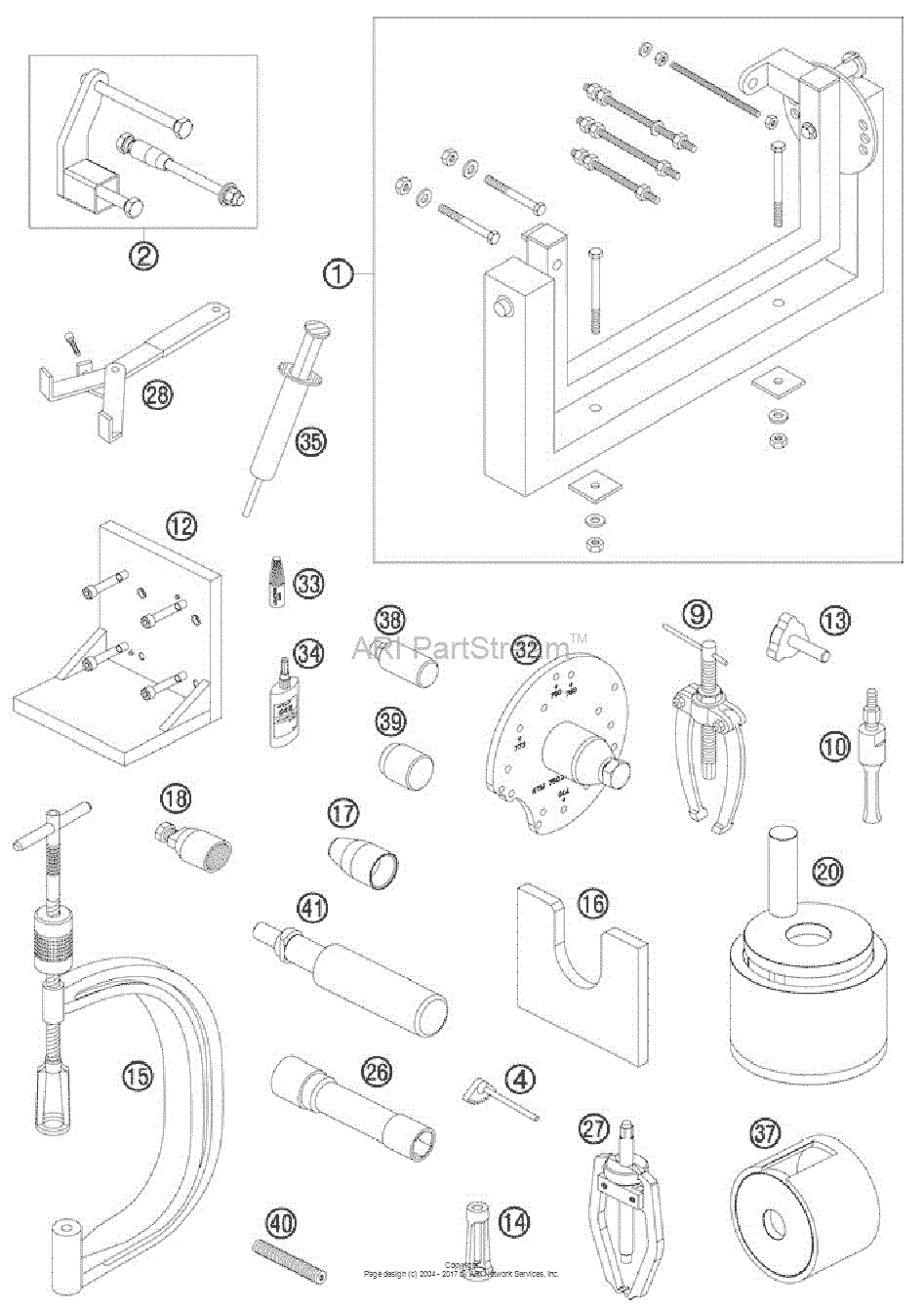

Special Tools Diagram KTM 450 450 EXC-R
- Year
- 2008
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 EXC-R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56012001000 Assy support (without holder)'96 |
56012001000 |
US $983.89 |
||
|
2
|
2
78029002000 Support cpl.'96 |
78029002000 |
US $80.46 |
||
|
4
|
4
80029004000 Gear segment cpl. 0404 |
80029004000 |
US $52.04 |
||
|
9
|
9
15112017000 Bushing extractor04 |
15112017000 |
US $144.77 |
||
|
10
|
10
15112018100 Intern.bear.puller 18-23 mm04 |
15112018100 |
US $227.53 |
||
|
10
|
10
60029018000 Intern.bear.puller 28 mm04 |
60029018000 |
US $153.17 |
||
|
12
|
12
75029050000 On tensioner pl. cylinder head04 |
75029050000 |
US $211.96 |
||
|
13
|
13
75029051000 Press out punch cpl.04 |
75029051000 |
US $33.63 |
||
|
14
|
14
78029060000 Valve spring tension applicat.04 |
78029060000 |
US $85.12 |
||
|
15
|
15
59029019000 Valve spring lever04 |
59029019000 |
US $374.58 |
||
|
16
|
16
78029009000
Separator plate crankshaft
04 |
78029009000 |
— | ||
| replacement | |||||
|
16
|
16
78029009100 Separator plate crankshaft04 |
78029009100 |
US $180.01 |
||
|
17
|
17
78029005000 Mounting sleeve ssr cs04 |
78029005000 |
US $28.07 |
||
|
18
|
18
58012009000 Flywheel Extractor04 |
58012009000 |
US $41.55 |
||
|
20
|
20
75029047000 Press. tool f. cranks. cpl.04 |
75029047000 |
US $671.30 |
||
|
26
|
26
75029172000 Spark plug wrench04 |
75029172000 |
US $59.70 |
||
|
27
|
27
78029033000
Puller
04 |
78029033000 |
— | ||
|
28
|
28
51129003000 Clutch holder04 |
51129003000 |
US $223.91 |
||
|
32
|
32
75029048000 Casing Dismounting Tool07 |
75029048000 |
US $142.26 |
||
| replacement | |||||
|
32
|
32
75029048100 Housing separating tool07 |
75029048100 |
US $99.96 |
||
|
33
|
33
6899785 Loctite 243 Blue 6Ccm(As Required) |
6899785 |
US $40.61 |
||
|
34
|
34
58429059000
Loctite 648 Green 20Ml
(As Required) |
58429059000 |
— | ||
|
35
|
35
58429059200 Loctite 5910 50Ml(As Required) |
58429059200 |
US $40.61 |
||
|
37
|
37
78029008000 Press. tool f. crankshaft(As Required) |
78029008000 |
US $457.16 |
||
|
38
|
38
75029044020 Press punch camshaft bear. sm.(As Required) |
75029044020 |
US $30.72 |
||
|
39
|
39
75029044010 Press punch camsh. bear. large(As Required) |
75029044010 |
US $30.82 |
||
|
40
|
40
0113080802 Engine blocking screw(As Required) |
0113080802 |
US $11.14 |
||
|
41
|
41
77329030100 Plug In Fuse Piston Pin(As Required) |
77329030100 |
US $54.23 |
||
