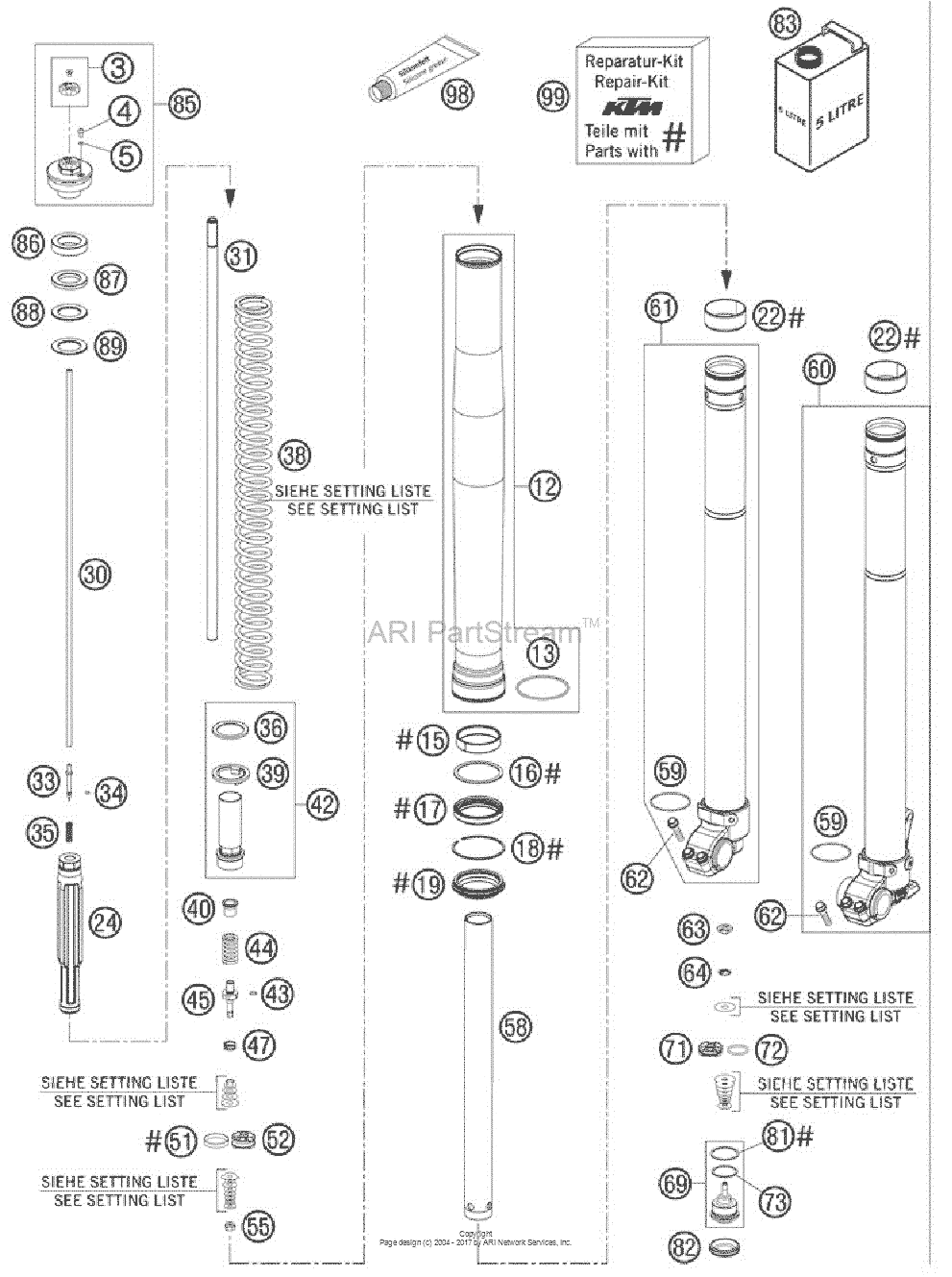

Front Fork, Disassembled Diagram KTM 450 450 EXC
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 EXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
48600564S Setting knob + screw02 |
48600564S |
US $33.61 |
||
|
4
|
4
48600058 Vent screw m4x602 |
48600058 |
US $2.09 |
||
|
5
|
5
48600009 O-ring nbr 3,7x1,602 |
48600009 |
US $0.90 |
||
|
12
|
12
48600492E
Outer Tube L577 D54/60Mm 2L Bl
02 |
48600492E |
— | ||
| replacement | |||||
|
12
|
12
48600693 Outer tube l577 d54/60mm 2l bl02 |
48600693 |
US $443.34 |
||
|
13
|
13
48600016 Guiding ring d=58mm02 |
48600016 |
US $5.34 |
||
|
15
|
15
48600429 Du-bush d48xd52x12ddl0202 |
48600429 |
US $36.48 |
||
| replacement | |||||
|
15
|
15
48601009 Guiding Bush 48X52X12 R1102 |
48601009 |
US $13.23 |
||
|
16
|
16
48600013 Support ring 50 x 57,6 x 1,502 |
48600013 |
US $11.37 |
||
|
17
|
17
48600399
Oil seal ring 48x57,8x9,5
02 |
48600399 |
— | ||
|
18
|
18
48600070 Lock washer sb5802 |
48600070 |
US $2.35 |
||
|
19
|
19
48600400
Dust Seal
02 |
48600400 |
— | ||
| replacement | |||||
|
19
|
19
48600816 Dust seal02 |
48600816 |
US $27.03 |
||
|
22
|
22
48600428 Guiding Bush 47X49X20 R1102 |
48600428 |
US $36.48 |
||
| replacement | |||||
|
22
|
22
48601008 Guiding Bush 47X49X20 R1102 |
48601008 |
US $13.23 |
||
|
24
|
24
48600557S Hydr.stop l=200 d=31,9 cpl. 0707 |
48600557S |
US $43.79 |
||
|
30
|
30
48600559 Adjusting tube l=520 0707 |
48600559 |
US $40 |
||
|
31
|
31
48600568 Piston rod d=12 l=554 alu07 |
48600568 |
US $133.09 |
||
|
33
|
33
48600277 Adjuster needle 0707 |
48600277 |
US $9.33 |
||
|
34
|
34
48600298 O-ring 2x1,5 nbr07 |
48600298 |
US $4.28 |
||
|
35
|
35
48600444 Rebound spring c=4n/mm07 |
48600444 |
US $3.52 |
||
|
36
|
36
48600113 Washer 32x42x2,507 |
48600113 |
US $11.58 |
||
|
38
|
38
91410012S Spring 3,8n/mm set d=4,9mm(As Required) |
91410012S |
US $223.13 |
||
|
38
|
38
91410013S Spring 4,0n/mm set d=5,0mm(As Required) |
91410013S |
US $223.13 |
||
|
38
|
38
91410014S Spring 4,2n/mm set d=5,0mm(As Required) |
91410014S |
US $223.13 |
||
|
38
|
38
91410015S Spring 4,4n/mm set d=5,1mm(As Required) |
91410015S |
US $223.13 |
||
|
38
|
38
91410016S Spring 4,6n/mm set(As Required) |
91410016S |
US $223.13 |
||
|
39
|
39
48600021 Interm. ring 26,2 x 43 x 3(As Required) |
48600021 |
US $16.59 |
||
|
40
|
40
48600525 Guiding bush rebound spring(As Required) |
48600525 |
US $24.72 |
||
|
42
|
42
48600556S Screw sleeve m29,3x1 l=90 cpl.(As Required) |
48600556S |
US $37.38 |
||
|
43
|
43
48600299 O-ring 6x1,2 nbr(As Required) |
48600299 |
US $3.52 |
||
|
44
|
44
48600511 Rebound spring l=32 c=17(As Required) |
48600511 |
US $7.62 |
||
| replacement | |||||
|
44
|
44
48600511S Rebound Spring L32 C17 Cpl(As Required) |
48600511S |
US $4.01 |
||
|
45
|
45
48600513 Tap rebound 0707 |
48600513 |
US $32.69 |
||
|
47
|
47
35480377 Spring check valve d=0,507 |
35480377 |
US $2.53 |
||
|
51
|
51
48600060 Piston ring 5x1x8407 |
48600060 |
US $6 |
||
|
52
|
52
48600042 Piston rebound d=27,707 |
48600042 |
US $48.96 |
||
|
55
|
55
40540486 Nut m6x0,5 rebound07 |
40540486 |
US $5.20 |
||
|
58
|
58
48600081 Tube 29,3x1x390 d=8,5mm07 |
48600081 |
US $119.51 |
||
|
59
|
59
48600048 O-ring nbr 46 x 207 |
48600048 |
US $1.94 |
||
|
60
|
60
48600237S1 Axle clamp l/s + tube cpl. 0707 |
48600237S1 |
US $530.59 |
||
| replacement | |||||
|
60
|
60
48600860SA2 Axle Clamp L/s + Tube Cpl07 |
48600860SA2 |
US $426.75 |
||
|
61
|
61
48600238S1 Axle clamp r/s + tube cpl. 0707 |
48600238S1 |
US $576.33 |
||
| replacement | |||||
|
61
|
61
48600861SA1 AXLE CLAMP R/S + TUBE CPL.07 |
48600861SA1 |
US $390.42 |
||
|
62
|
62
0015080253
H H Collar Screw
WS=10 |
0015080253 |
— | ||
| replacement | |||||
|
62
|
62
0025080256 Hh Collar Screw M8X25 Tx40WS=10 |
0025080256 |
US $4.10 |
||
|
63
|
63
48600163 Check valve nut m6x0,5 d=2WS=10 |
48600163 |
US $13.80 |
||
|
64
|
64
48600202 Spring check valve d=0,7WS=10 |
48600202 |
US $2.28 |
||
|
69
|
69
48600586S
Tap compression cpl. 07
07 |
48600586S |
— | ||
| replacement | |||||
|
69
|
69
48600586E Tap Compression Cpl07 |
48600586E |
US $96.46 |
||
|
71
|
71
48600047 Piston compression d=27,907 |
48600047 |
US $49.96 |
||
|
72
|
72
46811499 O-ring nbr 21x207 |
46811499 |
US $1.48 |
||
|
73
|
73
35480320 O-ring nbr 24x207 |
35480320 |
US $2.70 |
||
|
81
|
81
48600004 Copper washer 29,5x33,5x107 |
48600004 |
US $1.65 |
||
|
82
|
82
48600141 Rubber cap d=35mm07 |
48600141 |
US $3.42 |
||
|
83
|
83
48600401S1 Fork Oil Sae4 5L2005 |
48600401S1 |
US $273.85 |
||
| replacement | |||||
|
83
|
83
48601166S1 Fork Oil Sae4 5L2005 |
48601166S1 |
US $218.08 |
||
|
85
|
85
48600558S Screw cap m51x1,5 cpl. 0707 |
48600558S |
US $77.67 |
||
|
86
|
86
48600038 Spacer 42x26,5x1007 |
48600038 |
US $8.04 |
||
|
87
|
87
48600037 Spacer 42x26,5x507 |
48600037 |
US $6.41 |
||
|
88
|
88
48600036 Spacer 42x26,5x2,507 |
48600036 |
US $6.48 |
||
|
89
|
89
48600053 Spacer 42X26,5X1,507 |
48600053 |
US $7.09 |
||
|
98
|
98
T511 Silicone grease f. dust stri07 |
T511 |
US $132.91 |
||
|
99
|
99
R14013 Repair-kit exc front fork06/0706/07 |
R14013 |
US $123.25 |
||
