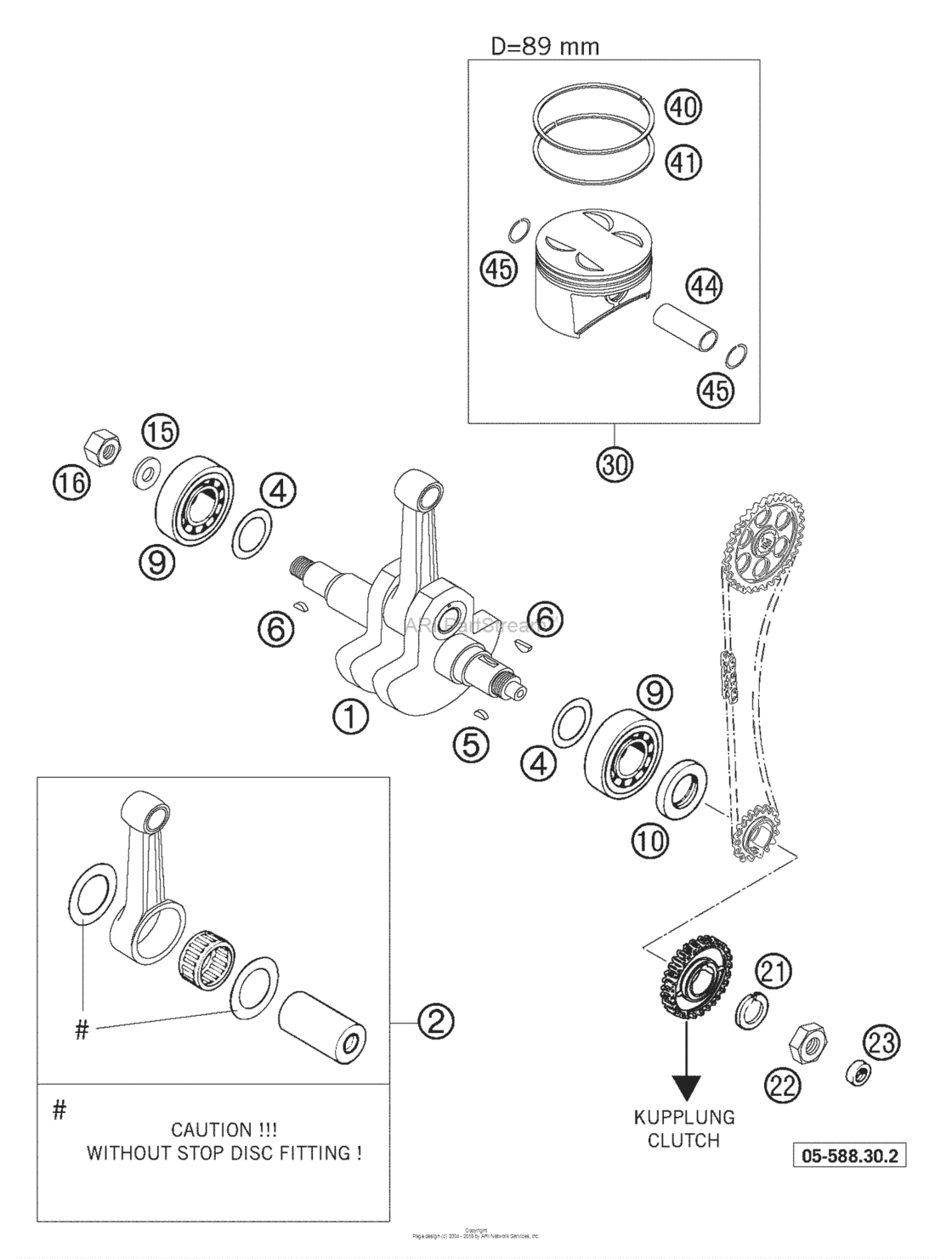

Crankshaft, Piston Diagram KTM 450 450 Rallye
- Year
- 2005
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 Rallye
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58830018000
Crankshaft Cpl. 450 Rallye 05
SIDEWARDS CLOSED |
58830018000 |
— | ||
|
2
|
2
58830015044
Connect. Rod Rep.set 450 Ral
SIDEWARDS CLOSED |
58830015044 |
— | ||
|
4
|
4
56530081000 Shim washer 36x48x0,10SIDEWARDS CLOSED |
56530081000 |
US $4.10 |
||
|
4
|
4
56530081100 Shim washer 36x48x0,15SIDEWARDS CLOSED |
56530081100 |
US $1.28 |
||
|
4
|
4
56530081300 Shim washer 36x48x0,30SIDEWARDS CLOSED |
56530081300 |
US $1.28 |
||
|
5
|
5
0888030050 Woodruff Key Din6888-3X5X13SIDEWARDS CLOSED |
0888030050 |
US $2.60 |
||
|
6
|
6
6946005 Woodruff Key 5X6,5 HardedSIDEWARDS CLOSED |
6946005 |
US $0.92 |
||
|
9
|
9
56530123000 Cyl.roller bear. nj 207 ecp c3SIDEWARDS CLOSED |
56530123000 |
US $92.29 |
||
|
10
|
10
0760304071
Shaft Seal Ring 30X40X7 Bsl
SIDEWARDS CLOSED |
0760304071 |
— | ||
|
15
|
15
58330095000 Steel washer 16 x 30 x 3SIDEWARDS CLOSED |
58330095000 |
US $3.67 |
||
|
16
|
16
58430028000
Hex nut m16x1,25 l/s
SIDEWARDS CLOSED |
58430028000 |
— | ||
|
21
|
21
58030019000 Locking ring vsk 20SIDEWARDS CLOSED |
58030019000 |
US $1.70 |
||
|
22
|
22
59030029000 Hh nut m20x1,5 ws=27 rightSIDEWARDS CLOSED |
59030029000 |
US $7.62 |
||
|
23
|
23
0760122270 Shaft Seal Ring 12 X 22 X 7 BSIDEWARDS CLOSED |
0760122270 |
US $15.86 |
||
|
30
|
30
58830007000
Piston D=89 05
SIDEWARDS CLOSED |
58830007000 |
— | ||
|
40
|
40
57530032000 Rectangular ring 89mmSIDEWARDS CLOSED |
57530032000 |
US $46.75 |
||
|
41
|
41
59530031000 Oil scraper ring 89/81,5x3SIDEWARDS CLOSED |
59530031000 |
US $21.44 |
||
|
44
|
44
58830033000
Piston Pin 05
SIDEWARDS CLOSED |
58830033000 |
— | ||
|
45
|
45
58830074000
Circlip 20 X 1,4
SIDEWARDS CLOSED |
58830074000 |
— |
