Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 77332001174 Outer Clutch Cpl 2006	77332001174	US $263.23
2	2 78132002008 Clutch Hub 2006	78132002008	—
	replacement
2	2 78132002300 Clutch Hub 2006	78132002300	US $233.27
3	3 77332103000 Pressure Plate 2006	77332103000	US $50.59
4	4 78132002111 Hub 2006	78132002111	US $72.91
5	5 78132004000 Sleeve 7,5X33.4 2006	78132004000	US $2.87
6	6 78132025100 Damping Rubber 2006	78132025100	US $31.20 ~~US $31.20~~
7	7 78132013000 Washer 112X118X1.5 2006	78132013000	US $9.08
8	8 78132005000 Belleville Spring 71X115X1,5 I 2006	78132005000	US $32.13
9	9 59032010200 Intermediate Disc 1,4Mm 2002 2002	59032010200	US $9.96
10	10 59032010100 Intermediate disc 1mm 2002 2002	59032010100	US $8.94
11	11 59032011100 Lining disc 2mm 04 04	59032011100	US $24.02
	replacement
11	11 79532011000 Lining Disc 1,95Mm 04	79532011000	US $24.02
12	12 78132006100 Spring Ring 04	78132006100	US $39.70
13	13 77332015100 Inner ring 04	77332015100	US $23.51
18	18 56532018000 Lock Washer 04	56532018000	US $4.73
19	19 0936181505 Hexagon Nut Din0936-M18X1,5 R 04	0936181505	US $7.60
20	20 77232009100 Washer 21,8 x 37 x 3 04	77232009100	US $8.53
23	23 77332023129 Primary gear 04	77332023129	US $85.73
24	24 77330055110 Drive wheel agzr ks z=32 04	77330055110	US $138.77
29	29 0770380020 O-Ring 38,00X2,00 Nbr 70 Sh 04	0770380020	US $2.52
30	30 77332061044 Output cylinder cpl. 04	77332061044	US $276.98
36	36 77332066000 Piston cpl. 04	77332066000	US $77.67
53	53 77332054100 Push rod 07 07	77332054100	US $12.61
54	54 77332057100 Pressure piece 07	77332057100	US $13.02
55	55 77332057144 Pressure piece cpl. 07	77332057144	US $21.03
71	71 0025060256 Hh collar screw m6x25 tx30 TX30	0025060256	US $2.45
72	72 0025050166 Hh collar screw m5x16 tx30 TX30	0025050166	US $2.60
73	73 78132010033 Clutch Disc Package Not Available TX30	78132010033	US $161.77
75	75 50329050000 Vent Injektion Hydr. Clutch TX30	50329050000	US $50.78
87	87 42013226000 Cu-Seal Ring Din7603-10X16X1 TX30	42013226000	US $4.10
88	88 62513020000 Bleeder Screw Cpl. 05 05	62513020000	US $30.16
95	95 56532095000 Needle bearing k26x30x22zw.kse 05	56532095000	US $21.51
97	97 54637097200 Axial Needle Bearing Axk 1226 05	54637097200	US $10.06
98	98 54637098200 Axial washer as1226 12x26x1 05	54637098200	US $5.02
99	99 0993012000 Circlip Din7993-Rw12 05	0993012000	US $2.11

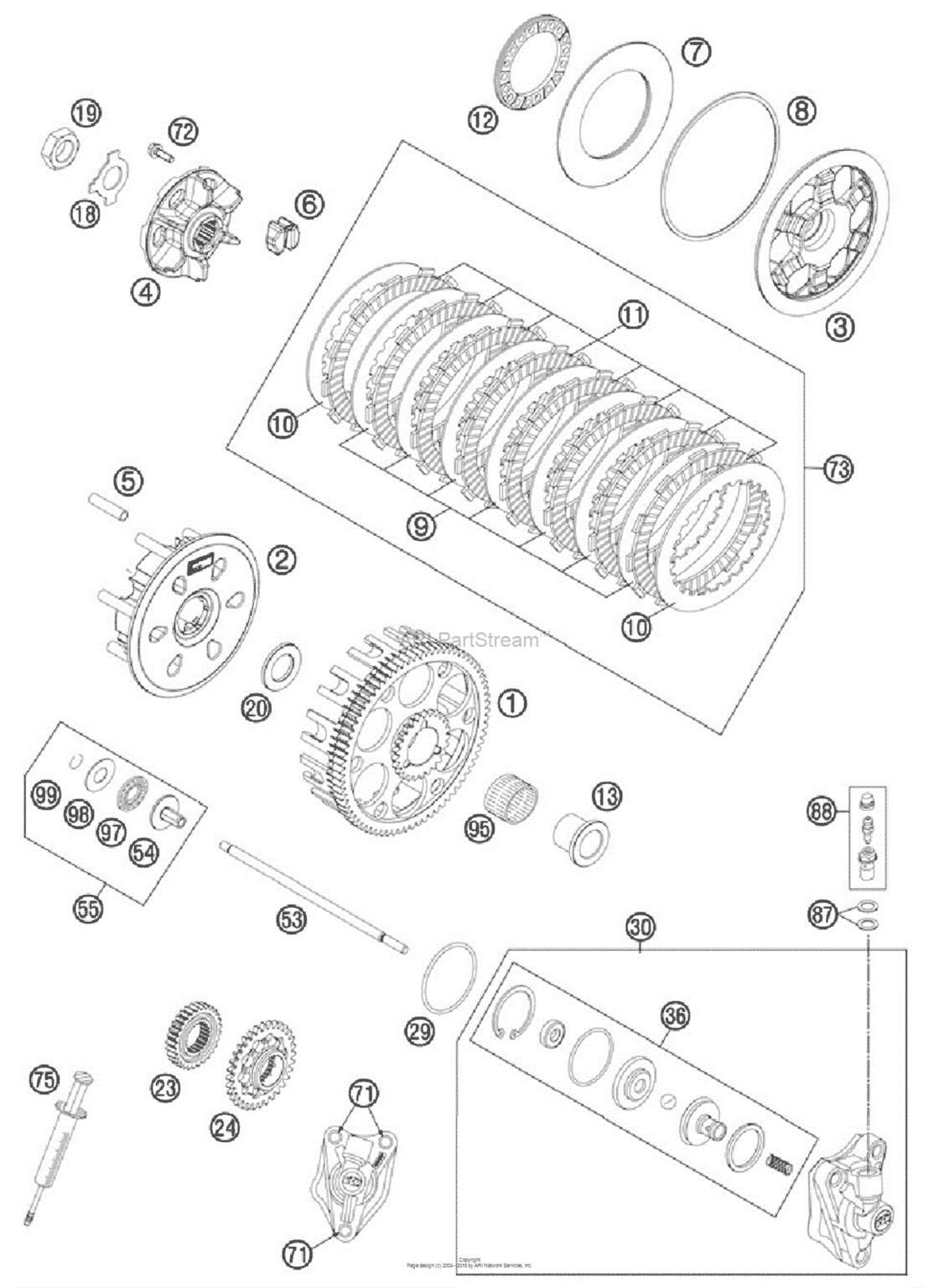

Clutch Diagram KTM 450 450 SX-F US/EU 18094088-940071

Clutch Diagram KTM 450 450 SX-F US/EU 18094088-940071
