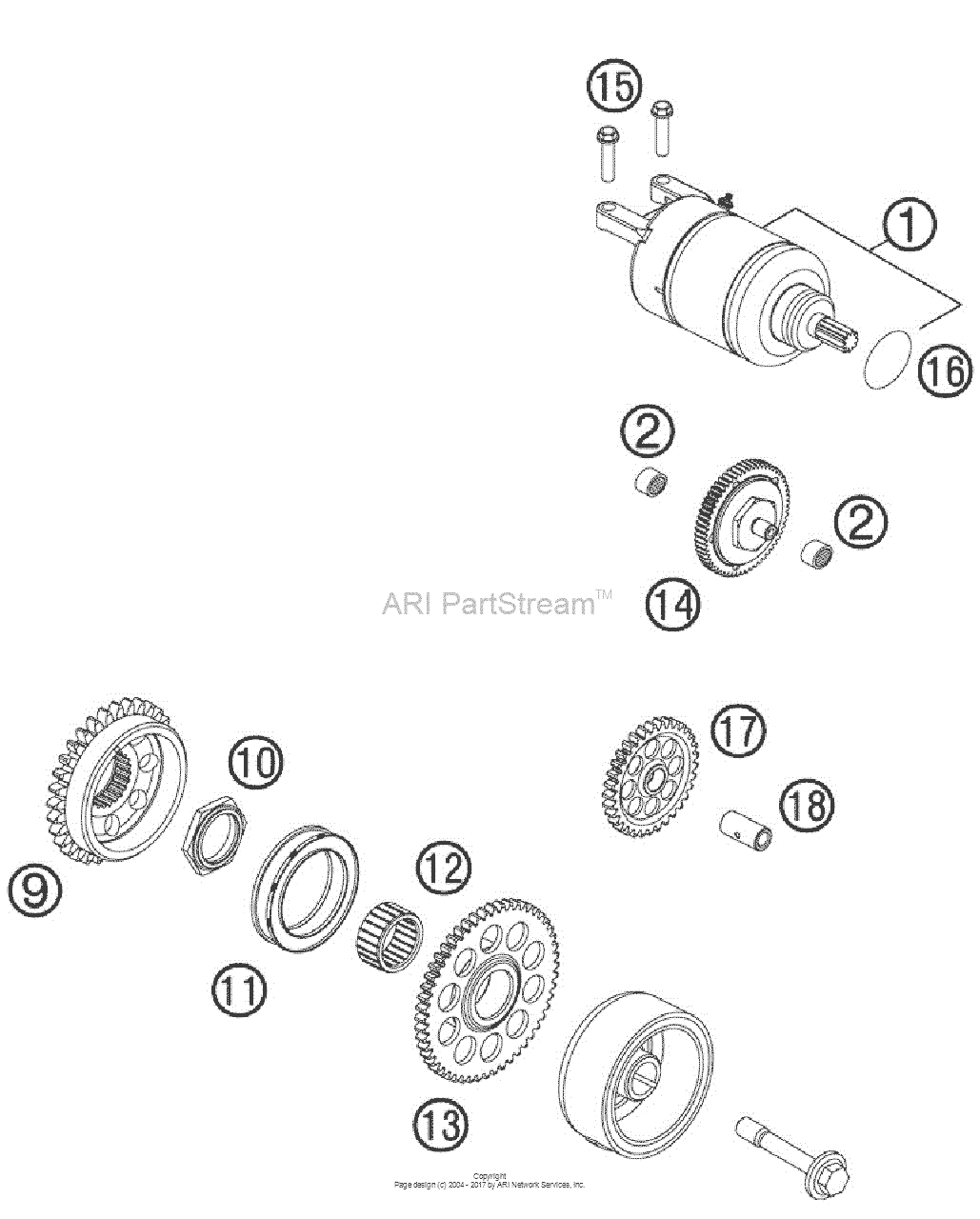

Electric Starter Diagram KTM 450 450 SX-F
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 SX-F
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77340001000 E-starter engine cpl. 0707 |
77340001000 |
US $261.07 |
||
|
2
|
2
0618081210 Needle Bush Hk 0810 Din 61807 |
0618081210 |
US $3.67 |
||
|
9
|
9
77330055160
Drive wheel agzr ks z=32
07 |
77330055160 |
— | ||
| replacement | |||||
|
9
|
9
77330955160 Drive wheel agzr 505 0707 |
77330955160 |
US $205.56 |
||
|
10
|
10
77330029000 Collar nut m27x107 |
77330029000 |
US $9.32 |
||
|
11
|
11
H25015301 Free wheel clutch mechanism 9797 |
H25015301 |
US $175.51 |
||
|
12
|
12
0405253216 Needle bear. k25x32x1697 |
0405253216 |
US $13.77 |
||
|
13
|
13
77340015100 Starting gear z=5297 |
77340015100 |
US $120.43 |
||
|
14
|
14
77340016100 Torque limiter cpl.97 |
77340016100 |
US $160.79 |
||
|
15
|
15
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
16
|
16
0770250030 O-ring 25,00x3,00 nbr 7070 |
0770250030 |
US $4.35 |
||
|
17
|
17
77340022100 Intermediate starting gear70 |
77340022100 |
US $39 |
||
|
18
|
18
77340028000 Bearing bolt70 |
77340028000 |
US $10.29 |
||
