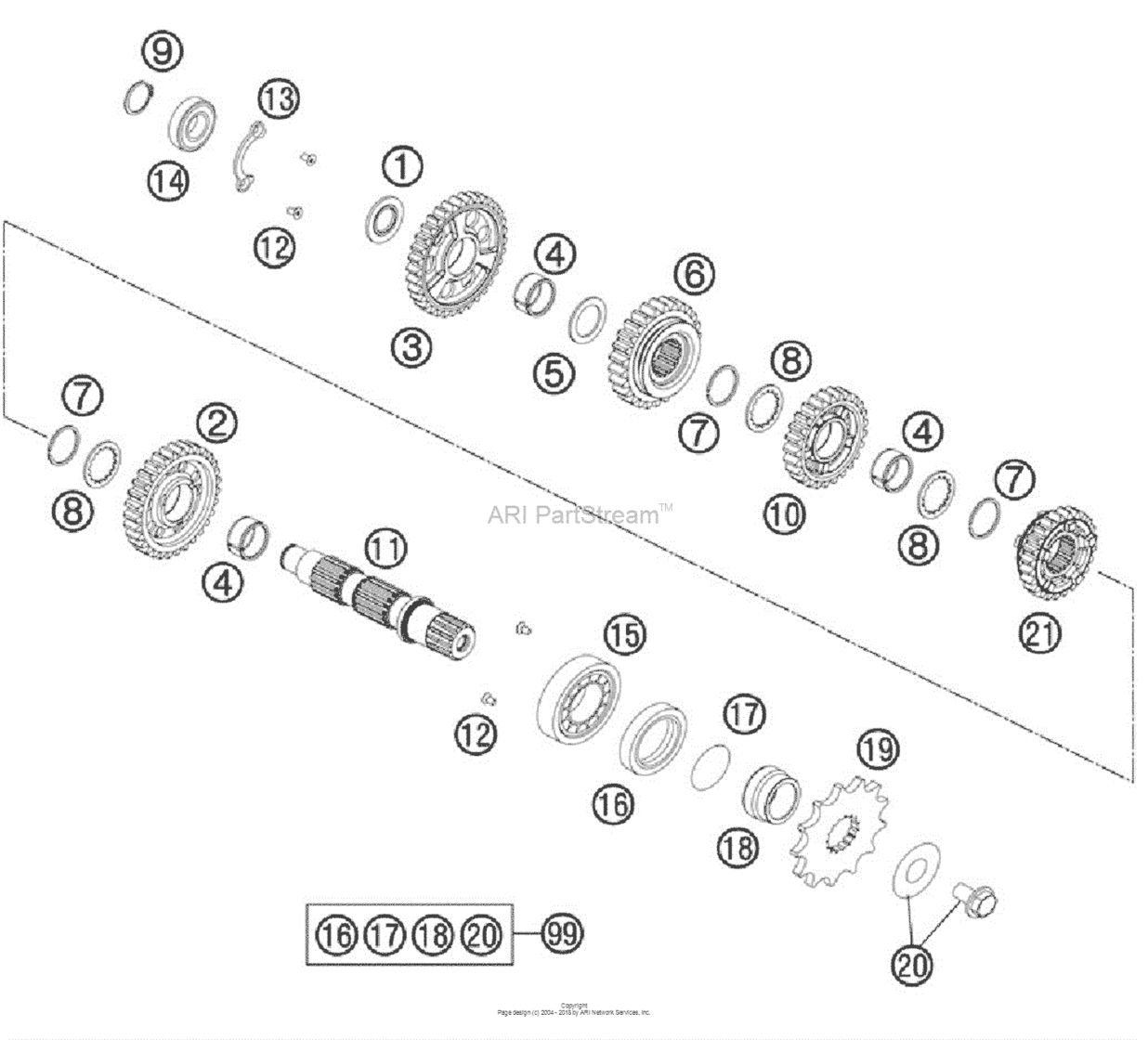

Transmission Ii - Countershaft Diagram KTM 450 450 SX-F
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 SX-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77333045000 Stop disc 17,1x32x2,670 |
77333045000 |
US $4.28 |
||
|
2
|
2
77333312000 Idler gear 2.g70 |
77333312000 |
US $102.92 |
||
|
3
|
3
77333311000 Idler gear 1.g70 |
77333311000 |
US $99.60 |
||
|
4
|
4
0405222613 Needle Bear. K 22X26X13 Tn70 |
0405222613 |
US $9.52 |
||
|
5
|
5
77333044000 Stop disc 22,2x32x1,570 |
77333044000 |
US $4.28 |
||
|
6
|
6
77333313000 Sliding gear 3rd g70 |
77333313000 |
US $110.62 |
||
|
7
|
7
0417025000 Circlip Sw2570 |
0417025000 |
US $2.84 |
||
|
8
|
8
78033033000 Stop disk 23 x 32 x 1,570 |
78033033000 |
US $2.87 |
||
|
9
|
9
0471170015 Circlip din 0471-17x1, 570 |
0471170015 |
US $0.66 |
||
|
10
|
10
77333314000 Idler gear 4th. g.70 |
77333314000 |
US $96.66 |
||
|
11
|
11
77333310000 Countershaft70 |
77333310000 |
US $108.68 |
||
|
12
|
12
0019050103 Int. torx flat head m 5x10 8.870 |
0019050103 |
US $0.82 |
||
| replacement | |||||
|
12
|
12
0019050106S Int. Torx Flat Head M5X10 10.970 |
0019050106S |
US $0.27 |
||
|
13
|
13
77333024100 Bushing retaining plate70 |
77333024100 |
US $3.13 |
||
|
14
|
14
0625062036 Ball bearing 6203 rsh c370 |
0625062036 |
US $16.12 |
||
|
15
|
15
0402255215 Cyl.roller bearing nup205e c370 |
0402255215 |
US $81.55 |
||
|
16
|
16
0760354771 Shaft seal ring 35x47x7 tc70 |
0760354771 |
US $11.19 |
||
|
17
|
17
0770250015 O-ring 25,00x1,50 nbr 7070 |
0770250015 |
US $0.24 |
||
|
18
|
18
77333219000 Spacer bushing70 |
77333219000 |
US $17.80 |
||
|
19
|
19
50033029013
Sprocket 13T
(As required) |
50033029013 |
— | ||
| replacement | |||||
|
19
|
19
79233029013 Sprocket 13T(As required) |
79233029013 |
US $33.08 |
||
|
19
|
19
50033029014
Front sprocket 14-t
(As required) |
50033029014 |
— | ||
| replacement | |||||
|
19
|
19
79233029014 Sprocket 14T(As required) |
79233029014 |
US $34.80 |
||
|
19
|
19
50033029015 Front sprocket 15-t(As required) |
50033029015 |
US $33.59 |
||
|
20
|
20
59033034044 Screw 10.9+Spring Washer(As required) |
59033034044 |
US $9.01 |
||
|
21
|
21
77333315000 Sliding gear 5td g(As required) |
77333315000 |
US $99.69 |
||
|
99
|
99
00050000941 Counter Shaft Rep.kit 4 Stroke(As required) |
00050000941 |
US $36.26 |
||
