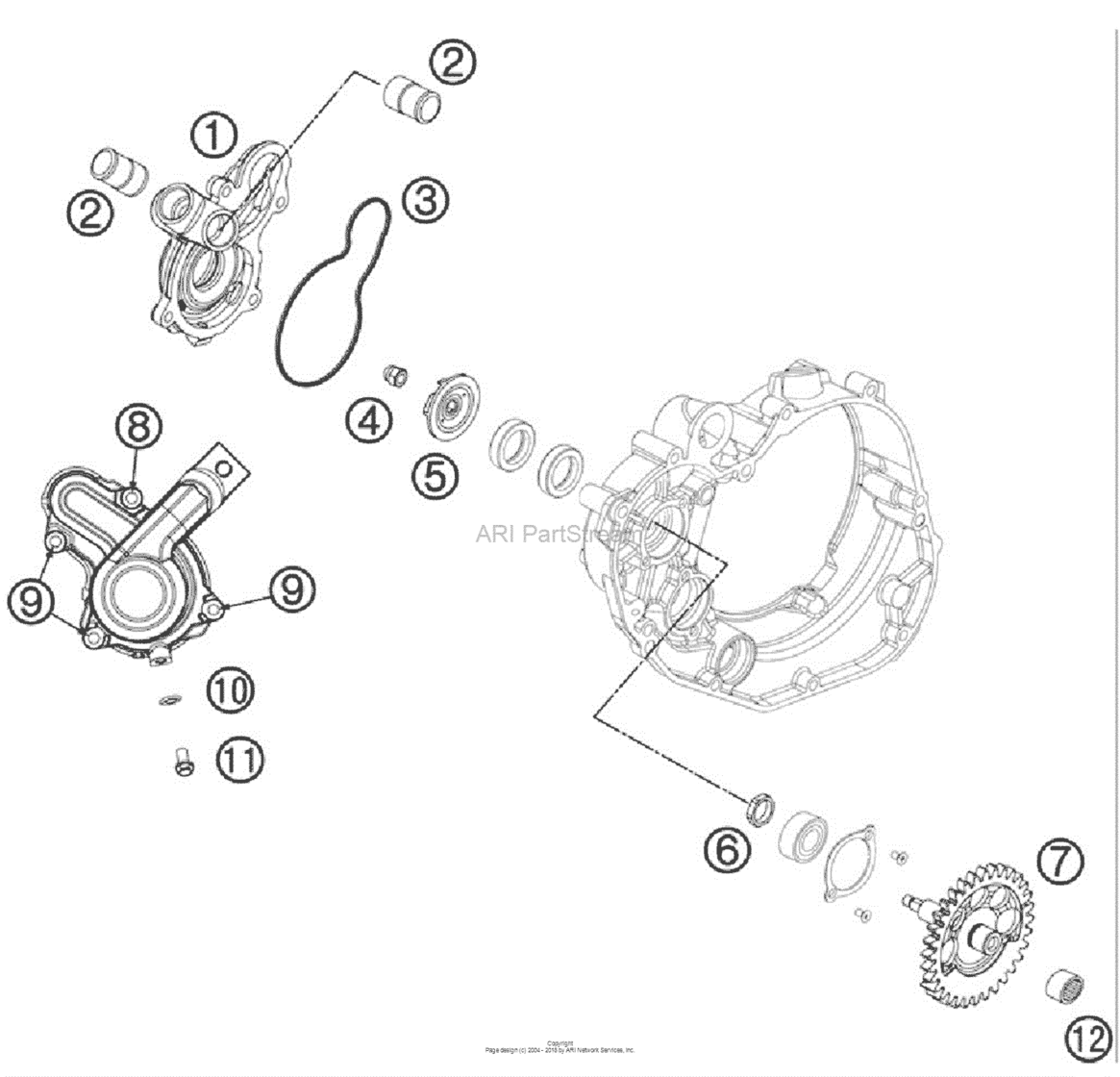

Water Pump Diagram KTM 450 450 SX-F
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 SX-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7733505210015 Water-pump cover 0909 Not Available |
7733505210015 |
US $94.89 |
||
|
2
|
2
58030010200 Screw In Nozzle M20X1,509 Not Available |
58030010200 |
US $8.82 |
||
|
3
|
3
77335053000 Water-pump gasket 0606 |
77335053000 |
US $6.39 |
||
|
4
|
4
61230045000 Cap Nut M6 Stainless Steel06 |
61230045000 |
US $0.90 |
||
|
5
|
5
77335055100 Water-pump wheel 0707 |
77335055100 |
US $3.13 |
||
|
6
|
6
77330056050 Nut m14 x 1 for balancer . 0606 |
77330056050 |
US $7.57 |
||
|
7
|
7
77330056200 Balancer gear ks 32-t 0707 |
77330056200 |
US $231.73 |
||
|
8
|
8
0025060556 Hh collar screw m6x55 tx30TX30 |
0025060556 |
US $2.52 |
||
|
9
|
9
0025060166 Hh collar screw m6x16 tx30TX30 |
0025060166 |
US $2.23 |
||
|
10
|
10
0603061001 Cu-Seal Ring Din7603-6X10X1TX30 |
0603061001 |
US $2.64 |
||
|
11
|
11
0025060106 Hh collar screw m6x10 tx30TX30 |
0025060106 |
US $1.58 |
||
|
12
|
12
77335050050 Needle bearing rna 4900TX30 |
77335050050 |
US $25.28 |
