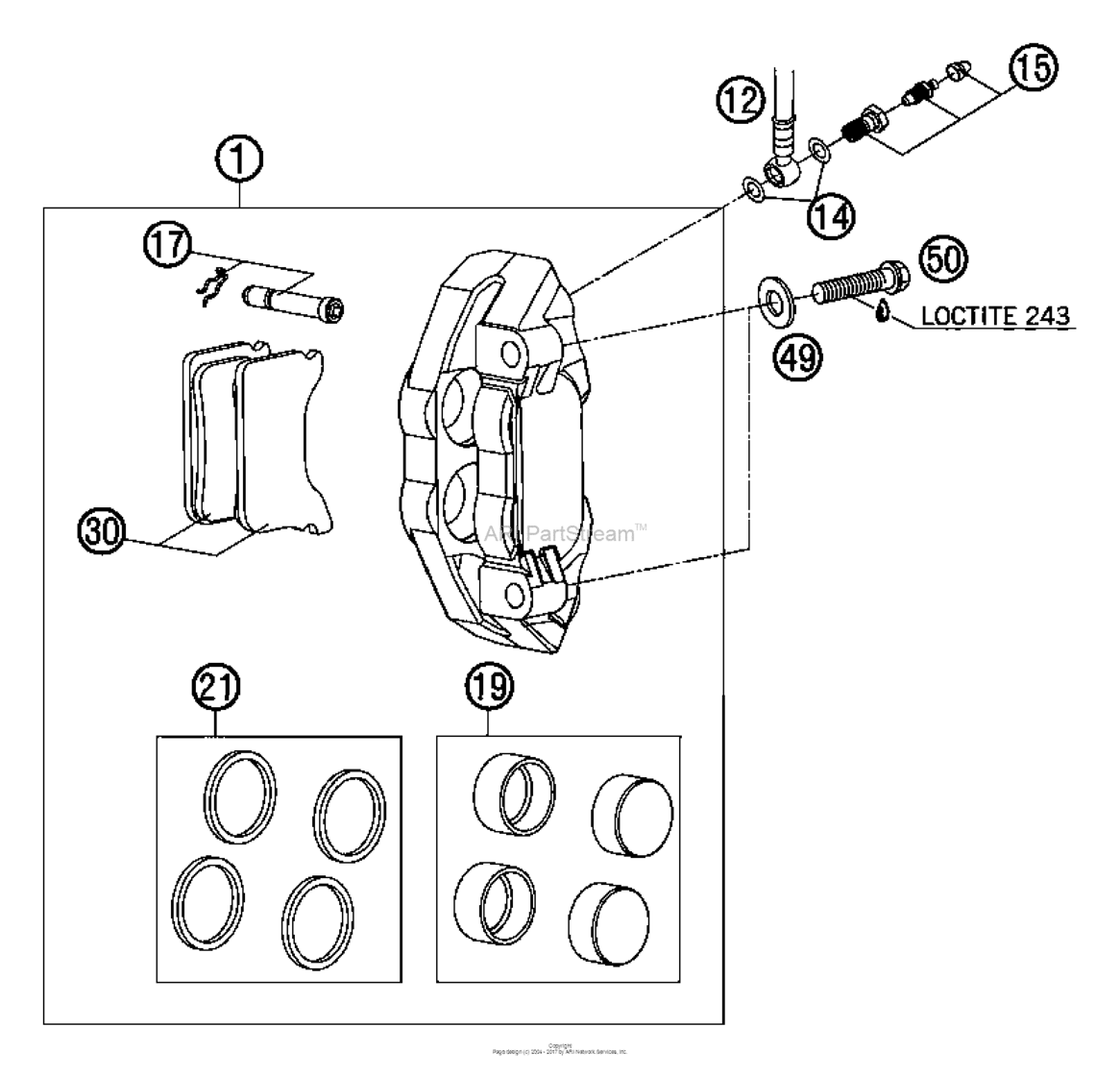

Brake Caliper Front Diagram KTM 450 450 SMR
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 SMR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58613015144 Brake caliper front cpl. 05TX30 |
58613015144 |
US $415.19 |
||
|
12
|
12
58613012100
Brakehose 1175mm 05
TX30 |
58613012100 |
— | ||
|
14
|
14
0603100141 Copper Gasket Din7603-10X14X1TX30 |
0603100141 |
US $2.24 |
||
|
15
|
15
58613013000 Hollow-bleeder screw cpl. 05TX30 |
58613013000 |
US $30.86 |
||
|
17
|
17
58613017000
Bolt cpl. 05
TX30 |
58613017000 |
— | ||
|
19
|
19
58613019000 Piston kit cpl. 05TX30 |
58613019000 |
US $77.11 |
||
|
21
|
21
58613021000
Seal ring kit cpl. 05
TX30 |
58613021000 |
— | ||
|
30
|
30
58613030200
Brake Pad 06
TX30 |
58613030200 |
— | ||
|
30
|
30
58613030300
Brake Pad 06
TX30 |
58613030300 |
— | ||
|
49
|
49
58413049000 Washer 10,2x20x2,5 mm 04TX30 |
58413049000 |
US $2.58 |
||
|
50
|
50
0015100359 Hh collar screw m10x35 ws=13TX30 |
0015100359 |
US $2.62 |
