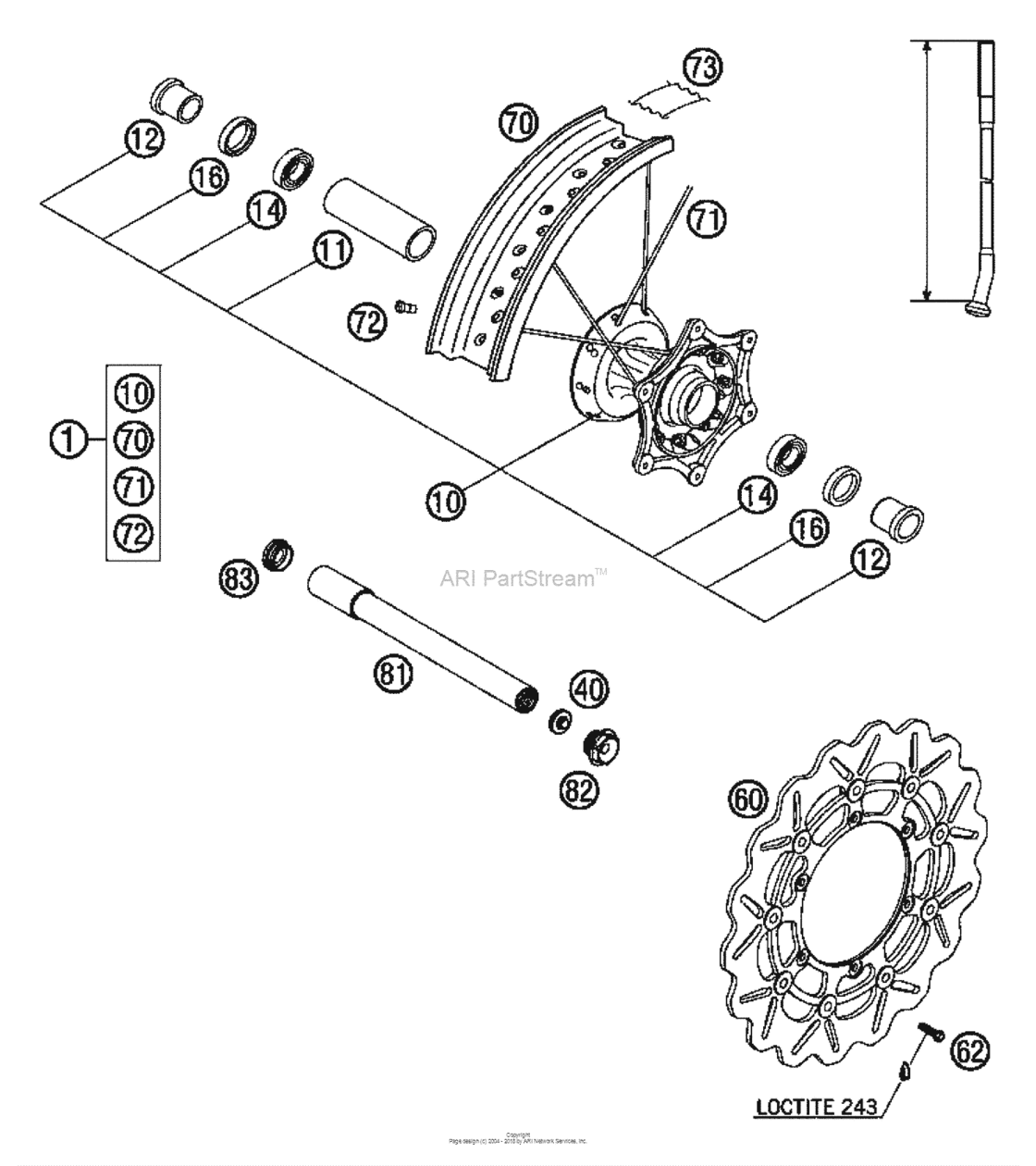

Front Wheel Diagram KTM 450 450 SMR
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 SMR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58409001644
Front Wheel 3,5X17 26Mm
TX30 |
58409001644 |
— | ||
|
10
|
10
5480901004491 Front Hub Cpl. Sx Silver 03TX30 |
5480901004491 |
US $327.57 |
||
|
11
|
11
54809011000 Bea.spacertube 35x2 l=79,4 03TX30 |
54809011000 |
US $23.66 |
||
|
12
|
12
54809012000
Spacer bushing f. fr. wheel 03
TX30 |
54809012000 |
— | ||
| replacement | |||||
|
12
|
12
78009012000 Spacer bushing f. fr. wheel 08TX30 |
78009012000 |
US $27.10 |
||
|
14
|
14
0625069068 Gr.ball Bear.6906 Ddu2Cg23S6NmTX30 |
0625069068 |
US $44.68 |
||
|
16
|
16
0760354771 Shaft seal ring 35x47x7 tcTX30 |
0760354771 |
US $11.19 |
||
|
40
|
40
54809081070 Auxiliary screw front 06TX30 |
54809081070 |
US $6.17 |
||
|
60
|
60
58609060000 Brake Disc Front D=310MmTX30 |
58609060000 |
US $439.21 |
||
| replacement | |||||
|
60
|
60
25009260000 BRAKE DISC FRONT D=310MMTX30 |
25009260000 |
US $392.45 |
||
|
62
|
62
59009062016 Special screw m6x16 ws=8 10.9TX30 |
59009062016 |
US $1.09 |
||
|
70
|
70
58409070000
Front Rim 3.5 X 17 (Silver)
TX30 |
58409070000 |
— | ||
|
71
|
71
50309071175 Spoke m4,5x175-15g 17" ddeTX30 |
50309071175 |
US $4.34 |
||
|
72
|
72
50309072000
Spoke Nipple Quadrax M4,5
TX30 |
50309072000 |
— | ||
| replacement | |||||
|
72
|
72
81210072000 Spoke nipple quadrax m4,5TX30 |
81210072000 |
US $2.79 |
||
|
73
|
73
58309073000 Rim band 17"TX30 |
58309073000 |
US $12.94 |
||
|
81
|
81
54809081000
Wheel Spin.fr. D=26 M24X1,5 07
TX30 |
54809081000 |
— | ||
| replacement | |||||
|
81
|
81
77309081000 Wheel Spin.fr. D=26 M24X1,5 07TX30 |
77309081000 |
US $79.71 |
||
|
82
|
82
54809082000 Spindle screw m24x1,5 ws=27 03TX30 |
54809082000 |
US $10.88 |
||
|
83
|
83
54809081050 Plug bushing ws=27 03TX30 |
54809081050 |
US $8.50 |
||
