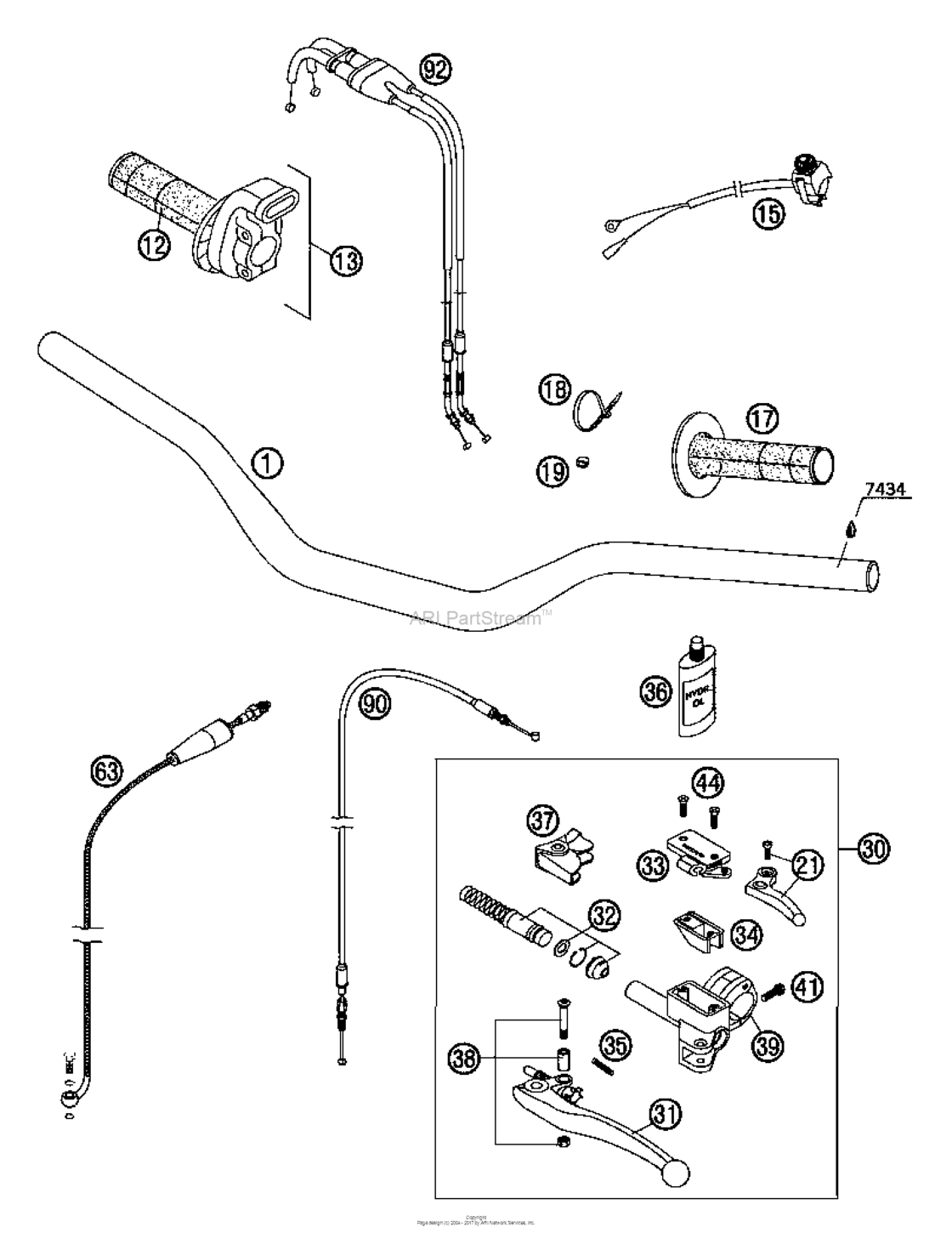

Handlebar Controls Diagram KTM 450 450 SMR
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 SMR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54802001200 Handlebar d=28mm renthal 796TX30 |
54802001200 |
US $205.73 |
||
| replacement | |||||
|
1
|
1
5480210120017 Handlebar D=28MmTX30 |
5480210120017 |
US $160.77 |
||
|
12
|
12
54802013000
Grip-Set Gray/orange 09
Not Available
TX30 |
54802013000 |
— | ||
| replacement | |||||
|
12
|
12
54802021200 Grip-set gray/orange 09TX30 |
54802021200 |
US $28.29 |
||
|
13
|
13
59402010000 Throttle Grip CplTX30 |
59402010000 |
US $73.87 |
||
| replacement | |||||
|
13
|
13
78102010000 Throttle Grip CplTX30 |
78102010000 |
US $71.72 |
||
|
15
|
15
50311089200 Short Circuit Button 02TX30 |
50311089200 |
US $50.97 |
||
|
17
|
17
54802039000
Grip-Set Gray/orange 09
Not Available
TX30 |
54802039000 |
— | ||
| replacement | |||||
|
17
|
17
54802021200 Grip-set gray/orange 09TX30 |
54802021200 |
US $28.29 |
||
|
18
|
18
44011076100 Cable tie 100/2,5mm blackTX30 |
44011076100 |
US $0.39 |
||
| replacement | |||||
|
18
|
18
44011076140 Cable tie 140/2,5mm blackTX30 |
44011076140 |
US $0.29 |
||
|
18
|
18
44011076200 Cable tie 200/3,6mm blackTX30 |
44011076200 |
US $0.39 |
||
|
19
|
19
50301089000 Spacer bushing 6x10x5TX30 |
50301089000 |
US $1.58 |
||
|
21
|
21
59002047000 Lever Cpl. Racing 2000TX30 |
59002047000 |
US $23.60 |
||
|
30
|
30
59002030200 Master cylinder cpl. racing 04TX30 |
59002030200 |
US $345.81 |
||
|
31
|
31
54602031000 Clutch Lever Short Cpl. 2003TX30 |
54602031000 |
US $42.99 |
||
|
31
|
31
59002031000 Clutch Lever Long Cpl. 2003TX30 |
59002031000 |
US $42.99 |
||
|
32
|
32
59002032100 Rep.kit piston 9,0mm rac. 2004TX30 |
59002032100 |
US $65.01 |
||
|
33
|
33
59002033000 Cover hyd.clutch racing 2000TX30 |
59002033000 |
US $41.87 |
||
|
34
|
34
50302034000 Rubber for reservoir '98TX30 |
50302034000 |
US $16.18 |
||
|
35
|
35
59002035000 Spring for clutch lever 03TX30 |
59002035000 |
US $5.46 |
||
|
36
|
36
50302036200 Oil For Hyd. Clutch 100 MlTX30 |
50302036200 |
US $19.23 |
||
|
37
|
37
50302037000 Protect.cap For Lever Perch'98TX30 |
50302037000 |
US $20.74 |
||
|
38
|
38
50302038000 Lever Screw Cpl. 125-200 '98TX30 |
50302038000 |
US $20.35 |
||
|
39
|
39
50302030150 Clamp With Pin 2000TX30 |
50302030150 |
US $34.46 |
||
|
41
|
41
0015060203
Hh Collar Screw M 6X20 Ws=8
TX30 |
0015060203 |
— | ||
| replacement | |||||
|
41
|
41
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
44
|
44
0965040123 Flat head screw din0965-m 4x12TX30 |
0965040123 |
US $0.56 |
||
|
63
|
63
59032063100 Clutch pipe racing 2003TX30 |
59032063100 |
US $89.39 |
||
|
90
|
90
59002094000 Decompr. cable racing 2000TX30 |
59002094000 |
US $25.94 |
||
|
92
|
92
59002091300 Thr.cable"open-close"keihin 02TX30 |
59002091300 |
US $130.34 |
||
