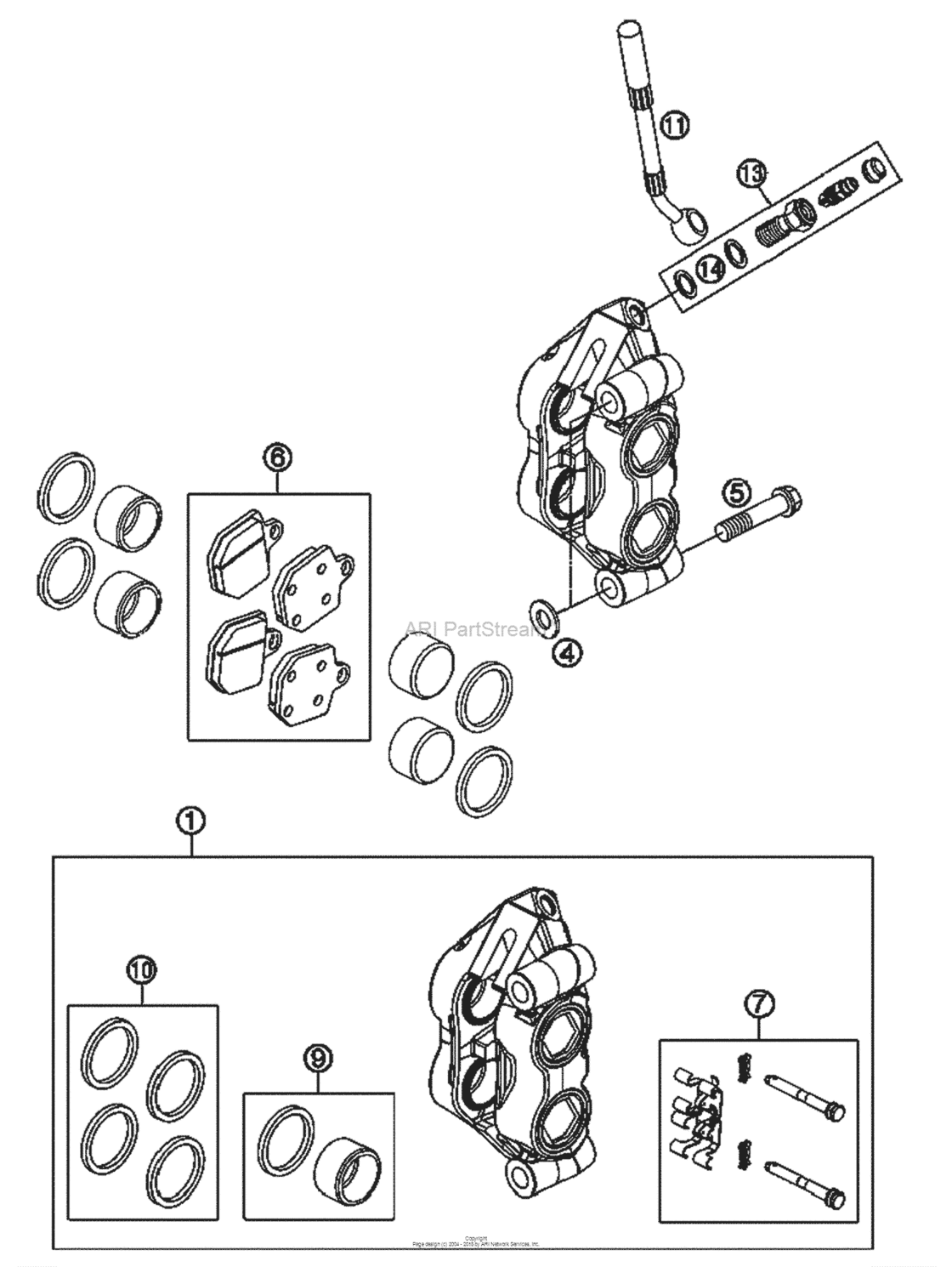

Brake Caliper Front Diagram KTM 450 450 SMR
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 SMR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59413015301 Brake Cal. Fr. - Without PadsWS=6 |
59413015301 |
US $725.73 |
||
|
4
|
4
58413049000 Washer 10,2x20x2,5 mm 0404 |
58413049000 |
US $2.58 |
||
|
5
|
5
0035100559 Ah-collar screw m10x1,25x5504 |
0035100559 |
US $4.35 |
||
| replacement | |||||
|
5
|
5
0035100559S Ah-Collar Screw M10X1,25X55Ss04 |
0035100559S |
US $1.94 |
||
|
6
|
6
81213030000 Brake pads front nsk105hh04 |
81213030000 |
US $184.06 |
||
|
7
|
7
59413018000 Fixing for brake pad 0707 |
59413018000 |
US $42.26 |
||
|
9
|
9
59413083000 Piston with gasket magura 0707 |
59413083000 |
US $30.60 |
||
|
10
|
10
59413021000 Seal ring kit cpl. magura 0707 |
59413021000 |
US $12.72 |
||
|
11
|
11
59413012000 Brakehose front 1160mm 0707 |
59413012000 |
US $106.64 |
||
|
13
|
13
50332062000 Hollow screw cpl. m 10x1 '9898 |
50332062000 |
US $35.33 |
||
|
14
|
14
59413013050 Copper gasket98 |
59413013050 |
US $6.58 |
||
