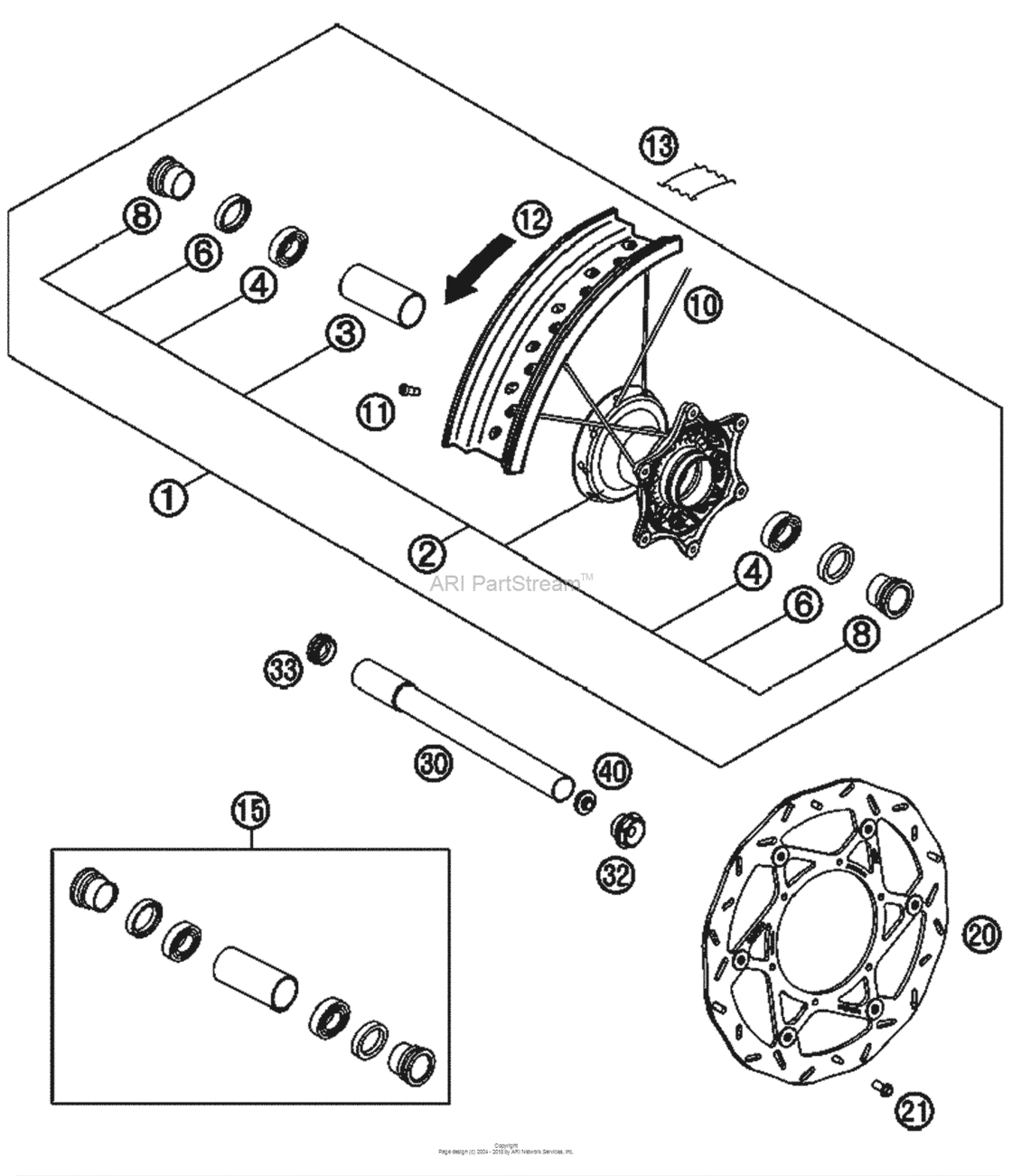

Front Wheel Diagram KTM 450 450 SMR
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 SMR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7730920104430
Front wheel 3,5x16,5 smr 08
08 |
7730920104430 |
— | ||
| replacement | |||||
|
1
|
1
2610900104430 FRONT WHEEL CPL. 3,5X16,5"08 |
2610900104430 |
US $1,245.61 |
||
|
2
|
2
78009010144 Front Wheel Hub Cpl08 |
78009010144 |
US $318.56 |
||
|
3
|
3
54809011000 Bea.spacertube 35x2 l=79,4 0303 |
54809011000 |
US $23.66 |
||
|
4
|
4
0625069068 Gr.ball Bear.6906 Ddu2Cg23S6Nm03 |
0625069068 |
US $44.68 |
||
|
6
|
6
0760354771 Shaft seal ring 35x47x7 tc03 |
0760354771 |
US $11.19 |
||
|
8
|
8
78009012000 Spacer bushing f. fr. wheel 0808 |
78009012000 |
US $27.10 |
||
|
10
|
10
77309271164 Spoke M4,5X164-16,5 0808 |
77309271164 |
US $4.20 |
||
|
11
|
11
50309072100
Spoke Nipple Quadrax M4,5
08 |
50309072100 |
— | ||
| replacement | |||||
|
11
|
11
81210072000 Spoke nipple quadrax m4,508 |
81210072000 |
US $2.79 |
||
|
12
|
12
7730927000030
Front rim 3,5x16,5"
08 |
7730927000030 |
— | ||
|
13
|
13
58309073000 Rim band 17"08 |
58309073000 |
US $12.94 |
||
|
15
|
15
78009015000 Front wheel rep. kit(As Required) |
78009015000 |
US $134.93 |
||
|
20
|
20
58609060000 Brake Disc Front D=310Mm2005 |
58609060000 |
US $439.21 |
||
| replacement | |||||
|
20
|
20
25009260000 BRAKE DISC FRONT D=310MM2005 |
25009260000 |
US $392.45 |
||
|
21
|
21
59009062016 Special screw m6x16 ws=8 10.9WS=8 10.9 |
59009062016 |
US $1.09 |
||
|
30
|
30
77309081000 Wheel Spin.fr. D=26 M24X1,5 0707 |
77309081000 |
US $79.71 |
||
|
32
|
32
54809082000 Spindle screw m24x1,5 ws=27 03WS=27 03 |
54809082000 |
US $10.88 |
||
|
33
|
33
54809081050 Plug bushing ws=27 03WS=27 03 |
54809081050 |
US $8.50 |
||
|
40
|
40
54809081070 Auxiliary screw front 0606 |
54809081070 |
US $6.17 |
||
