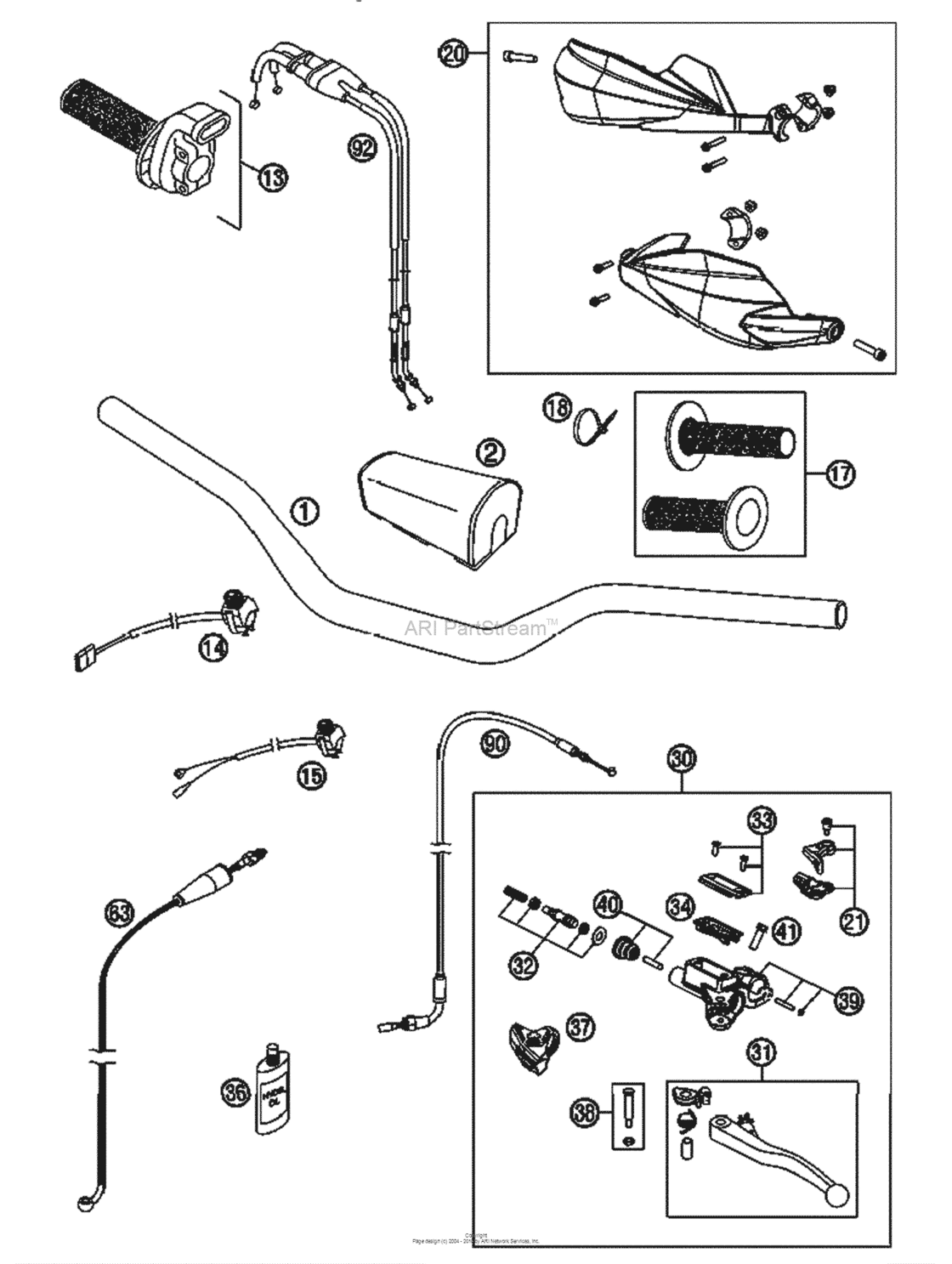

Handlebar, Controls Diagram KTM 450 450 SMR
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 SMR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5480200120017 Handlebar d=28 mm renthal 796(As Required) |
5480200120017 |
US $205.73 |
||
| replacement | |||||
|
1
|
1
5480210120017 Handlebar D=28Mm(As Required) |
5480210120017 |
US $160.77 |
||
|
2
|
2
77302002000
Fatbar Pad Phds
(As Required) |
77302002000 |
— | ||
| replacement | |||||
|
2
|
2
SXS07250800 Fatbar pad phds(As Required) |
SXS07250800 |
US $37.23 |
||
|
13
|
13
77002010100
Throttle grip cpl. 4-st. 09
09 |
77002010100 |
— | ||
| replacement | |||||
|
13
|
13
78102010000 Throttle Grip Cpl09 |
78102010000 |
US $71.72 |
||
|
14
|
14
63011074000 Starter button 0606 |
63011074000 |
US $32.56 |
||
|
15
|
15
50311089200 Short Circuit Button 0202 |
50311089200 |
US $50.97 |
||
|
17
|
17
54802021200 Grip-set gray/orange 0909 Not Available |
54802021200 |
US $28.29 |
||
|
18
|
18
44011076140 Cable tie 140/2,5mm black(As Required) |
44011076140 |
US $0.29 |
||
|
18
|
18
44011076200 Cable tie 200/3,6mm black(As Required) |
44011076200 |
US $0.39 |
||
|
20
|
20
7800297900004
* Handguards Closed
(As Required) |
7800297900004 |
— | ||
|
21
|
21
77302047000 Hot start lever cpl. 0909 |
77302047000 |
US $36.47 |
||
|
30
|
30
77302030000 Master cylinder cpl. 10,5mm 0909 |
77302030000 |
US $390.01 |
||
|
31
|
31
50302031300 Clutch lever cpl. 20092009 |
50302031300 |
US $45.82 |
||
|
32
|
32
77302032000 Rep.kit piston 10,5mm 0909 |
77302032000 |
US $96.37 |
||
|
33
|
33
50302033200 Cover hydr. clutch cpl. 0909 |
50302033200 |
US $24.96 |
||
|
34
|
34
50302034100 Rubber for reservoir 0909 |
50302034100 |
US $17.24 |
||
|
36
|
36
50302036200 Oil For Hyd. Clutch 100 Ml09 |
50302036200 |
US $19.23 |
||
|
37
|
37
50302037100
Mud cap 09
09 |
50302037100 |
— | ||
| replacement | |||||
|
37
|
37
76502037000 Protect.cap For Lever Perch 1309 |
76502037000 |
US $32.22 |
||
|
38
|
38
50302038100 Lever screw cpl. 0909 |
50302038100 |
US $23.60 |
||
|
39
|
39
83013005000 Clamp, cyl. pin, o-ring09 |
83013005000 |
US $55.15 |
||
|
40
|
40
50302046000
Push rod cpl. 09
09 |
50302046000 |
— | ||
| replacement | |||||
|
40
|
40
76502046000 Push Rod Cpl. 1309 |
76502046000 |
US $32.86 |
||
|
41
|
41
0025060166 Hh collar screw m6x16 tx30TX30 |
0025060166 |
US $2.23 |
||
|
63
|
63
59032063100 Clutch pipe racing 20032003 |
59032063100 |
US $89.39 |
||
|
90
|
90
77002096000 Hot start cable 0505 |
77002096000 |
US $21.83 |
||
|
92
|
92
77002091000 Throttle cable 250 sxf 20052005 |
77002091000 |
US $80.70 |
||
