Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 59430018100 Crankshaft 06 T20	59430018100	US $830.93
2	2 59430015044 Con.rod rep.set 450 rac. 03 T20	59430015044	US $494.36
4	4 80030019000 Cyl.rollbear.nj206ecp/c3hvc058 T20	80030019000	US $96.10
5	5 59030055000 Drive gear 32-t f.balanc.shaft T20	59030055000	US $113.87
6	6 56030081000 Thrust washer 30,5x45x0,10 T20	56030081000	US $0.43
6	6 56030081100 Thrust washer 30,7x47x0,15 T20	56030081100	US $0.94
6	6 56030081200 Thrust washer 30,5x45x0,30 T20	56030081200	US $1.21
7	7 0888030050 Woodruff Key Din6888-3X5X13 T20	0888030050	US $2.60
8	8 0984060162 Ah screw din7984-m 6x16 T20	0984060162	US $1.05
9	9 0760304772 Sh.seal Ring 30X47X7 Bsl Viton T20	0760304772	US $26.23
13	13 59032000033 Primary gear 33-t T20	59032000033	US $113.22
15	15 59030029100 Hh nur m20x1,5 ws=27 left T20	59030029100	US $6.70
16	16 6946005 Woodruff Key 5X6,5 Harded T20	6946005	US $0.92
17	17 0760142460 Shaft seal ring 14x24x6 b T20	0760142460	US $11.70
18	18 0471250120 Circlip Din0471-25X1,2 T20	0471250120	US $1.31
20	20 49030021000 Collar nut m12x1 r/s T20	49030021000	US $10.57
21	21 0137120000 Spring washer din0137-b12 T20	0137120000	US $0.39
33	33 59430033000 Piston pin bolt 20x12x45,5 T20	59430033000	US $19.65
34	34 59430174000 Circlip 20x1,6 T20	59430174000	US $8.59
40	40 59430107100I Piston cpl. 450 d=95mm si.1 05 T20	59430107100I	—
40	40 59430107100II Piston cpl. 450 d=95mm si.2 05 T20	59430107100II	—
41	41 59430031000 Oil scraper ring 95/88,5x2,5 T20	59430031000	US $24.50
42	42 59030032000 Rectangular ring 95/87,2x1,25 T20	59030032000	US $40.41

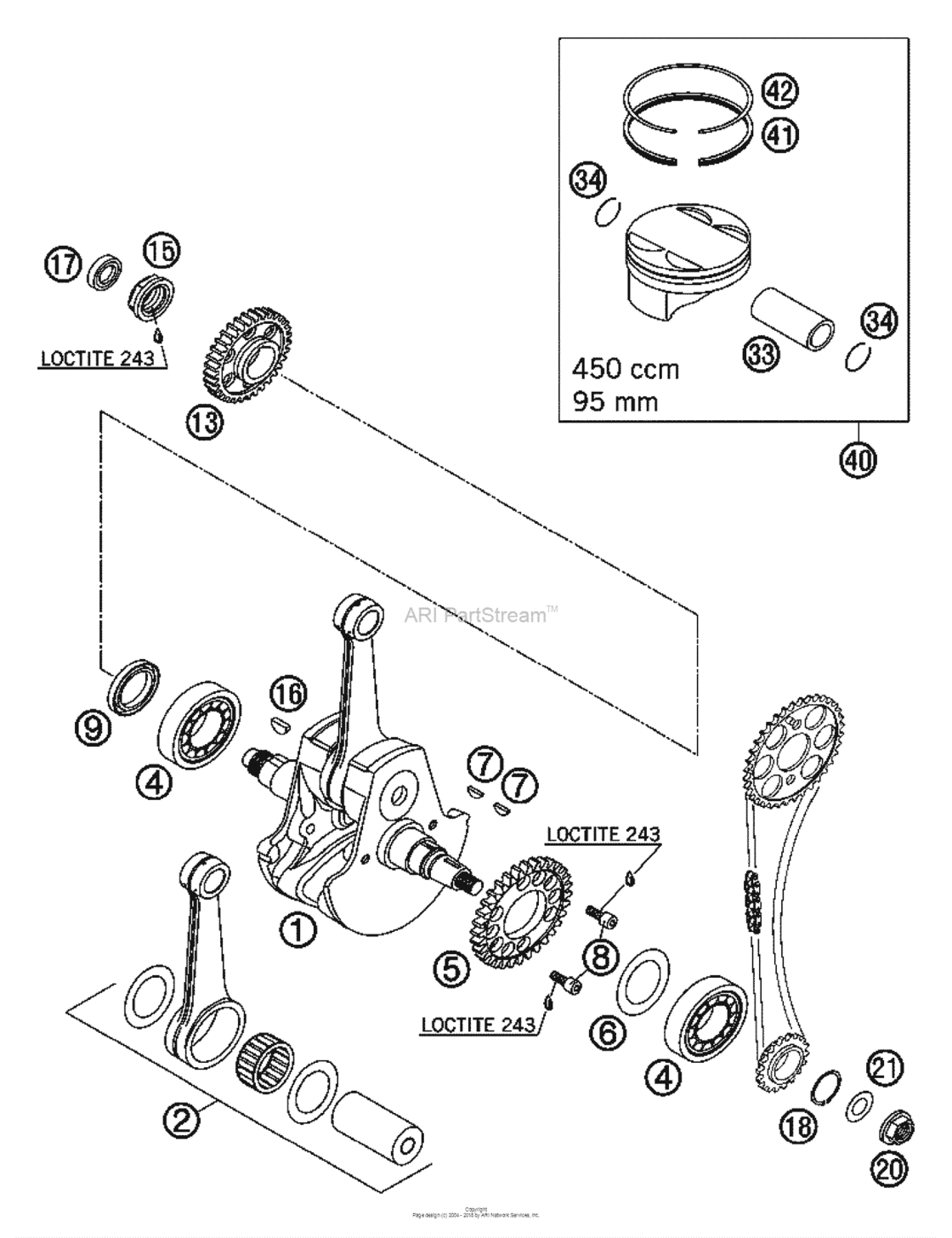

Crankshaft, Piston Diagram KTM 450 450 SMR US/EU 18094241-940079

Crankshaft, Piston Diagram KTM 450 450 SMR US/EU 18094241-940079
