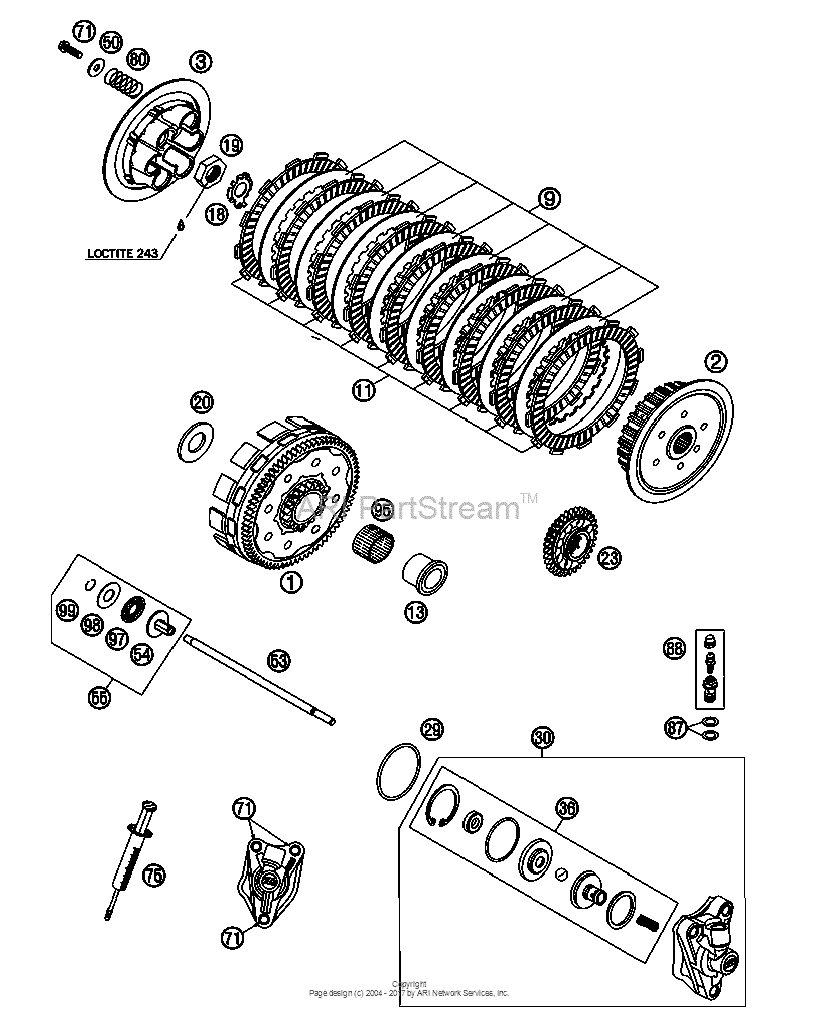

Clutch Diagram KTM 450 450 SMR
- Year
- 2008
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 SMR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77332001244
Outer clutch cpl. 08
08 |
77332001244 |
— | ||
| replacement | |||||
|
1
|
1
77332001344 Outer clutch cpl.08 |
77332001344 |
US $558.11 |
||
|
2
|
2
77332002200 Inner clutch hub 0808 |
77332002200 |
US $163.37 |
||
|
3
|
3
77332003000 Pressure plate08 |
77332003000 |
US $90.70 |
||
|
9
|
9
77332010000 Intermedi. disc steel08 |
77332010000 |
US $10 |
||
|
11
|
11
77332011000 Lining disc 2,7mm08 |
77332011000 |
US $28.93 |
||
|
13
|
13
77332015100 Inner ring08 |
77332015100 |
US $23.51 |
||
|
18
|
18
77332018000 Retaining plate08 |
77332018000 |
US $3.13 |
||
|
19
|
19
0936181505 Hexagon Nut Din0936-M18X1,5 R08 |
0936181505 |
US $7.60 |
||
|
20
|
20
77332017100 Washer 21,7x38x4 0707 |
77332017100 |
US $18.36 |
||
|
23
|
23
77332023177 Primary Gear Cpl07 |
77332023177 |
US $181.20 |
||
| replacement | |||||
|
23
|
23
77332023129 Primary gear07 |
77332023129 |
US $85.73 |
||
|
29
|
29
0770380020 O-Ring 38,00X2,00 Nbr 70 Sh07 |
0770380020 |
US $2.52 |
||
|
30
|
30
77332061044 Output cylinder cpl.07 |
77332061044 |
US $276.98 |
||
|
36
|
36
77332066000 Piston cpl.07 |
77332066000 |
US $77.67 |
||
|
50
|
50
50232050000 Washer 6,2x18x207 |
50232050000 |
US $4.10 |
||
|
53
|
53
77332054100 Push rod 0707 |
77332054100 |
US $12.61 |
||
|
54
|
54
77332057100 Pressure piece07 |
77332057100 |
US $13.02 |
||
|
55
|
55
77332057144 Pressure piece cpl.07 |
77332057144 |
US $21.03 |
||
|
71
|
71
0015060253
Hh Collar Screw M6X25 Tx30
WS=8 |
0015060253 |
— | ||
| replacement | |||||
|
71
|
71
0025060256 Hh collar screw m6x25 tx30WS=8 |
0025060256 |
US $2.45 |
||
|
75
|
75
50329050000 Vent Injektion Hydr. ClutchWS=8 |
50329050000 |
US $50.78 |
||
|
80
|
80
77332005000 Clutch springWS=8 |
77332005000 |
US $9.44 |
||
|
87
|
87
42013226000 Cu-Seal Ring Din7603-10X16X1WS=8 |
42013226000 |
US $4.10 |
||
|
88
|
88
54813020000
Bleeder Screw Cpl. 05
WS=8 |
54813020000 |
— | ||
| replacement | |||||
|
88
|
88
62513020000 Bleeder Screw Cpl. 05WS=8 |
62513020000 |
US $30.16 |
||
|
95
|
95
56532095000 Needle bearing k26x30x22zw.kseWS=8 |
56532095000 |
US $21.51 |
||
|
97
|
97
54637097200 Axial Needle Bearing Axk 1226WS=8 |
54637097200 |
US $10.06 |
||
|
98
|
98
54637098200 Axial washer as1226 12x26x1WS=8 |
54637098200 |
US $5.02 |
||
|
99
|
99
0993012000 Circlip Din7993-Rw12WS=8 |
0993012000 |
US $2.11 |
||
