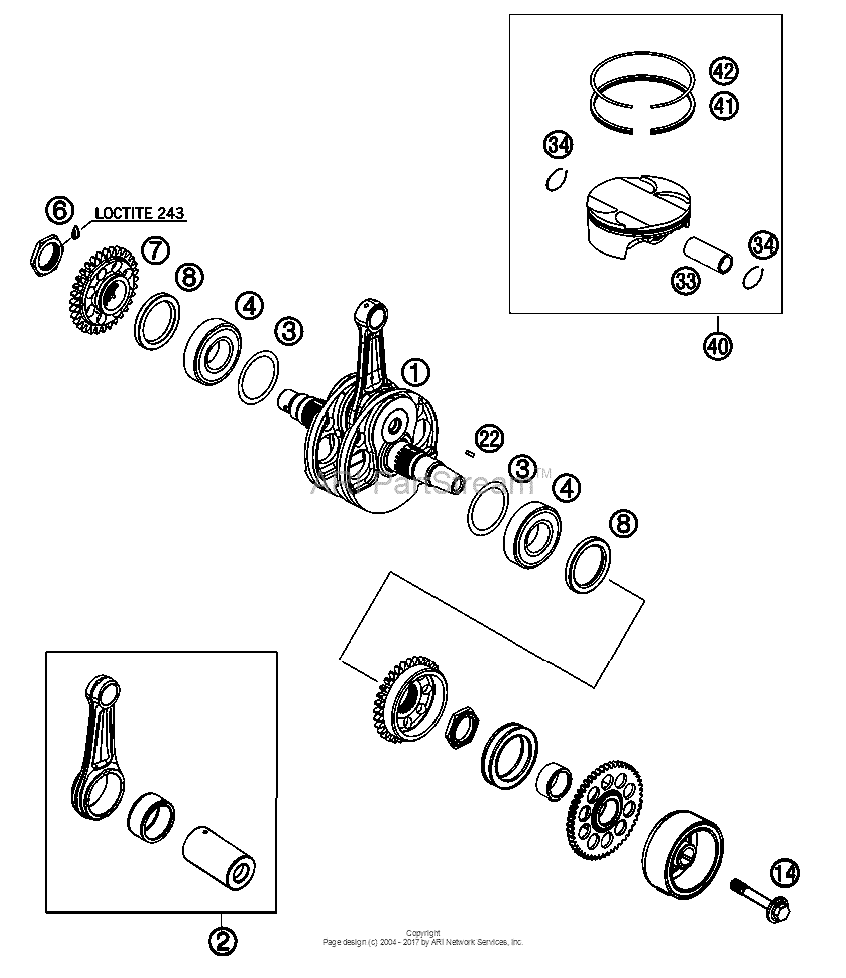

Crankshaft, Piston Diagram KTM 450 450 SMR
- Year
- 2008
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 SMR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77330018300
Crankshaft Cpl
TX |
77330018300 |
— | ||
| replacement | |||||
|
1
|
1
77330018400 Crankshaft cpl.TX |
77330018400 |
US $1,223.20 |
||
|
2
|
2
77330015144
Connecting Rod Repair Set
TX |
77330015144 |
— | ||
| replacement | |||||
|
2
|
2
77330015244 Connecting rod repair setTX |
77330015244 |
US $693.94 |
||
|
3
|
3
0988304201 Thrust washer 30x42x0,1(As required) |
0988304201 |
US $0.73 |
||
|
3
|
3
0988304202 Thrust washer 30x42x0,2(As required) |
0988304202 |
US $0.73 |
||
|
3
|
3
0988304203 Thrust washer 30x42x0,3(As required) |
0988304203 |
US $0.73 |
||
|
4
|
4
77330082000 Cyl. roller bearing nj206 ecp(As required) |
77330082000 |
US $91.73 |
||
|
6
|
6
77330029000 Collar nut m27x1(As required) |
77330029000 |
US $9.32 |
||
|
7
|
7
77332023177 Primary Gear Cpl07 |
77332023177 |
US $181.20 |
||
| replacement | |||||
|
7
|
7
77332023129 Primary gear07 |
77332023129 |
US $85.73 |
||
|
8
|
8
0760405560 Shaft seal ring a40x55x6 viton07 |
0760405560 |
US $13.04 |
||
|
14
|
14
77339010000 Flywheel screw07 |
77339010000 |
US $20.21 |
||
|
22
|
22
0888030037 Woodruff key din6888-3x3,707 |
0888030037 |
US $0.58 |
||
|
33
|
33
77330033000 Piston Pin07 |
77330033000 |
US $36.65 |
||
|
34
|
34
77330074000 Circlip07 |
77330074000 |
US $13.04 |
||
|
40
|
40
77330007200I
Piston 450 Size I
07 |
77330007200I |
— | ||
| replacement | |||||
|
40
|
40
77330007500I Piston 450 size i07 |
77330007500I |
US $595 |
||
|
40
|
40
77330007200II
Piston 450 Size Ii
07 |
77330007200II |
— | ||
| replacement | |||||
|
40
|
40
77330007500II Piston 450 size ii07 |
77330007500II |
US $595 |
||
|
41
|
41
77330032100
Oil scraper ring
07 |
77330032100 |
— | ||
| replacement | |||||
|
41
|
41
77330032200 Scraper ring 45007 |
77330032200 |
US $41.62 |
||
|
42
|
42
77330030100 Compressionring d=97 2007D=97 2007 |
77330030100 |
US $41.62 |
||
