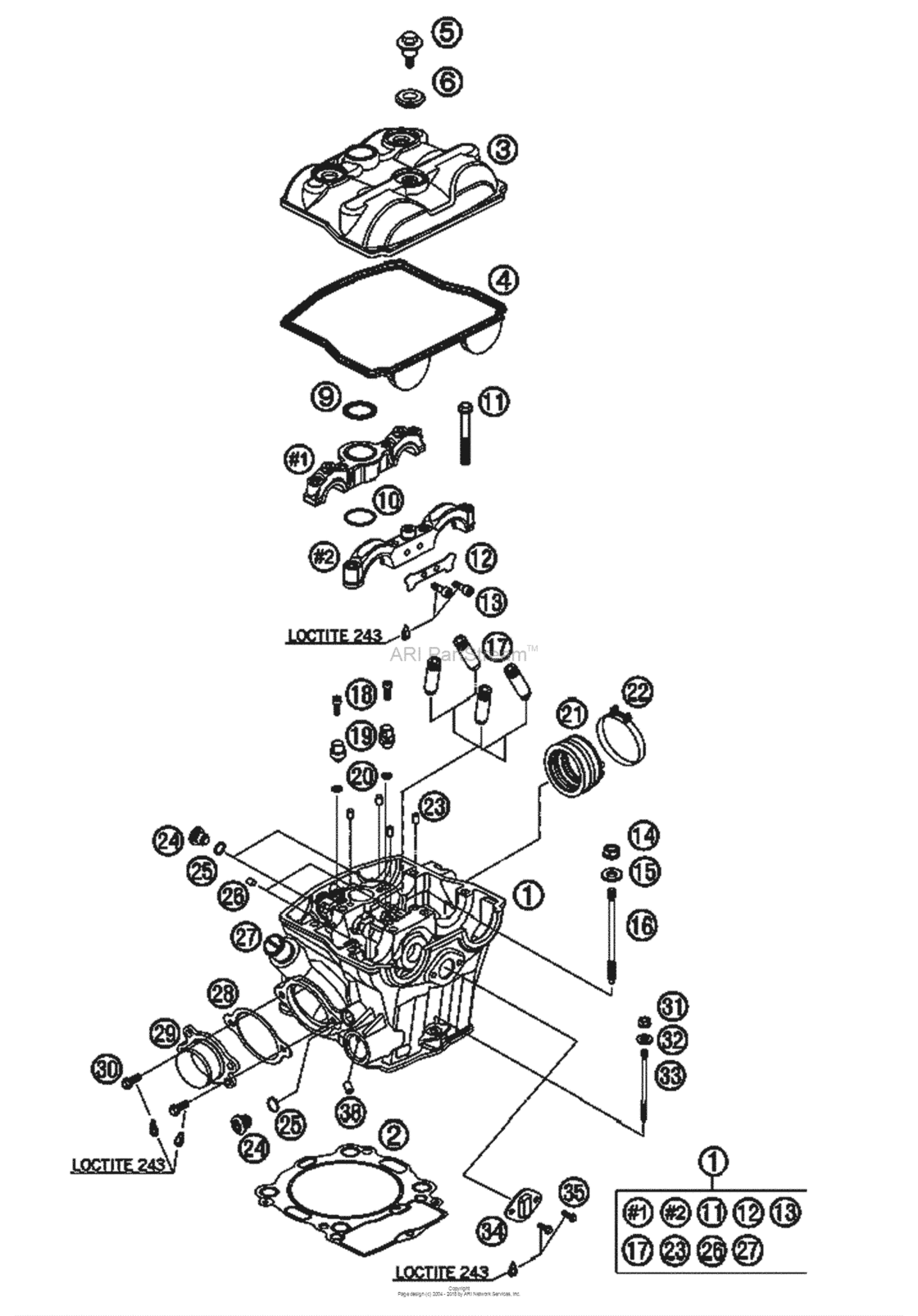

Cylinder Head Diagram KTM 450 450 SMR
- Year
- 2008
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 SMR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77336020044
Cylinder Head Cpl
07 |
77336020044 |
— | ||
| replacement | |||||
|
1
|
1
77336020344 Cylinder head cpl.07 |
77336020344 |
US $1,225.09 |
||
|
2
|
2
77330036000 Cyl. head gasket s=0,5 0606 |
77330036000 |
US $37.52 |
||
|
3
|
3
77336052100 Valve cover06 |
77336052100 |
US $44.15 |
||
|
4
|
4
77336053000 Valve cover gasket06 |
77336053000 |
US $13.67 |
||
|
5
|
5
77336054150 Valve cover screw06 |
77336054150 |
US $6.61 |
||
|
6
|
6
77036054050 Rubber gasket for screw 0505 |
77036054050 |
US $9.33 |
||
|
9
|
9
77336053050 Gasket spark-plug shaft05 |
77336053050 |
US $7.45 |
||
|
10
|
10
0770250015 O-ring 25,00x1,50 nbr 7005 |
0770250015 |
US $0.24 |
||
|
11
|
11
77330067038 Collar screw m7x1x3805 |
77330067038 |
US $10.71 |
||
|
12
|
12
77336020040 Bushing holder05 |
77336020040 |
US $5.17 |
||
|
13
|
13
0912050103 Ah Screw Din0912-M 5X1005 |
0912050103 |
US $0.54 |
||
|
14
|
14
77336088110 Collar nut m10x1,25 sw1305 |
77336088110 |
US $13.80 |
||
|
15
|
15
77336089010 Washer 19x10,5x2,505 |
77336089010 |
US $3.13 |
||
|
16
|
16
77330044000 Stud screw m1005 |
77330044000 |
US $18.53 |
||
|
17
|
17
77336025100
Valve Guide Exhaust 08
05 |
77336025100 |
— | ||
| replacement | |||||
|
17
|
17
61236026001 Valve guide exhaust 0805 |
61236026001 |
US $51.41 |
||
|
18
|
18
0912040123 Ah screw din0912-m 4x1205 |
0912040123 |
US $0.71 |
||
|
19
|
19
77338046000 Oil jet05 |
77338046000 |
US $13.52 |
||
|
20
|
20
0770060015 O-ring 1,5x605 |
0770060015 |
US $4.17 |
||
|
21
|
21
59036044200 Intake boot 525 0606 |
59036044200 |
US $29.99 |
||
|
22
|
22
59030061100 Hose clamp gemi 56mm 0303 |
59030061100 |
US $5.47 |
||
|
23
|
23
0402050080 Cylinder roller zro 5x803 |
0402050080 |
US $1.85 |
||
|
24
|
24
77336056095 Screw plug03 |
77336056095 |
US $6.66 |
||
|
25
|
25
0770090015 O-ring 9x1,5 nbr03 |
0770090015 |
US $1.50 |
||
| replacement | |||||
|
25
|
25
07700900151 O-Ring 9X1,5 V80 Sh03 |
07700900151 |
US $1.41 |
||
|
26
|
26
59030196000 Plug 0000 |
59030196000 |
US $0.36 |
||
|
27
|
27
58030010200 Screw In Nozzle M20X1,500 |
58030010200 |
US $8.82 |
||
|
28
|
28
77336041000 Gasket exhaust flange00 |
77336041000 |
US $8.33 |
||
|
29
|
29
77336039100 Exhaust flange cpl.00 |
77336039100 |
US $57.12 |
||
|
30
|
30
0015060203
Hh Collar Screw M 6X20 Ws=8
WS=8 |
0015060203 |
— | ||
| replacement | |||||
|
30
|
30
0025060206 Hh collar screw m6x20 tx30WS=8 |
0025060206 |
US $1.97 |
||
|
31
|
31
77336088106 Collar nut m6x1 sw8SW8 |
77336088106 |
US $12.50 |
||
|
32
|
32
0125060003 Washer Din0125-A 6,4SW8 |
0125060003 |
US $0.37 |
||
|
33
|
33
77330043000 Stud screw m6SW8 |
77330043000 |
US $11.46 |
||
|
34
|
34
77336075050 Retaining plateSW8 |
77336075050 |
US $3.67 |
||
|
35
|
35
0015050103 Hh collar screw m 5x10 ws=8WS=8 |
0015050103 |
US $1.11 |
||
|
38
|
38
77338029012 Throttle m6x10x0,6WS=8 |
77338029012 |
US $12.19 |
||
