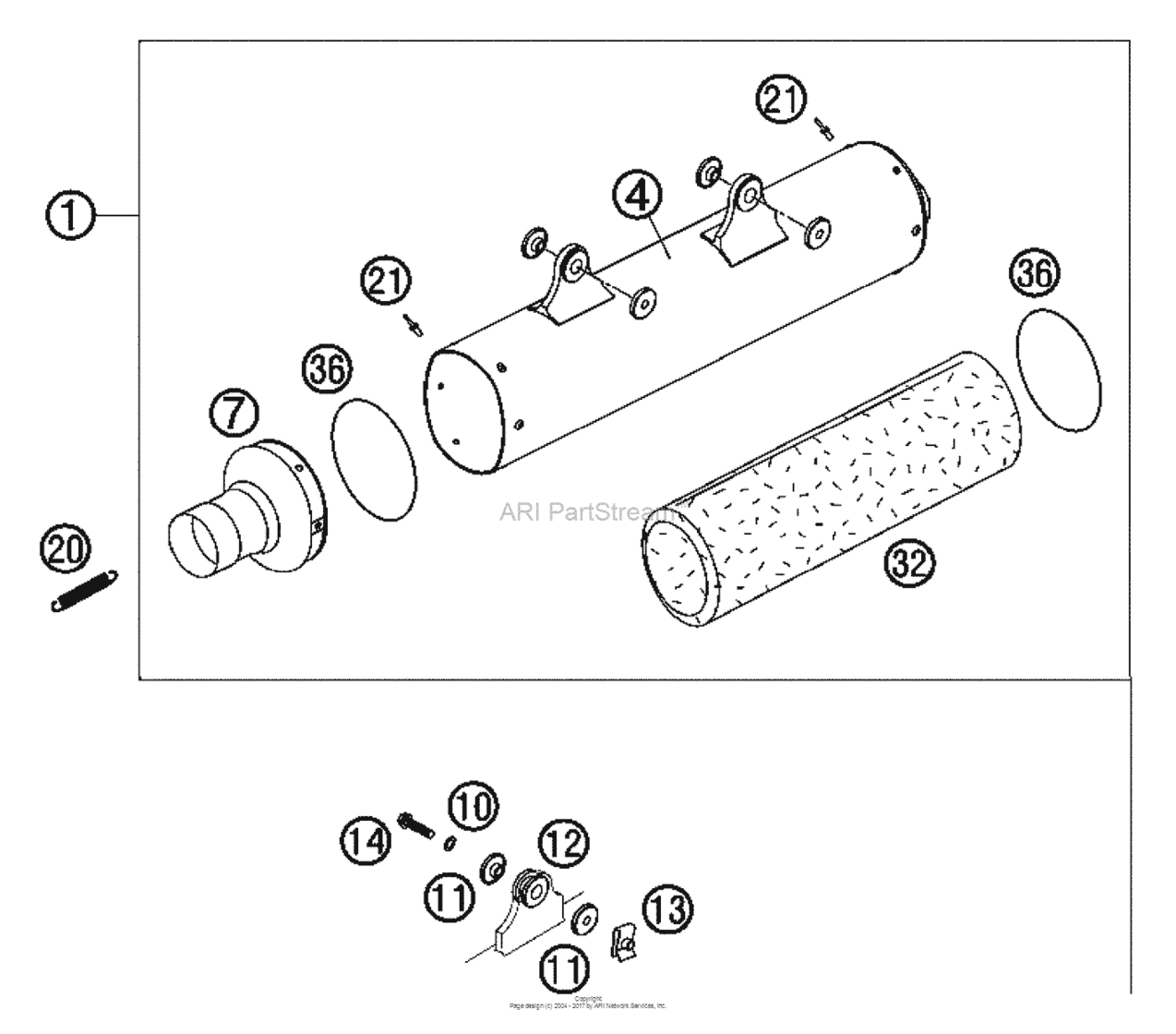

Silencer Diagram KTM 450 450 SX
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77005079000 Silencer cpl. 2005TX30 |
77005079000 |
US $587.20 |
||
|
4
|
4
59405079050 Silencer housing cpl. sx 03TX30 |
59405079050 |
US $155.67 |
||
|
7
|
7
59405079009 Silencener connect. cap cpl.03TX30 |
59405079009 |
US $61.74 |
||
|
10
|
10
0137060003 Spring Washer Din0137-B 6TX30 |
0137060003 |
US $0.43 |
||
|
11
|
11
54605069000
Bushing 7,5x12x28x7,8 '96
TX30 |
54605069000 |
— | ||
| replacement | |||||
|
11
|
11
77205169000 Bushing 7.5X12X28X8.3 11TX30 |
77205169000 |
US $7.82 |
||
|
12
|
12
54605068000
Exhaust bracket rubber black
TX30 |
54605068000 |
— | ||
| replacement | |||||
|
12
|
12
77205068000 Damp. Compon. BlackTX30 |
77205068000 |
US $8.43 |
||
|
13
|
13
54603048100 Range Change Metal Nut M6TX30 |
54603048100 |
US $5.27 |
||
|
14
|
14
0015060303
Hh Collar Screw M6X30 Tx30
TX30 |
0015060303 |
— | ||
| replacement | |||||
|
14
|
14
0025060306 Hh collar screw m6x30 tx30TX30 |
0025060306 |
US $3.96 |
||
|
20
|
20
50305016000
Ten.spring L=62Mm Ey.moveable
TX30 |
50305016000 |
— | ||
| replacement | |||||
|
20
|
20
A46005016000 TEN.SPRING L=62MM EY.MOVEABLETX30 |
A46005016000 |
US $5.88 |
||
|
21
|
21
0011480802
Dummy Rivet 4,8X 8 Niro
TX30 |
0011480802 |
— | ||
| replacement | |||||
|
21
|
21
0011480800 Dummy Rivet 4,8X 8 NiroTX30 |
0011480800 |
US $2.35 |
||
|
32
|
32
59005078550
Stuffing Yarn 495 Gram
TX30 |
59005078550 |
— | ||
| replacement | |||||
|
32
|
32
77005078495 Stuffing yarn 495 gramTX30 |
77005078495 |
US $92.06 |
||
|
36
|
36
0770740015 O-ring 74,00x1,50 fkm 75shTX30 |
0770740015 |
US $2.53 |
||
