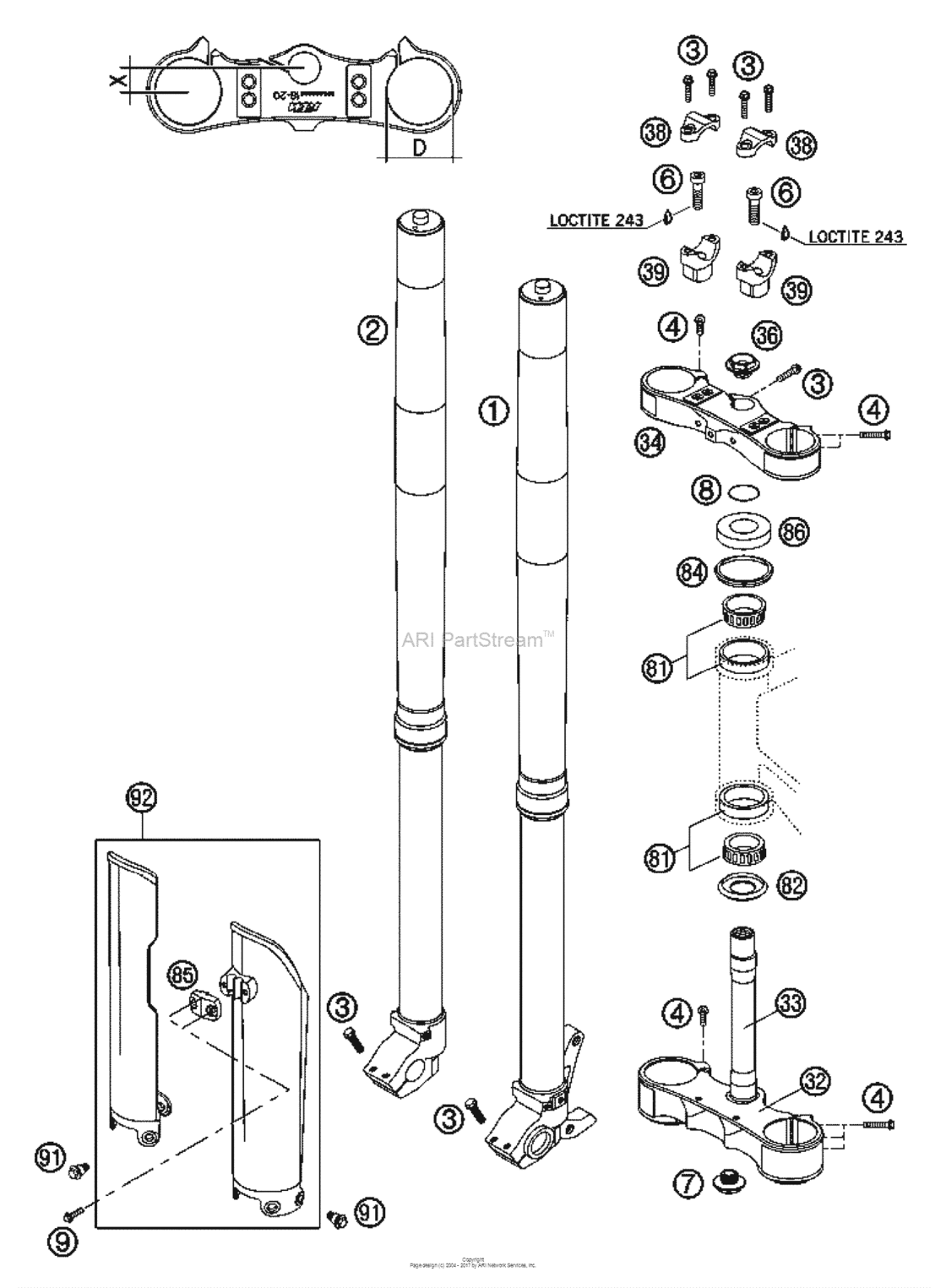

Telescopic Fork Diagram KTM 450 450 SX
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14187B05LS Fork leg l/s wp48 sx rac. 06TX30 |
14187B05LS |
US $1,188.66 |
||
|
2
|
2
14187B05RS Fork leg r/s wp48 sx rac. 06TX30 |
14187B05RS |
US $1,188.66 |
||
|
3
|
3
0015080256S Hh collar screw m8x25 ws=10 06TX30 |
0015080256S |
US $2.11 |
||
|
4
|
4
0015080353 Hh Collar Screw M 8X35 Ws=10TX30 |
0015080353 |
US $7.12 |
||
|
6
|
6
0912100356
Ah screw din6912-m10x35 10.9
TX30 |
0912100356 |
— | ||
| replacement | |||||
|
6
|
6
0032100356S Ah-Collar Screw M10X35 Isa45TX30 |
0032100356S |
US $3.57 |
||
|
7
|
7
54801036100 Ste.head scr. m20x1,5 ws=27 slTX30 |
54801036100 |
US $12.72 |
||
|
8
|
8
0770025035 O-ring 25x3,55 nbr70 05TX30 |
0770025035 |
US $0.53 |
||
|
9
|
9
0017060204 Screw F. Plastic K60X20Al Sw6TX30 |
0017060204 |
US $2.89 |
||
| replacement | |||||
|
9
|
9
0017060206 Screw F. Plastic K60X20Al Sw6TX30 |
0017060206 |
US $2.89 |
||
|
32
|
32
59401031019 Bottom triple clamp d=60mm 05TX30 |
59401031019 |
US $268.16 |
||
|
33
|
33
59401033000 Fork tube l=237mm 05TX30 |
59401033000 |
US $85.61 |
||
|
34
|
34
59401034019 Top triple clamp d=54mm 05TX30 |
59401034019 |
US $226.22 |
||
|
36
|
36
54801036000 Steer.head screw m20x1,5 ws=27TX30 |
54801036000 |
US $11.56 |
||
|
38
|
38
59401038000
Handlebar clamp 28mm 05
TX30 |
59401038000 |
— | ||
| replacement | |||||
|
38
|
38
77201038000 Handlebar Clamp 28MmTX30 |
77201038000 |
US $22.83 |
||
|
39
|
39
59401039032 Handleb.supp. d=28mm h=32mm 05TX30 |
59401039032 |
US $36.67 |
||
|
39
|
39
59401039037 Handleb.supp. d=28mm h=37mm 05TX30 |
59401039037 |
US $34.36 |
||
|
39
|
39
59401039042 Handleb.supp. d=28mm h=42mm 05TX30 |
59401039042 |
US $36.67 |
||
|
81
|
81
54201081100 Tapered Roller Bearing Cpl. 06TX30 |
54201081100 |
US $53.18 |
||
|
82
|
82
54601084100 O-Ring Support W. Sealing LipTX30 |
54601084100 |
US $21.28 |
||
| replacement | |||||
|
82
|
82
77701084000 O-Ring Support W. Sealing LipTX30 |
77701084000 |
US $21.15 |
||
|
84
|
84
54601184000 Stearing head gasket topTX30 |
54601184000 |
US $7.74 |
||
|
85
|
85
5900108510004 Clamp f.speed.cable orange 06TX30 |
5900108510004 |
US $1.67 |
||
|
86
|
86
54201086000 Steering Head CoverTX30 |
54201086000 |
US $8.11 |
||
| replacement | |||||
|
86
|
86
78101086000 Steering Head CoverTX30 |
78101086000 |
US $5.08 |
||
|
91
|
91
59001092050 Special Screw M6X12,5 Ws=8TX30 |
59001092050 |
US $2.35 |
||
|
92
|
92
5900109400004 Fork prot. l/s +r/s org 02TX30 |
5900109400004 |
US $39.54 |
||
