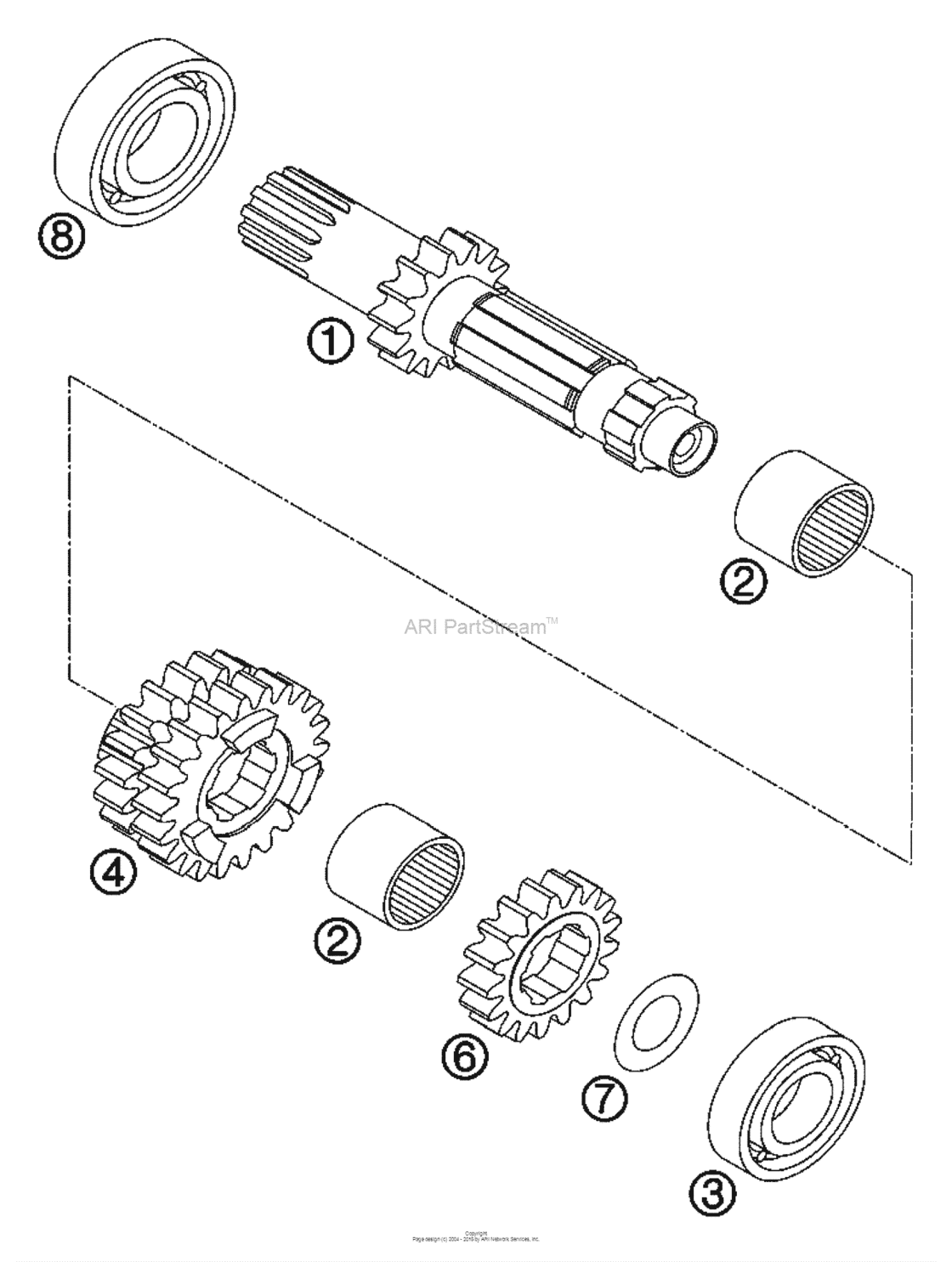

Transmission I Diagram KTM 450 450 SX
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 SX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59033001300 Main shaft-zb 16-t sx 03TX30 |
59033001300 |
US $134.74 |
||
|
2
|
2
59033032100 Spacer bushing 25x30x24,4TX30 |
59033032100 |
US $12.89 |
||
|
3
|
3
0625062035 Ball bearing 6203 jr2 c3TX30 |
0625062035 |
US $12.95 |
||
|
4
|
4
59033003046 Sliding gear 3/4.g 20/22-t"46"TX30 |
59033003046 |
US $133.55 |
||
|
6
|
6
59033002037
Solid gear 2.g 18-t "37"
TX30 |
59033002037 |
— | ||
|
7
|
7
56033030000 Stop Disc 17,2X30X1TX30 |
56033030000 |
US $3.83 |
||
|
8
|
8
0625062054 Ball Bearing 6205 C3 NtnTX30 |
0625062054 |
US $18.41 |
