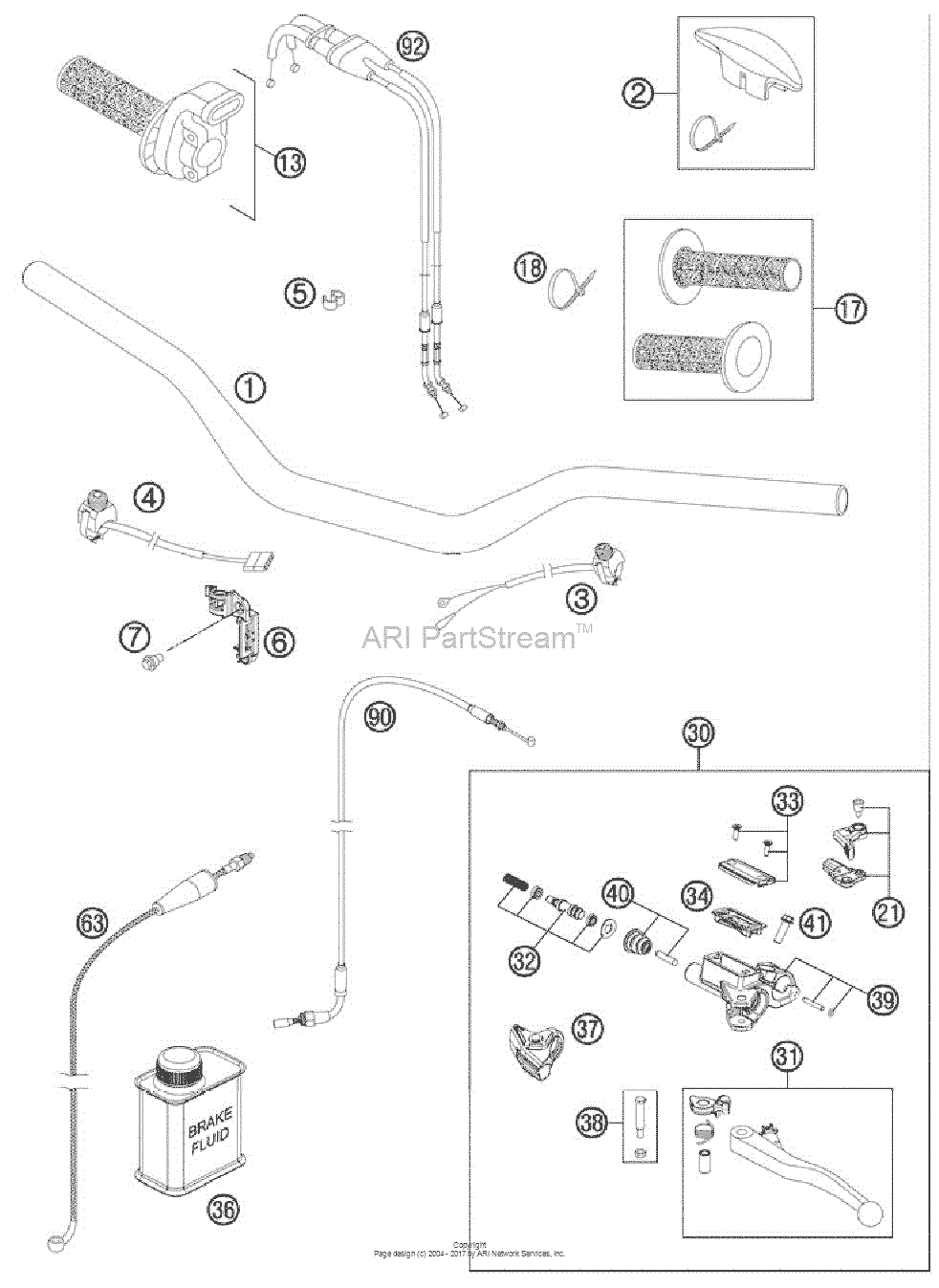

Handlebar, Controls Diagram KTM 450 450 SX-F
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 SX-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7730200110017 Handlebar Renthal Sx 28Mm 0808 |
7730200110017 |
US $147.73 |
||
|
2
|
2
77302002000
Fatbar Pad Phds
08 |
77302002000 |
— | ||
| replacement | |||||
|
2
|
2
SXS07250800 Fatbar pad phds08 |
SXS07250800 |
US $37.23 |
||
|
3
|
3
50311089200 Short Circuit Button 0202 |
50311089200 |
US $50.97 |
||
|
4
|
4
59411074000 Starter control 0404 |
59411074000 |
US $39.17 |
||
| replacement | |||||
|
4
|
4
78111074000 Starter Button Grey 1304 |
78111074000 |
US $58.31 |
||
|
5
|
5
60111094000 Clamp 5/7 mm 0606 |
60111094000 |
US $3.54 |
||
|
6
|
6
77214098000 Holder Indicator Light Sx06 |
77214098000 |
US $3.25 |
||
|
7
|
7
59001092050 Special Screw M6X12,5 Ws=8WS=8 |
59001092050 |
US $2.35 |
||
|
13
|
13
77002010100
Throttle grip cpl. 4-st. 09
09 |
77002010100 |
— | ||
| replacement | |||||
|
13
|
13
78102010000 Throttle Grip Cpl09 |
78102010000 |
US $71.72 |
||
|
17
|
17
54802021200 Grip-set gray/orange 0909 Not Available |
54802021200 |
US $28.29 |
||
|
18
|
18
44011076140 Cable tie 140/2,5mm black(As required) |
44011076140 |
US $0.29 |
||
|
18
|
18
44011076200 Cable tie 200/3,6mm black(As required) |
44011076200 |
US $0.39 |
||
|
21
|
21
77302047000 Hot start lever cpl. 0909 |
77302047000 |
US $36.47 |
||
|
30
|
30
50302030300 Master cylinder cpl. 9,5mm 0909 |
50302030300 |
US $372.45 |
||
|
31
|
31
50302031300 Clutch lever cpl. 20092009 |
50302031300 |
US $45.82 |
||
|
32
|
32
50302032100 Rep.kit piston 9,5mm 0909 |
50302032100 |
US $82.21 |
||
|
33
|
33
50302033200 Cover hydr. clutch cpl. 0909 |
50302033200 |
US $24.96 |
||
|
34
|
34
50302034100 Rubber for reservoir 0909 |
50302034100 |
US $17.24 |
||
|
36
|
36
50302036200 Oil For Hyd. Clutch 100 Ml09 |
50302036200 |
US $19.23 |
||
|
37
|
37
50302037100
Mud cap 09
09 |
50302037100 |
— | ||
| replacement | |||||
|
37
|
37
76502037000 Protect.cap For Lever Perch 1309 |
76502037000 |
US $32.22 |
||
|
38
|
38
50302038200 Lever screw short cpl. 0909 |
50302038200 |
US $29.50 |
||
|
39
|
39
83013005000 Clamp, cyl. pin, o-ring09 |
83013005000 |
US $55.15 |
||
|
40
|
40
50302046000
Push rod cpl. 09
09 |
50302046000 |
— | ||
| replacement | |||||
|
40
|
40
76502046000 Push Rod Cpl. 1309 |
76502046000 |
US $32.86 |
||
|
41
|
41
0025060166 Hh collar screw m6x16 tx30TX30 |
0025060166 |
US $2.23 |
||
|
63
|
63
59032063100 Clutch pipe racing 20032003 |
59032063100 |
US $89.39 |
||
|
90
|
90
77002096000 Hot start cable 0505 |
77002096000 |
US $21.83 |
||
|
92
|
92
77002091000 Throttle cable 250 sxf 20052005 |
77002091000 |
US $80.70 |
||
