	Description	OEM Part #	Price
1	1 7770200100030 Handlebar Renthal Black 13 13 Not Available	7770200100030	US $148.36
2	2 77702002000 Fatbar Pad Phds 13 Not Available	77702002000	—
	replacement
2	2 SXS07250800 Fatbar pad phds 13 Not Available	SXS07250800	US $37.23
3	3 50311089200 Short Circuit Button 02 02	50311089200	US $50.97
4	4 78111074000 Starter Button Grey 13 13	78111074000	US $58.31
6	6 77214098000 Holder Indicator Light Sx 13	77214098000	US $3.25
7	7 59001092050 Special Screw M6X12,5 Ws=8 13	59001092050	US $2.35
8	8 81214083000 Indicator light led yellow fi 13	81214083000	US $31.30
13	13 78102010000 Throttle Grip Cpl 13	78102010000	US $71.72
17	17 77102021000 Grip-Set Renthal G092 Full W As Required	77102021000	US $22.88
17	17 78102021000 Grip Set As Required	78102021000	US $25.62
18	18 44011076200 Cable tie 200/3,6mm black As Required	44011076200	US $0.39
18	18 44011076140 Cable tie 140/2,5mm black As Required	44011076140	US $0.29
30	30 54802030144 Master Cylinder Cpl As Required	54802030144	US $214.10
31	31 54802031000 Clutch lever cpl. brembo 06 06	54802031000	US $45.82
32	32 54802032000 Rep. kit piston 06 06	54802032000	US $43.21
33	33 54802003000 Cover hyd. clutch cpl. 06	54802003000	US $30.28
34	34 54802051000 Valve 06	54802051000	US $16.88
35	35 54802052000 Bolt kpl. 06	54802052000	US $26.49
36	36 00062030000 Brake fluid dot5.1 0,25l 06	00062030000	US $14.35
37	37 54802037000 Protection cap 06 06	54802037000	US $18.77
38	38 54802038100 Lever screw cpl. 06 06	54802038100	US $36.02
39	39 54802046000 Push rod cpl. 06	54802046000	US $20.01
44	44 54802005100 Clamp cpl. 06 06	54802005100	US $23.49
63	63 78132063000 Clutch Pipe 06	78132063000	US $111.93
92	92 78102091000 Throttle Cable 4T 13	78102091000	US $73.51
	replacement
92	92 78102091100 Throttle Cable 4T 13	78102091100	US $60.42

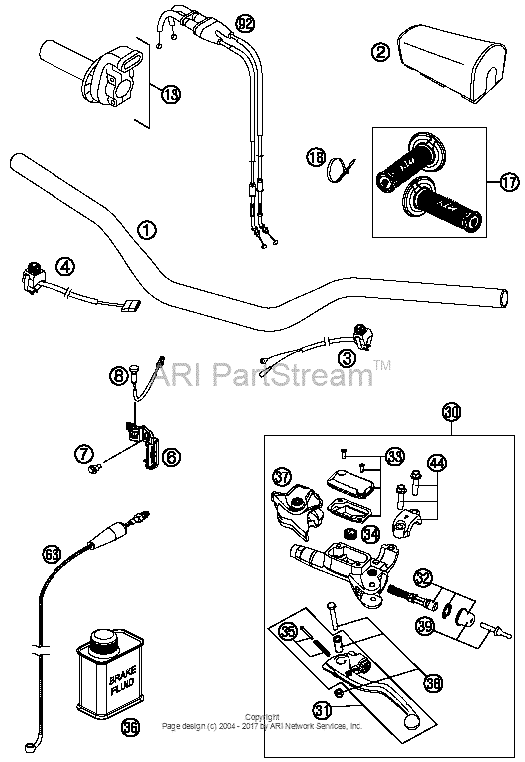

Handlebar, Controls Diagram KTM 450 450 SX-F US/EU 18094920-940113

Handlebar, Controls Diagram KTM 450 450 SX-F US/EU 18094920-940113
