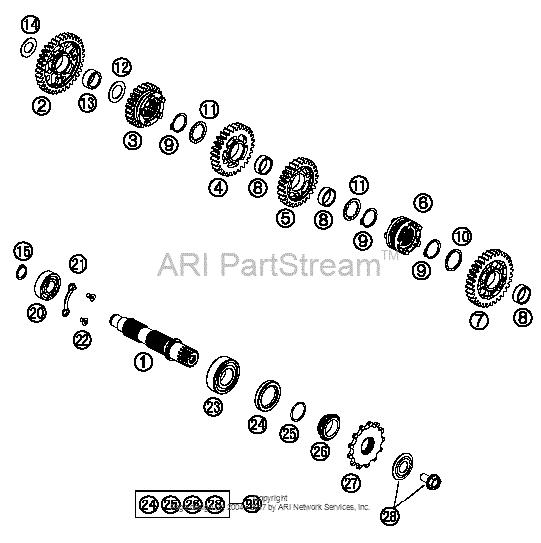

Transmission Ii - Countershaft Diagram KTM 450 450 SX-F
- Year
- 2015
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 SX-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78033010000 Countershaft 0808 |
78033010000 |
US $87.55 |
||
|
2
|
2
78933011000 Idler Gear 1.g08 |
78933011000 |
US $86.46 |
||
|
3
|
3
78933015000 Sliding Gear 5.g08 |
78933015000 |
US $82.28 |
||
|
4
|
4
78933013000 Idler Gear 3.g08 |
78933013000 |
US $85.19 |
||
|
5
|
5
78933014000 Idler Gear 4.g08 |
78933014000 |
US $82.08 |
||
|
6
|
6
78933018000 Shift Collar08 |
78933018000 |
US $95.12 |
||
|
7
|
7
78933012000 Idler Gear 2.g08 |
78933012000 |
US $85.54 |
||
|
8
|
8
405222611
Needle Bearing
08 |
405222611 |
— | ||
|
9
|
9
471250120
Circlip
08 |
471250120 |
— | ||
|
10
|
10
78033031000 Stop disk 26 x 32 x 1,508 |
78033031000 |
US $2.28 |
||
|
11
|
11
78033033000 Stop disk 23 x 32 x 1,508 |
78033033000 |
US $2.87 |
||
|
12
|
12
59033080000 Shim 20X32X108 |
59033080000 |
US $1.73 |
||
|
13
|
13
405202612
Needle Bearing
08 |
405202612 |
— | ||
|
14
|
14
56033030000 Stop Disc 17,2X30X108 |
56033030000 |
US $3.83 |
||
|
15
|
15
471170015
Circlip Din 0471-17X1, 5
08 |
471170015 |
— | ||
|
20
|
20
625062035
Ball Bearing 6203 C3 Ntn
08 |
625062035 |
— | ||
|
21
|
21
78033132000 Tab washer bearing count.shaft08 |
78033132000 |
US $4.15 |
||
|
22
|
22
0019050106S Int. Torx Flat Head M5X10 10.908 |
0019050106S |
US $0.27 |
||
|
23
|
23
49030023000 Cyl.roll Bearing Nj20508 |
49030023000 |
US $67.86 |
||
|
24
|
24
760324571
Seal Ring 32X45X7 Bslnbr
08 |
760324571 |
— | ||
|
25
|
25
770020220
O-Ring 25,12X1,78 Nbr70
08 |
770020220 |
— | ||
|
26
|
26
78133014000 Spacer Sleeve Counter08 |
78133014000 |
US $31.20 |
||
|
27
|
27
50033029013
Sprocket 13T
08 |
50033029013 |
— | ||
| replacement | |||||
|
27
|
27
79233029013 Sprocket 13T08 |
79233029013 |
US $33.08 |
||
|
27
|
27
50033029014
Front sprocket 14-t
08 |
50033029014 |
— | ||
| replacement | |||||
|
27
|
27
79233029014 Sprocket 14T08 |
79233029014 |
US $34.80 |
||
|
27
|
27
50033029015 Front sprocket 15-tAs Required |
50033029015 |
US $33.59 |
||
|
28
|
28
59033034044 Screw 10.9+Spring WasherAs Required |
59033034044 |
US $9.01 |
||
|
99
|
99
50000941
Ktm Countershaft Repair Kit 4-Stroke
As Required |
50000941 |
— | ||
