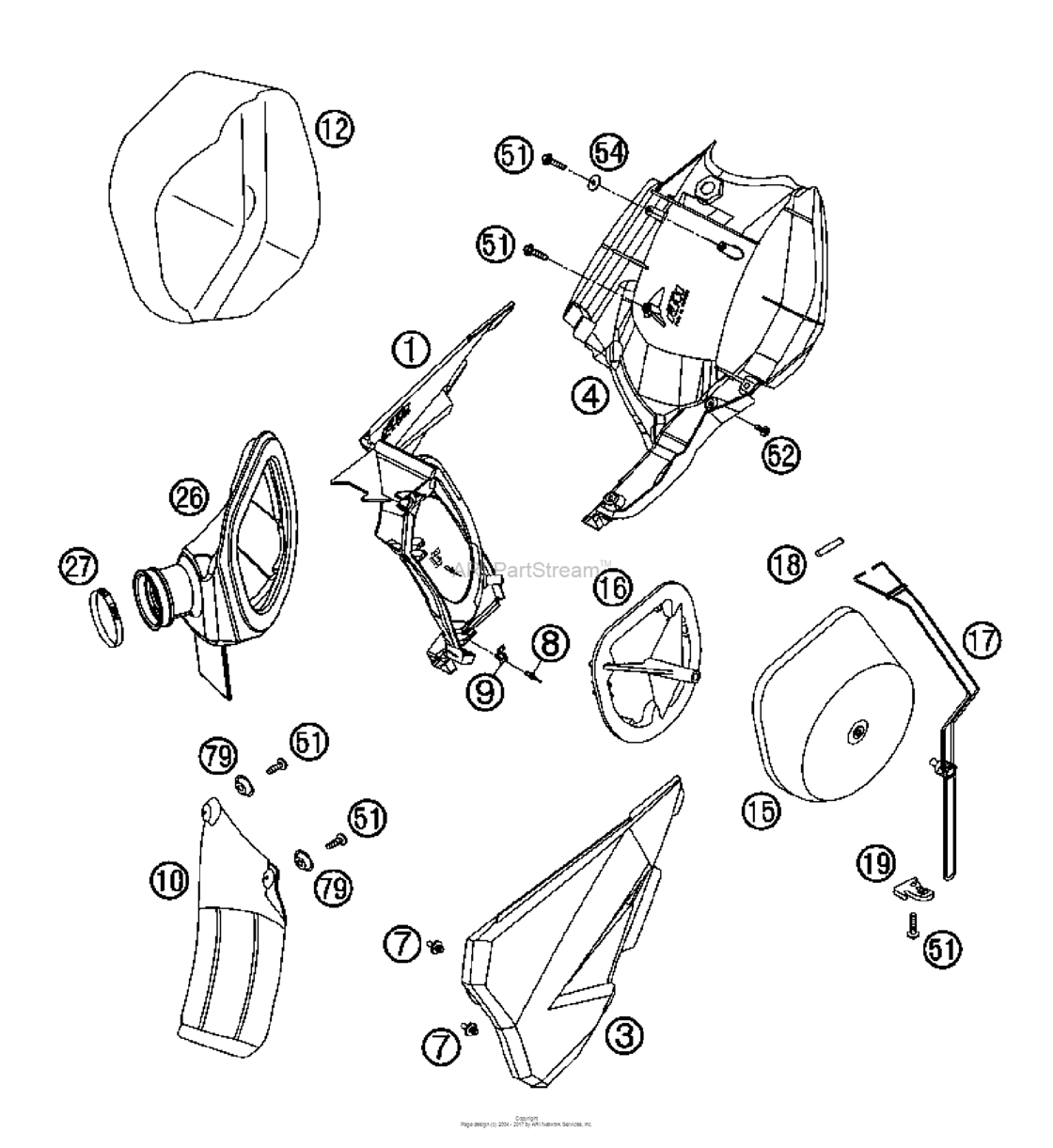

Air Filter Box Diagram KTM 450 450 XC
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54806001051 Filter wall 0303 |
54806001051 |
US $35 |
||
|
3
|
3
54806003000 Filter box cover 0303 |
54806003000 |
US $46.61 |
||
|
4
|
4
54806001052 Rear part filter box 0303 |
54806001052 |
US $39.76 |
||
|
7
|
7
54806008051 Quick release-nipple 0303 |
54806008051 |
US $2.04 |
||
|
8
|
8
54806108052 Blind rivet 3,3x9,7 grooved 0404 |
54806108052 |
US $1.21 |
||
|
9
|
9
54806008050 Quick release-spring hanger04 |
54806008050 |
US $1.33 |
||
|
10
|
10
50306010000 Fender for filter box '98'98 |
50306010000 |
US $19.58 |
||
|
12
|
12
50306012000
Throttle cap 125-380egs cpl.98
98 |
50306012000 |
— | ||
|
15
|
15
59006015000 Air filter racing 20012001 |
59006015000 |
US $40.80 |
||
|
16
|
16
59006016000
Filter carrier rac. 2001
2001 |
59006016000 |
— | ||
|
17
|
17
50306017000 Filter support cpl.2-stroke'98'98 |
50306017000 |
US $28.54 |
||
|
18
|
18
50306018000 Filter support bush 125-380'98'98 |
50306018000 |
US $7.33 |
||
|
19
|
19
50306019000
Fasten. device filter support
'98 |
50306019000 |
— | ||
|
26
|
26
59406026000 Carburetor connection boot'98 |
59406026000 |
US $58.85 |
||
|
27
|
27
46005058000
Hose Clamp 45-65Mm
'98 |
46005058000 |
— | ||
| replacement | |||||
|
27
|
27
78006027000 Hose Clamp 45-65Mm'98 |
78006027000 |
US $3.52 |
||
|
51
|
51
0017060203
Screw For Plastic K60X20 Sw6
WS=6 |
0017060203 |
— | ||
| replacement | |||||
|
51
|
51
0017060205 Screw For Plastic K60X20 Sw6WS=6 |
0017060205 |
US $2.24 |
||
|
52
|
52
0009050103
Special screw m 5,0x10
WS=6 |
0009050103 |
— | ||
| replacement | |||||
|
52
|
52
0009050106 Ejot Spiral Screw Sf M5X10-KWS=6 |
0009050106 |
US $2.60 |
||
|
54
|
54
0021060003 Washer Din9021-A 6,4WS=6 |
0021060003 |
US $3.26 |
||
|
79
|
79
72210079000 BucketWS=6 |
72210079000 |
US $2.72 |
||
