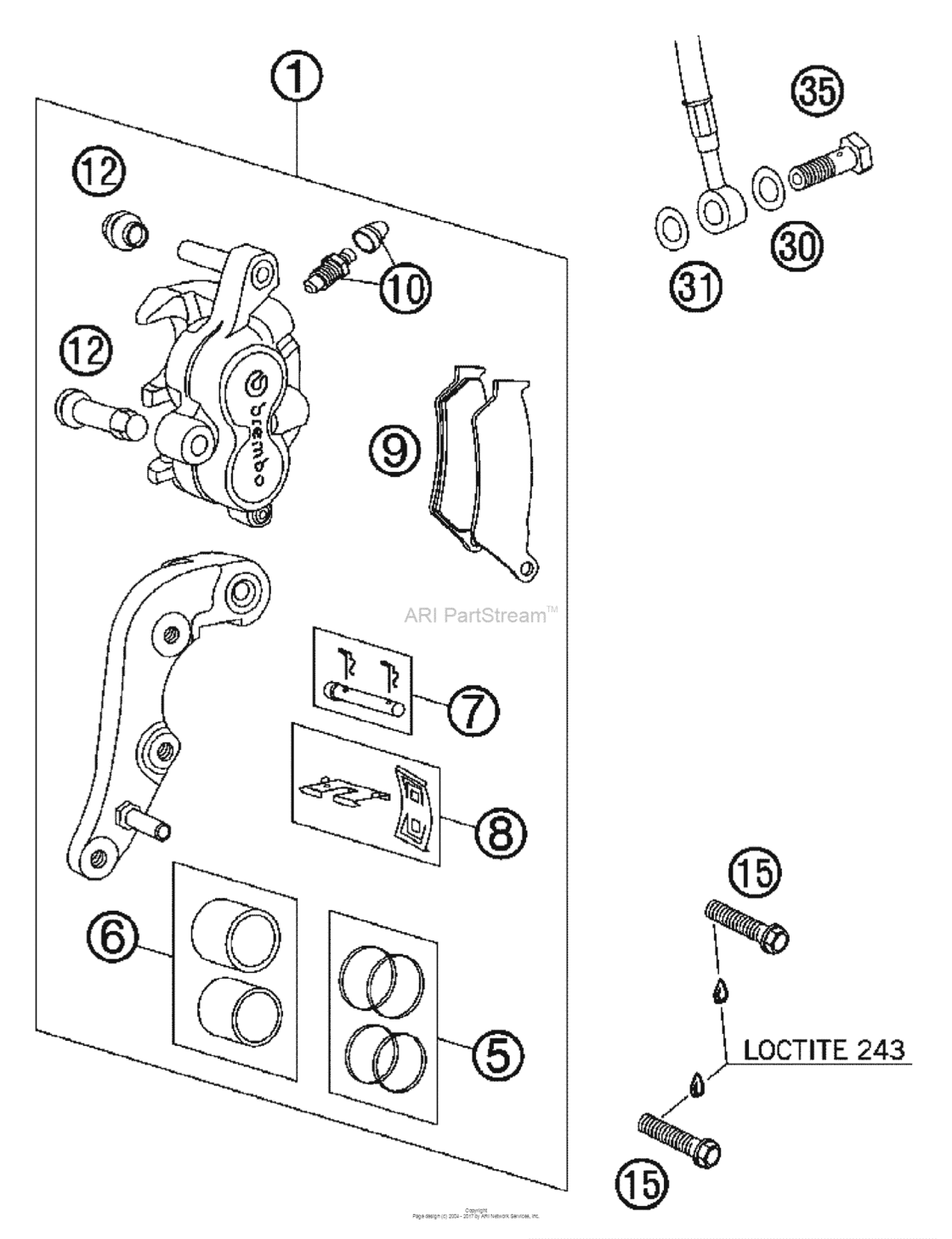

Brake Caliper Front Diagram KTM 450 450 XC
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59013015144
Brake Cal. Fr. - Without Pads
2000 |
59013015144 |
— | ||
| replacement | |||||
|
1
|
1
59013015101 Brake cal. fr. - without pads2000 |
59013015101 |
US $272.22 |
||
|
5
|
5
54613205000 Repair kit 28mm2000 |
54613205000 |
US $20.21 |
||
|
6
|
6
54613206000 Repair kit piston 28mm2000 |
54613206000 |
US $40.29 |
||
|
7
|
7
54613210100 Bolt Cpl. 6X562000 |
54613210100 |
US $17.19 |
||
|
8
|
8
54613212000 Retaining Plate Set Brembo2000 |
54613212000 |
US $27.20 |
||
|
9
|
9
50313030100
Brakep.set Fr.toshiba Tt2701Hh
2000 |
50313030100 |
— | ||
| replacement | |||||
|
9
|
9
50313030200 Brakep.set Fr.toshiba Tt2701Hh2000 |
50313030200 |
US $104.89 |
||
|
10
|
10
60013020000 Bleeder Screw With Cap2000 |
60013020000 |
US $6.27 |
||
|
12
|
12
54613218000 Cup Set Short2000 |
54613218000 |
US $25.72 |
||
| replacement | |||||
|
12
|
12
54613218100 CUP SET SHORT2000 |
54613218100 |
US $25.72 |
||
|
15
|
15
0015080353 Hh Collar Screw M 8X35 Ws=10WS=10 |
0015080353 |
US $7.12 |
||
|
30
|
30
42013226000 Cu-Seal Ring Din7603-10X16X1WS=10 |
42013226000 |
US $4.10 |
||
|
31
|
31
42013026000 Cu-seal ring din7603-10x16x1,5WS=10 |
42013026000 |
US $2.24 |
||
|
35
|
35
50213025000 Hollow Screw M10X1X19WS=10 |
50213025000 |
US $5.39 |
||
