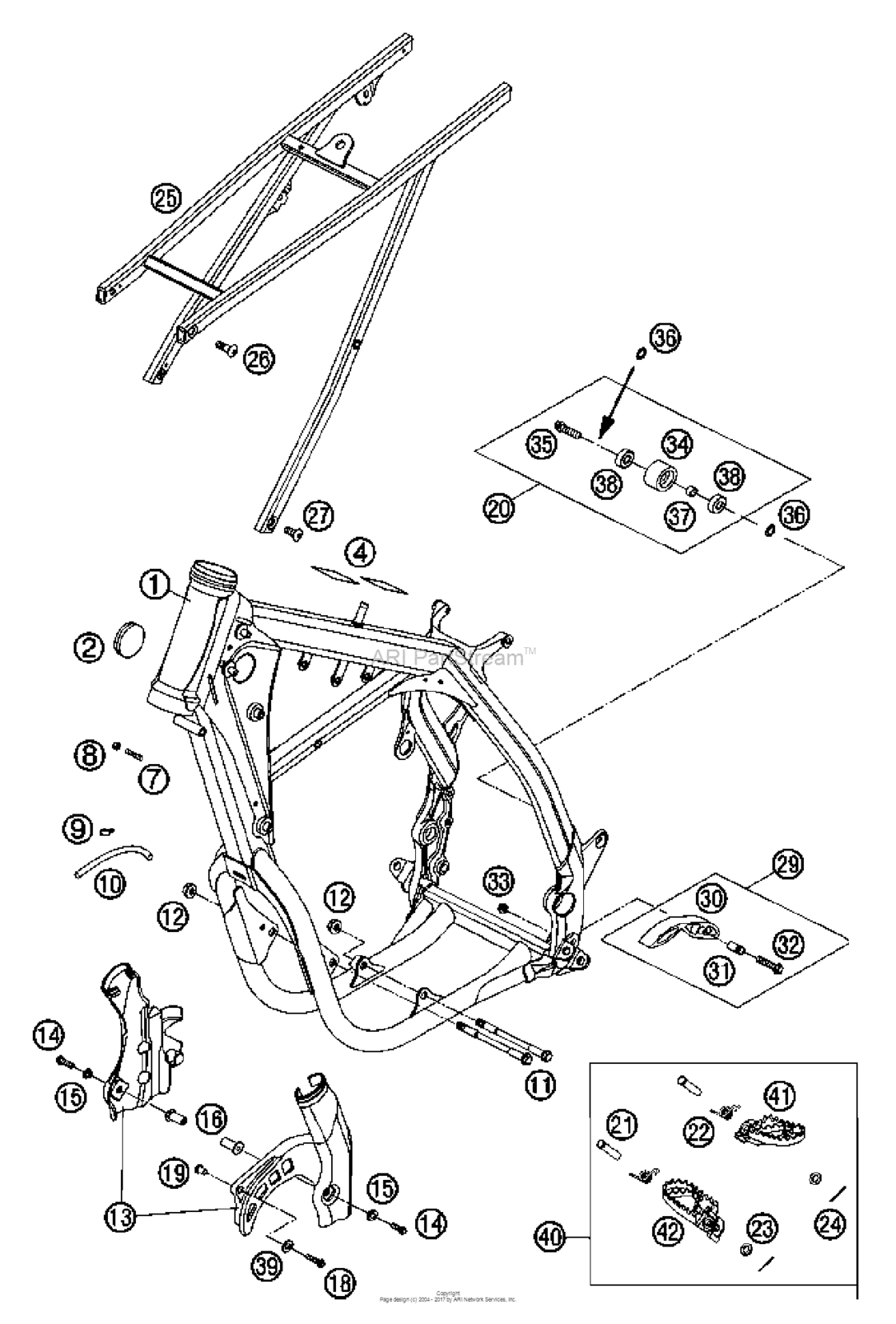

Frame, Sub Frame Diagram KTM 450 450 XC
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5940310120030 Frame exc rac.usa "db06" 0606 |
5940310120030 |
US $960.87 |
||
|
2
|
2
54606004000 Plug 37mm06 |
54606004000 |
US $1.89 |
||
|
4
|
4
50307012000 Adh. foil transp. 80x80 mm 0404 |
50307012000 |
US $2.02 |
||
|
7
|
7
59001037000 Special screw m8x26 ws=10WS=10 |
59001037000 |
US $2.09 |
||
|
8
|
8
0934080003 Hexagon Nut Din0934-M 8WS=10 |
0934080003 |
US $3.26 |
||
|
9
|
9
50303089000 Angle piece '97'97 |
50303089000 |
US $4.52 |
||
|
10
|
10
55007016001 Pvc-hose 7x10 per meter'97 |
55007016001 |
US $5.98 |
||
|
11
|
11
59003013000 Enginebrac.screw m10x123 ws=13WS=13 |
59003013000 |
US $13.57 |
||
|
12
|
12
54310086100 Self locking nut m10 cu ws=14WS=14 |
54310086100 |
US $2.55 |
||
|
13
|
13
54803094100 Frame protection set 0505 |
54803094100 |
US $17.80 |
||
|
14
|
14
0014050253 Hh collar screw m 5x25 ws=6WS=6 |
0014050253 |
US $2.57 |
||
|
15
|
15
54803092060 Bush f. frame protection 0303 |
54803092060 |
US $3.43 |
||
|
16
|
16
54803092050 Blind plug-in nut m5 wn 22a 0303 |
54803092050 |
US $4.76 |
||
|
18
|
18
0015060353
Hh collar screw m 6x35 ws=8
WS=8 |
0015060353 |
— | ||
| replacement | |||||
|
18
|
18
0025060356 Hh collar screw m6x35 tx30WS=8 |
0025060356 |
US $6.15 |
||
|
19
|
19
59030060050 Bushing F. Sprocket Cover RacWS=8 |
59030060050 |
US $2.09 |
||
|
20
|
20
50203053010 Chain roll 30mm cpl. 0606 |
50203053010 |
US $25.62 |
||
|
21
|
21
54803044000 Pin For Foot Ped 51.5X9.8 Mm03 |
54803044000 |
US $10.98 |
||
|
22
|
22
54603041000 Footrest Spring L/s & R/s03 |
54603041000 |
US $3.52 |
||
|
23
|
23
0125100003 Washer Din0125-A10,503 |
0125100003 |
US $1.19 |
||
|
24
|
24
0094032253 Pin din0094-3,2x25 steel03 |
0094032253 |
US $1.12 |
||
| replacement | |||||
|
24
|
24
0094032250 Pin din0094-3,2x25 steel03 |
0094032250 |
US $1.12 |
||
|
25
|
25
59403002344 Sub frame cpl. exc+mxc "m5" 0505 |
59403002344 |
US $375.94 |
||
|
26
|
26
54510052100
Counter-Sunk Screw Isa45 M8X26
WS=6 |
54510052100 |
— | ||
| replacement | |||||
|
26
|
26
0019080266S Counter-sunk screw isa45 m8x26WS=6 |
0019080266S |
US $2.23 |
||
|
27
|
27
54610052000 Sprocket screw-ah m8x20 ws=6WS=6 |
54610052000 |
US $2.35 |
||
| replacement | |||||
|
27
|
27
0019080206 Counter-sunk screw isa45 m8x20WS=6 |
0019080206 |
US $1.82 |
||
|
29
|
29
51103053010 Chain sliding below cplWS=6 |
51103053010 |
US $8.99 |
||
|
30
|
30
51103053000 Chain sliding piece below '97'97 |
51103053000 |
US $13.24 |
||
|
31
|
31
51103053051 Bushing 8,2x10x20'97 |
51103053051 |
US $3.06 |
||
|
32
|
32
0015080353 Hh Collar Screw M 8X35 Ws=10WS=10 |
0015080353 |
US $7.12 |
||
|
33
|
33
54310086200 Self Locking Nut M8 10.910.9 |
54310086200 |
US $1.56 |
||
|
34
|
34
50203053000 Chain roll d=30mm10.9 |
50203053000 |
US $7.36 |
||
|
35
|
35
0015080303
Hh Collar Screw M8X30 Tx40
WS=10 |
0015080303 |
— | ||
| replacement | |||||
|
35
|
35
0025080306 Hh collar screw m8x30 tx40WS=10 |
0025080306 |
US $3.89 |
||
|
36
|
36
36003014000 Lock washer 8mmWS=10 |
36003014000 |
US $0.46 |
||
|
37
|
37
74003021000 Bushing 8.2 x 12 x 6WS=10 |
74003021000 |
US $2.14 |
||
|
38
|
38
0625006087 Grooved Ball Bear. 608 2Rs C3WS=10 |
0625006087 |
US $19.19 |
||
|
39
|
39
0125060003 Washer Din0125-A 6,4WS=10 |
0125060003 |
US $0.37 |
||
|
40
|
40
5030314013390 Footpeg l.+r. cpl. 0303 |
5030314013390 |
US $172.55 |
||
|
41
|
41
59003040250 Footrest L/s 0802 |
59003040250 |
US $70.60 |
||
| replacement | |||||
|
41
|
41
78003040050 Footrest l/s 0802 |
78003040050 |
US $44.12 |
||
|
42
|
42
59003041250 Footrest R/s 0802 |
59003041250 |
US $69.17 |
||
| replacement | |||||
|
42
|
42
78003041050 Footrest r/s 0802 |
78003041050 |
US $44.12 |
||
