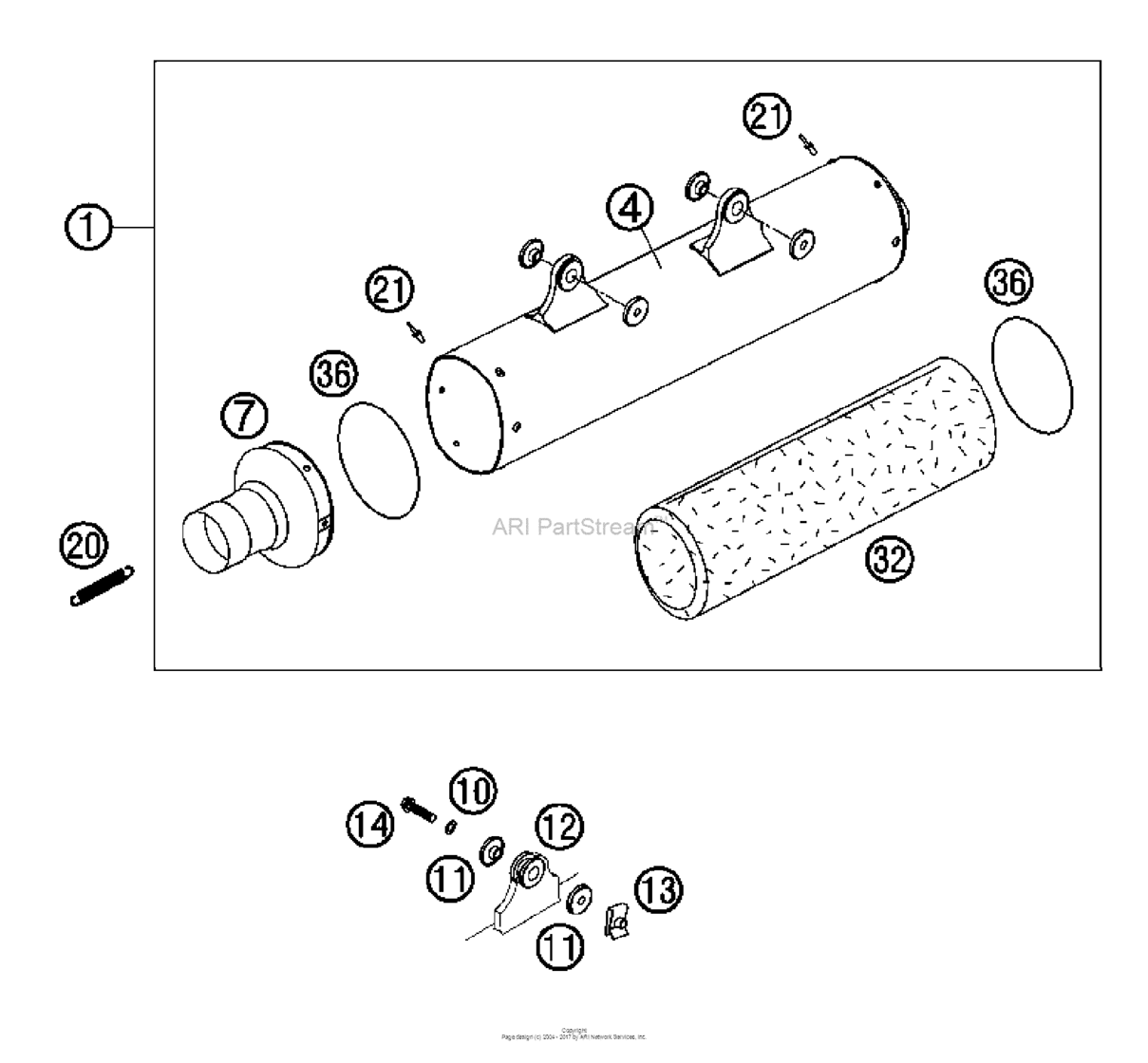

Silencer Diagram KTM 450 450 XC
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77005079000 Silencer cpl. 20052005 |
77005079000 |
US $587.20 |
||
|
4
|
4
59405079050 Silencer housing cpl. sx 0303 |
59405079050 |
US $155.67 |
||
|
7
|
7
59405079009 Silencener connect. cap cpl.0303 |
59405079009 |
US $61.74 |
||
|
10
|
10
0137060003 Spring Washer Din0137-B 603 |
0137060003 |
US $0.43 |
||
|
11
|
11
54605069000
Bushing 7,5x12x28x7,8 '96
'96 |
54605069000 |
— | ||
| replacement | |||||
|
11
|
11
77205169000 Bushing 7.5X12X28X8.3 11'96 |
77205169000 |
US $7.82 |
||
|
12
|
12
54605068000
Exhaust bracket rubber black
'96 |
54605068000 |
— | ||
| replacement | |||||
|
12
|
12
77205068000 Damp. Compon. Black'96 |
77205068000 |
US $8.43 |
||
|
13
|
13
54603048100 Range Change Metal Nut M6'96 |
54603048100 |
US $5.27 |
||
|
14
|
14
0015060303
Hh Collar Screw M6X30 Tx30
WS=8 |
0015060303 |
— | ||
| replacement | |||||
|
14
|
14
0025060306 Hh collar screw m6x30 tx30WS=8 |
0025060306 |
US $3.96 |
||
|
20
|
20
50305016000
Ten.spring L=62Mm Ey.moveable
WS=8 |
50305016000 |
— | ||
| replacement | |||||
|
20
|
20
A46005016000 TEN.SPRING L=62MM EY.MOVEABLEWS=8 |
A46005016000 |
US $5.88 |
||
|
21
|
21
0011480800 Dummy Rivet 4,8X 8 NiroWS=8 |
0011480800 |
US $2.35 |
||
|
32
|
32
59005078550
Stuffing Yarn 495 Gram
WS=8 |
59005078550 |
— | ||
| replacement | |||||
|
32
|
32
77005078495 Stuffing yarn 495 gramWS=8 |
77005078495 |
US $92.06 |
||
|
36
|
36
0770740015 O-ring 74,00x1,50 fkm 75shWS=8 |
0770740015 |
US $2.53 |
||
