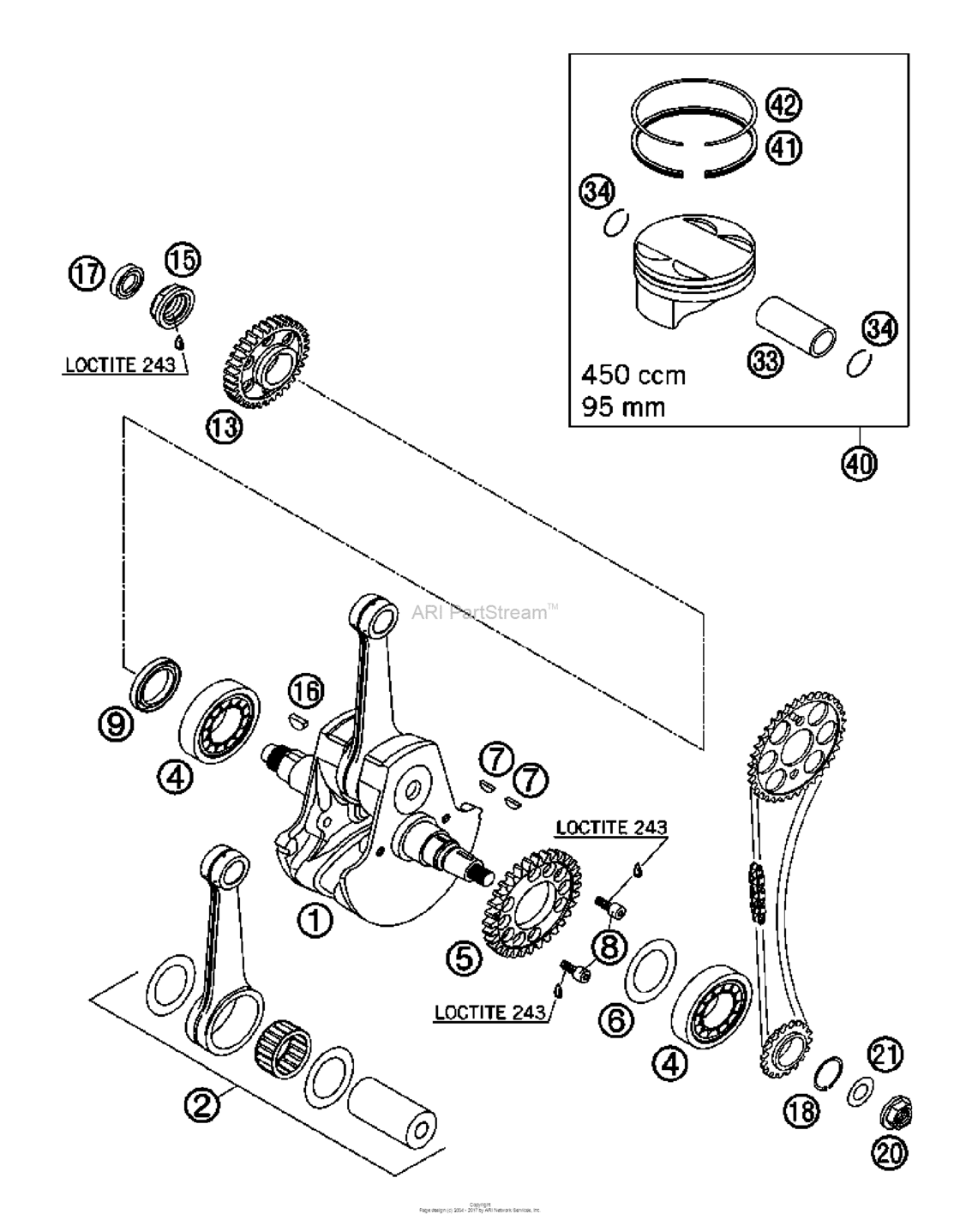

Crankshaft, Piston Diagram KTM 450 450 XC
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59430018100 Crankshaft 0606 |
59430018100 |
US $830.93 |
||
|
2
|
2
59430015044 Con.rod rep.set 450 rac. 0303 |
59430015044 |
US $494.36 |
||
|
4
|
4
80030019000 Cyl.rollbear.nj206ecp/c3hvc05803 |
80030019000 |
US $96.10 |
||
|
5
|
5
59030055000 Drive gear 32-t f.balanc.shaft03 |
59030055000 |
US $113.87 |
||
|
6
|
6
56030081000 Thrust washer 30,5x45x0,1003 |
56030081000 |
US $0.43 |
||
|
6
|
6
56030081100 Thrust washer 30,7x47x0,1503 |
56030081100 |
US $0.94 |
||
|
6
|
6
56030081200 Thrust washer 30,5x45x0,3003 |
56030081200 |
US $1.21 |
||
|
7
|
7
0888030050 Woodruff Key Din6888-3X5X1303 |
0888030050 |
US $2.60 |
||
|
8
|
8
0984060162 Ah screw din7984-m 6x1603 |
0984060162 |
US $1.05 |
||
|
9
|
9
0760304772 Sh.seal Ring 30X47X7 Bsl Viton03 |
0760304772 |
US $26.23 |
||
|
13
|
13
59032000033 Primary gear 33-t03 |
59032000033 |
US $113.22 |
||
|
15
|
15
59030029100 Hh nur m20x1,5 ws=27 left03 |
59030029100 |
US $6.70 |
||
|
16
|
16
6946005 Woodruff Key 5X6,5 Harded03 |
6946005 |
US $0.92 |
||
|
17
|
17
0760142460 Shaft seal ring 14x24x6 b03 |
0760142460 |
US $11.70 |
||
|
18
|
18
0471250120 Circlip Din0471-25X1,203 |
0471250120 |
US $1.31 |
||
|
20
|
20
49030021000 Collar nut m12x1 r/s03 |
49030021000 |
US $10.57 |
||
|
21
|
21
0137120000 Spring washer din0137-b1203 |
0137120000 |
US $0.39 |
||
|
33
|
33
59430033000 Piston pin bolt 20x12x45,503 |
59430033000 |
US $19.65 |
||
|
34
|
34
59430174000 Circlip 20x1,603 |
59430174000 |
US $8.59 |
||
|
40
|
40
59430107100I
Piston cpl. 450 d=95mm si.1 05
05 |
59430107100I |
— | ||
|
40
|
40
59430107100II
Piston cpl. 450 d=95mm si.2 05
05 |
59430107100II |
— | ||
|
41
|
41
59430031000 Oil scraper ring 95/88,5x2,505 |
59430031000 |
US $24.50 |
||
|
42
|
42
59030032000 Rectangular ring 95/87,2x1,2505 |
59030032000 |
US $40.41 |
