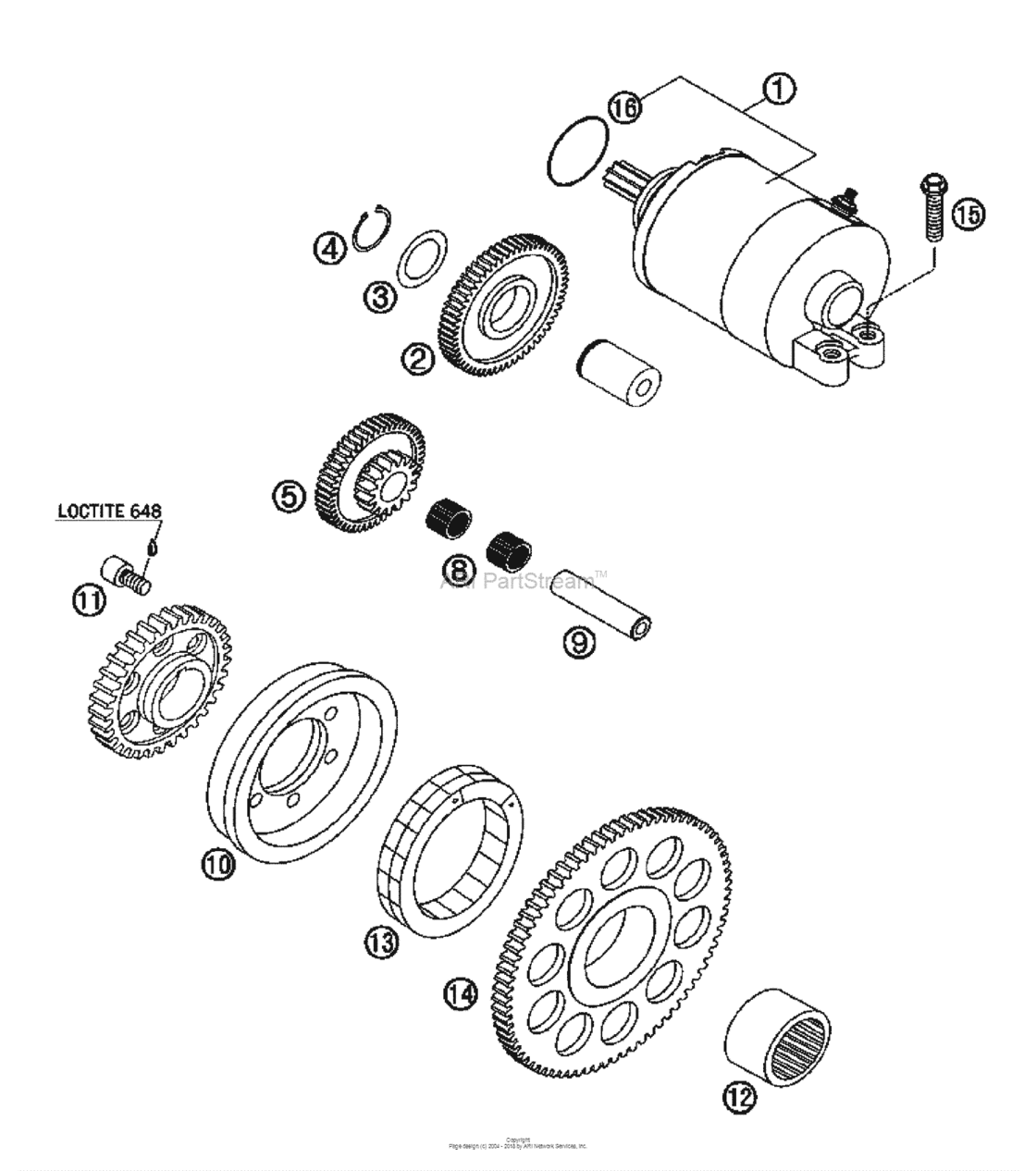

Electric Starter Diagram KTM 450 450 XC
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59040001000 E-starter engine kpl. 0,45 kw2000 |
59040001000 |
US $272.46 |
||
|
2
|
2
59040022258 Gear wheel2000 |
59040022258 |
US $51.94 |
||
|
3
|
3
54633090000 Stop disk 17,2x25x12000 |
54633090000 |
US $2.94 |
||
|
4
|
4
0471170010 Circlip Din0471-17X12000 |
0471170010 |
US $1 |
||
|
5
|
5
59040016000 Torque limiter 0606 |
59040016000 |
US $124.66 |
||
|
8
|
8
0405101310 Needle Bearing K 10X13X10 0202 |
0405101310 |
US $6.63 |
||
|
9
|
9
59040029000 Bearing bolt02 |
59040029000 |
US $9.18 |
||
|
10
|
10
59040025000
Free wheel hub
02 |
59040025000 |
— | ||
|
11
|
11
0912060106 Ah screw din0912-m 6x10 10.910.9 |
0912060106 |
US $0.43 |
||
|
12
|
12
0618301617 Needle bearing hk 3016 b10.9 |
0618301617 |
US $11.80 |
||
|
13
|
13
58440026000 Free-wheel fwd 332008 bls10.9 |
58440026000 |
US $121.24 |
||
|
14
|
14
59040020175 Freewheel gear10.9 |
59040020175 |
US $106.71 |
||
|
15
|
15
0015060203
Hh Collar Screw M 6X20 Ws=8
WS=8 |
0015060203 |
— | ||
| replacement | |||||
|
15
|
15
0025060206 Hh collar screw m6x20 tx30WS=8 |
0025060206 |
US $1.97 |
||
|
16
|
16
0770250030 O-ring 25,00x3,00 nbr 7070 |
0770250030 |
US $4.35 |
||
|
17
|
17
59040034000
Cap cover
70 |
59040034000 |
— | ||
|
18
|
18
0015060123
Hh Collar Screw M 6X12 Ws=8
WS=8 |
0015060123 |
— | ||
| replacement | |||||
|
18
|
18
0025060126 Hh collar screw m6x12 tx30WS=8 |
0025060126 |
US $3.96 |
||
|
19
|
19
0125060003 Washer Din0125-A 6,4WS=8 |
0125060003 |
US $0.37 |
||
