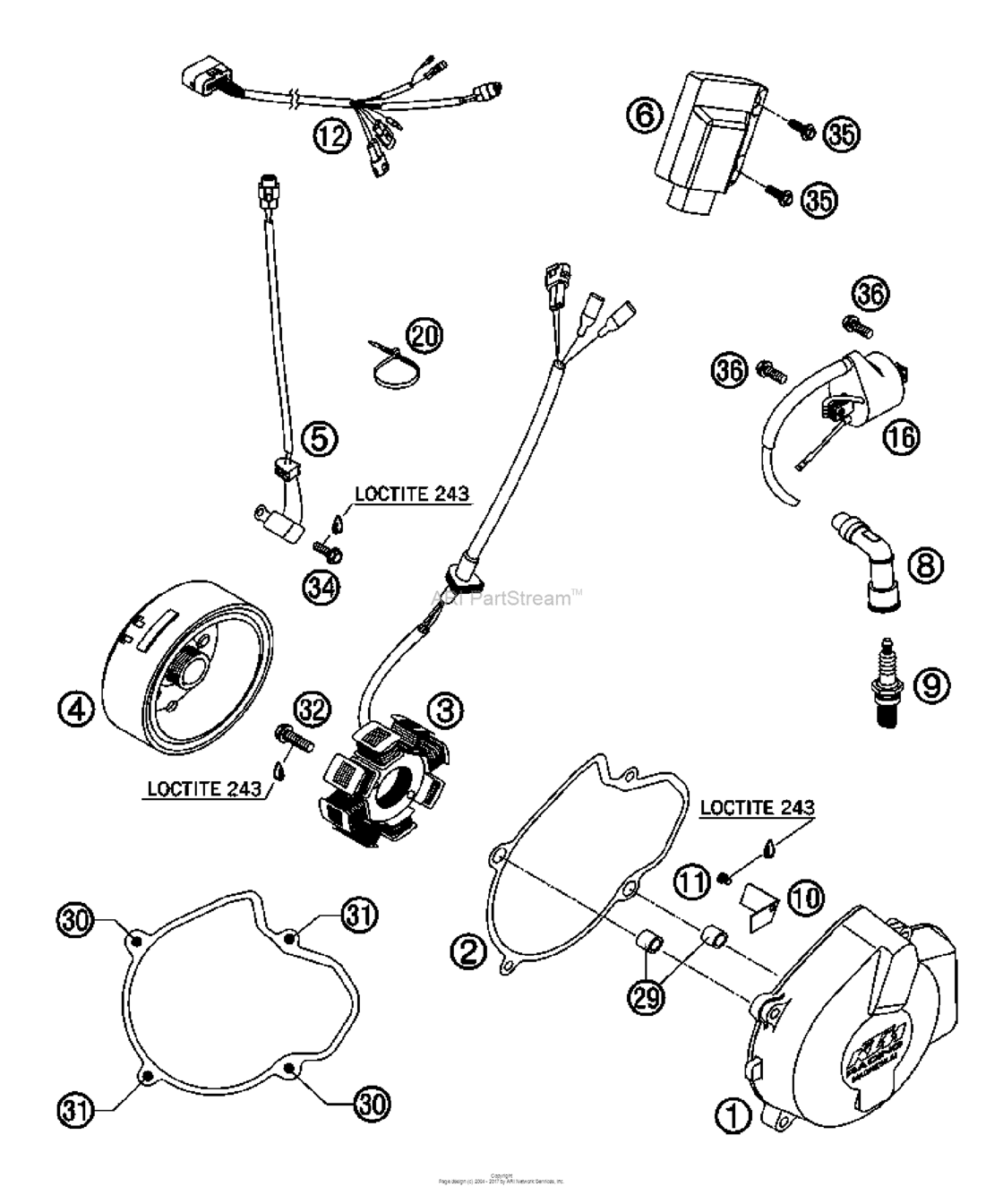

Ignition System Diagram KTM 450 450 XC
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59030002000 Ignition cover 4k3b 20002000 |
59030002000 |
US $134.81 |
||
|
2
|
2
59030040000 Ignition cover gasket 0,8mm2000 |
59030040000 |
US $17.03 |
||
|
3
|
3
59039104200 Stator 4-k3-b 0505 |
59039104200 |
US $198.27 |
||
|
4
|
4
59039105200 Flywheel 4k3b racing 20042004 |
59039105200 |
US $271.49 |
||
|
5
|
5
59039034000 Pulser coil kokusan 4k3-a/b2004 |
59039034000 |
US $114.99 |
||
|
6
|
6
59439031000
Digital Box 450 Exc
2005 |
59439031000 |
— | ||
| replacement | |||||
|
6
|
6
59439031010 Digital box 450 exc2005 |
59439031010 |
US $295.26 |
||
|
8
|
8
59039090100
Spark plug connect. vd05eg 03
03 |
59039090100 |
— | ||
| replacement | |||||
|
8
|
8
77139090000 Spark Plug Connector03 |
77139090000 |
US $56.17 |
||
|
9
|
9
59039093100 Spark Plug Ngk Dcpr8E 0303 |
59039093100 |
US $7.48 |
||
|
10
|
10
59030002050 Support for wire03 |
59030002050 |
US $4.85 |
||
|
11
|
11
0084040063 Cyl.head screw din0084-m 4x 6a6A |
0084040063 |
US $1.62 |
||
|
12
|
12
59439032100 Wiring harness for cdi exc 0404 |
59439032100 |
US $102.20 |
||
|
16
|
16
59039006000 Ignitioncoil "ig5128"04 |
59039006000 |
US $132.38 |
||
|
20
|
20
44011076100 Cable tie 100/2,5mm black04 |
44011076100 |
US $0.39 |
||
| replacement | |||||
|
20
|
20
44011076140 Cable tie 140/2,5mm black04 |
44011076140 |
US $0.29 |
||
|
29
|
29
49030090000 Dowel 9,8 x 7 x 1004 |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
29
|
29
49030090100 Dowel 9,8 X7X1004 |
49030090100 |
US $2.60 |
||
|
30
|
30
0015060353
Hh collar screw m 6x35 ws=8
WS=8 |
0015060353 |
— | ||
| replacement | |||||
|
30
|
30
0025060356 Hh collar screw m6x35 tx30WS=8 |
0025060356 |
US $6.15 |
||
|
31
|
31
0015060303
Hh Collar Screw M6X30 Tx30
WS=8 |
0015060303 |
— | ||
| replacement | |||||
|
31
|
31
0025060306 Hh collar screw m6x30 tx30WS=8 |
0025060306 |
US $3.96 |
||
|
32
|
32
0015060203
Hh Collar Screw M 6X20 Ws=8
WS=8 |
0015060203 |
— | ||
| replacement | |||||
|
32
|
32
0025060206 Hh collar screw m6x20 tx30WS=8 |
0025060206 |
US $1.97 |
||
|
34
|
34
0015050163 Hh Collar Screw M 5X16 Ws=8WS=8 |
0015050163 |
US $1.31 |
||
|
35
|
35
0014060103
Hh Collar Screw M6X10 Tx30
WS=8 |
0014060103 |
— | ||
| replacement | |||||
|
35
|
35
0024060106 Hh collar screw m6x10 tx30WS=8 |
0024060106 |
US $4.35 |
||
|
36
|
36
0015060163 Hh Collar Screw M 6X16 Ws=8WS=8 |
0015060163 |
US $2.23 |
||
