Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 59035007300 Radiator l/s 45.407 03 12, As Required	59035007300	US $288.97
2	2 59035008400 Radiator r/s 45.409 03 12, As Required	59035008400	US $523.29
3	3 59035024100 Radiator hose l/s rad.-cyl. 03 12, As Required	59035024100	US $6.83
4	4 59035124100 Radiator hose r/s rad.-cyl. 03 12, As Required	59035124100	US $9.06
5	5 54435024001 Hose Id 7,5 Per Meter 12, As Required	54435024001	US $27.40
6	6 59035126100 Radiator hose rad.-thermos. 04 12, As Required	59035126100	US $29.95
7	7 59035025101 Radiator hose secondary 04 12, As Required	59035025101	US $29.46
8	8 59035025100 Radiator hose thermos.-head 04 12, As Required	59035025100	US $29.19
9	9 59435017000 Thermostat 70 degree 04 12, As Required	59435017000	US $39.59
10	10 0770320020 O-ring 32,00x2,00 12, As Required	0770320020	US $2.09
11	11 0016040183 Screw for plastic d=4x18 12, As Required	0016040183	US $1.17
12	12 59435013044 Thermostat cpl. 70 degrees 04 12, As Required	59435013044	US $55.05
13	13 10001020000 Hose Clamp 18-29 12, As Required	10001020000	US $4.71
14	14 58335099000 Hose clamp gemi 10-16 12, As Required	58335099000	US $2.77
15	15 50231005000 Hose clamp ydnac 10119 11mm 12, As Required	50231005000	US $1.68
16	16 0015060123 Hh Collar Screw M 6X12 Ws=8 12, As Required	0015060123	—
	replacement
16	16 0025060126 Hh collar screw m6x12 tx30 12, As Required	0025060126	US $3.96
17	17 0021060003 Washer Din9021-A 6,4 12, As Required	0021060003	US $3.26
18	18 41001052000 Rubber Sleeve D=12Mm 12, As Required	41001052000	US $5.46
19	19 31007107001 Pvc-Hose 6X9 12, As Required	31007107001	US $5.85
	replacement
19	19 50335030001 Pvc-Hose 6X9 12, As Required	50335030001	US $5.12
20	20 59035009000 Radiat.cap 20,3psi (1,4bar) 03 12, As Required	59035009000	US $16.35
22	22 5903504000004 Radiator protection orange 03 12, As Required	5903504000004	US $6.78
22	22 5903504000030 Radiator protection black 06 12, As Required	5903504000030	US $7.46
30	30 58035045000 Thermoswitch 80-85 dg 12, As Required	58035045000	US $35.73
31	31 0603142015 Alu sealring din7603-14x20x1,5 12, As Required	0603142015	US $1.19
40	40 58435041000 Fan cpl. 12v lc4 2000 12, As Required	58435041000	US $151.67
41	41 59035044000 Fan cap 2001 12, As Required	59035044000	US $8.02
44	44 58435044050 Fan Clack Rubber 08 12, As Required	58435044050	—
	replacement
44	44 62635044050 Fan clack rubber 08 12, As Required	62635044050	US $10.17
45	45 0081500181 Screw for plastic d=5x18 12, As Required	0081500181	US $1.02
	replacement
45	45 0081050181 Screw for plastic k50x18 t20 12, As Required	0081050181	US $0.73
46	46 0017060203 Screw For Plastic K60X20 Sw6 12, As Required	0017060203	—
	replacement
46	46 0017060205 Screw For Plastic K60X20 Sw6 12, As Required	0017060205	US $2.24
47	47 59035041044 Fan cpl. racing 2001 12, As Required	59035041044	US $166.58
60	60 59011079000 Fan Wiring Harness 12, As Required	59011079000	—
	replacement
60	60 59011079100 Fan wiring harness 12, As Required	59011079100	US $42.08
61	61 58011109105 Fuse 5 a 2003 12, As Required	58011109105	US $0.95

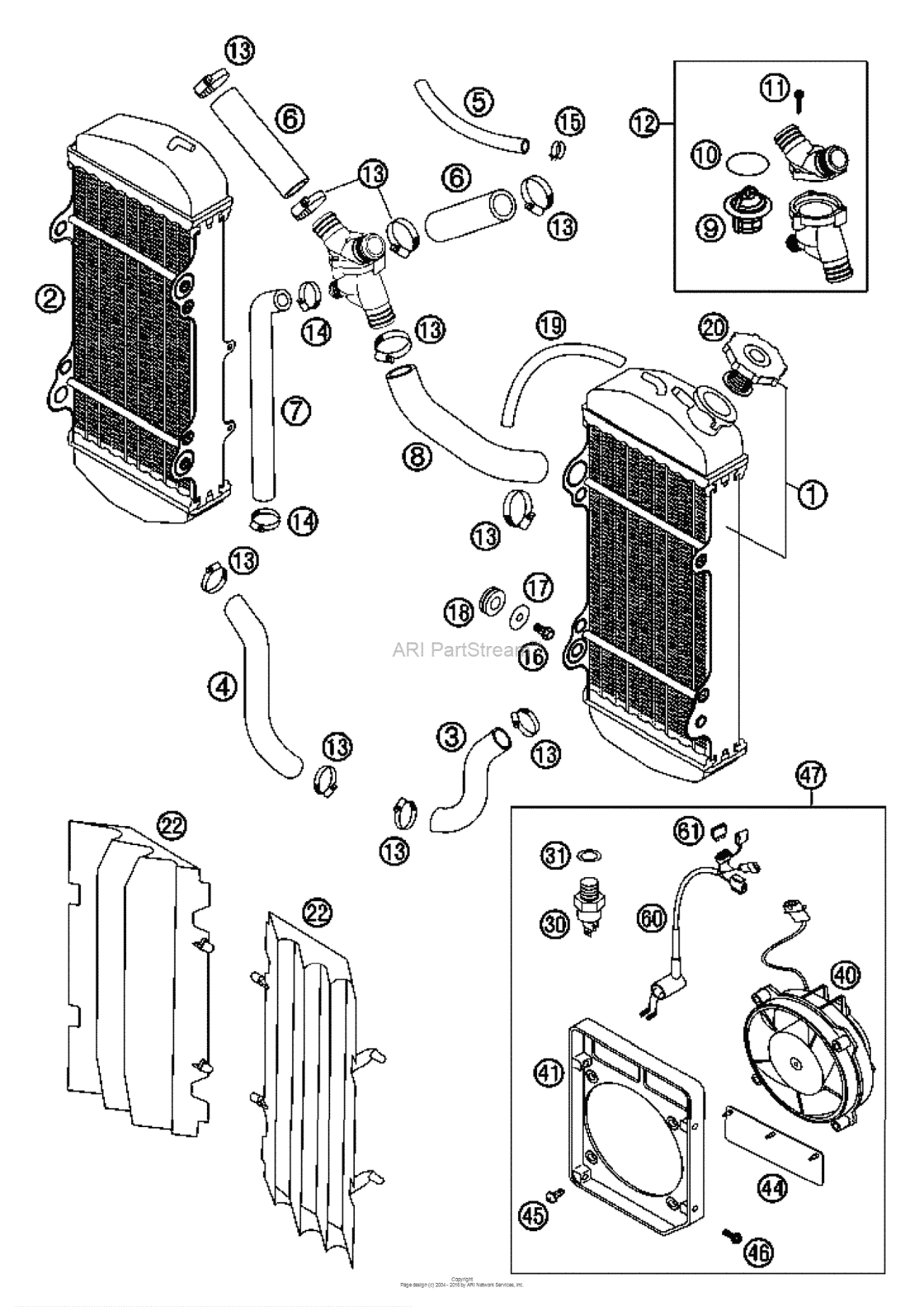

Cooling System Diagram KTM 450 450 XC-G Racing US/EU 18095570-940145

Cooling System Diagram KTM 450 450 XC-G Racing US/EU 18095570-940145
