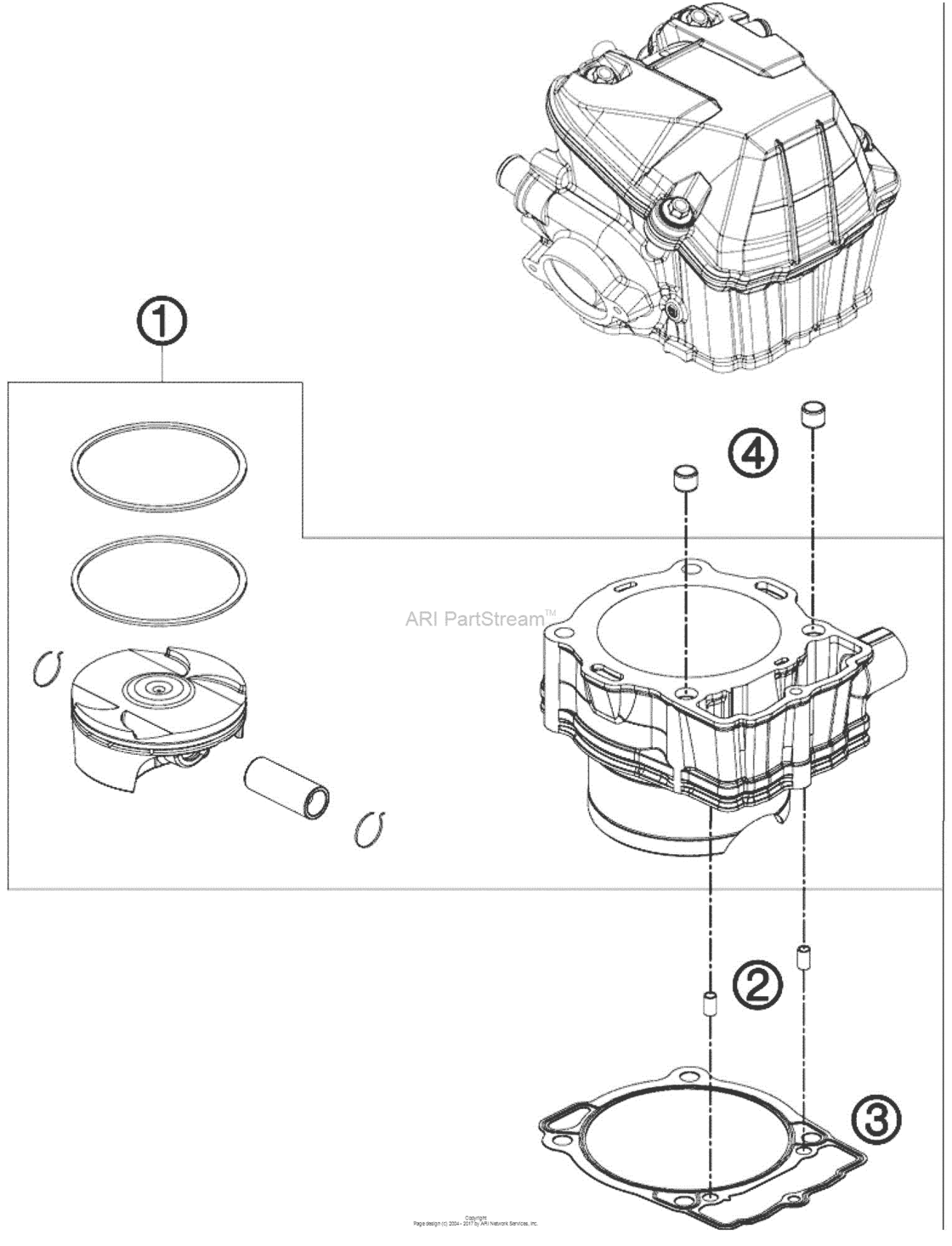

Cylinder Diagram KTM 450 450 XC-W SD
- Year
- 2010
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 XC-W SD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78030038300 Cylinder And Piston Cpl08 |
78030038300 |
US $1,011.74 |
||
|
2
|
2
59030023000 Dowel 6X8X11,508 |
59030023000 |
US $2.92 |
||
|
3
|
3
78030035000 Cylinder base gasket08 |
78030035000 |
US $8.11 |
||
|
4
|
4
58530014000 Dowel 10,2x12,5x10 20012001 |
58530014000 |
US $7.97 |
||
| replacement | |||||
|
4
|
4
58530014100 Dowel Bushing 10,2X12,5X102001 |
58530014100 |
US $2.57 |
||
