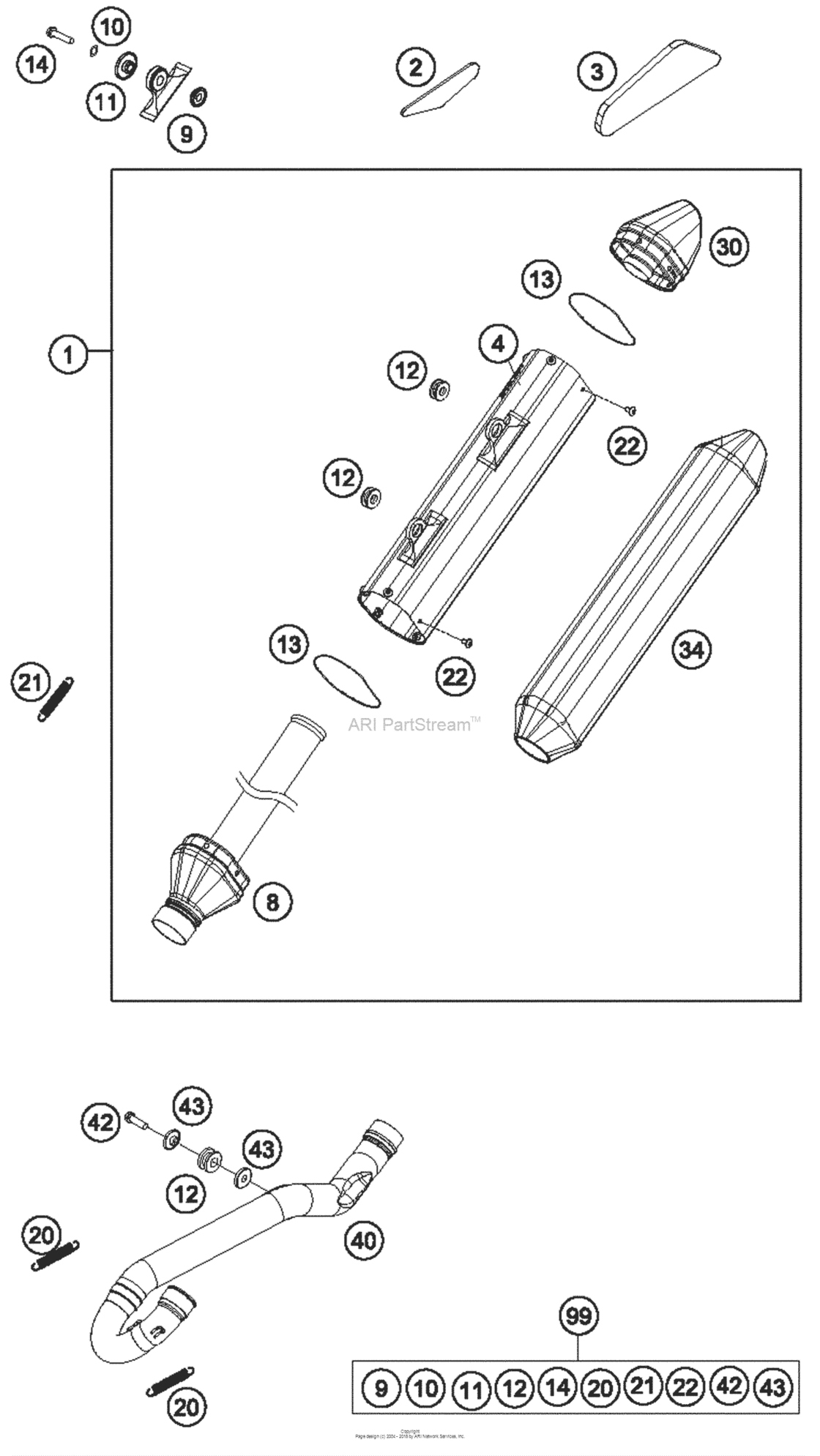

Exhaust System Diagram KTM 450 450 XC-F
- Year
- 2014
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 XC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77705079000 Silencer2014 |
77705079000 |
US $513.04 |
||
|
2
|
2
77308013050 Thermal protection foil 0707 |
77308013050 |
US $8.18 |
||
|
3
|
3
77208013050 Thermal Protection Foil07 |
77208013050 |
US $4.90 |
||
|
4
|
4
77705079080 Silencer Housing07 |
77705079080 |
US $136.68 |
||
|
8
|
8
77705079050 Connecting Cap Cpl07 |
77705079050 |
US $186.03 |
||
|
9
|
9
77205069000 Bushing 7.5X12X20X8.2 1111 |
77205069000 |
US $4.42 |
||
|
10
|
10
0137060003 Spring Washer Din0137-B 611 |
0137060003 |
US $0.43 |
||
|
11
|
11
77205169000 Bushing 7.5X12X28X8.3 1111 |
77205169000 |
US $7.82 |
||
|
12
|
12
77205068000 Damp. Compon. Black11 |
77205068000 |
US $8.43 |
||
|
13
|
13
0770740015 O-ring 74,00x1,50 fkm 75sh11 |
0770740015 |
US $2.53 |
||
|
14
|
14
0025060356 Hh collar screw m6x35 tx30TX30 |
0025060356 |
US $6.15 |
||
|
20
|
20
50305016000
Ten.spring L=62Mm Ey.moveable
TX30 |
50305016000 |
— | ||
| replacement | |||||
|
20
|
20
A46005016000 TEN.SPRING L=62MM EY.MOVEABLETX30 |
A46005016000 |
US $5.88 |
||
|
21
|
21
50305116000 Ten.spring L=75Mm Ey.moveableTX30 |
50305116000 |
US $6.14 |
||
|
22
|
22
78105081010 Screw Torx M5X10TX30 |
78105081010 |
US $0.61 |
||
|
30
|
30
77705079060 Endcap CplTX30 |
77705079060 |
US $134.30 |
||
|
34
|
34
77705078640 Rockwool PreformedTX30 |
77705078640 |
US $75.99 |
||
|
40
|
40
78905007000 Exhaust Sx-FTX30 |
78905007000 |
US $381.91 |
||
|
42
|
42
0025080256 Hh Collar Screw M8X25 Tx40TX40 |
0025080256 |
US $4.10 |
||
|
43
|
43
59405069000 Bushing for exhaust support 0303 |
59405069000 |
US $5.42 |
||
|
99
|
99
00050000815 Exhaust Parts Kit 12-14As Required, 12-13 |
00050000815 |
US $81.62 |
||
