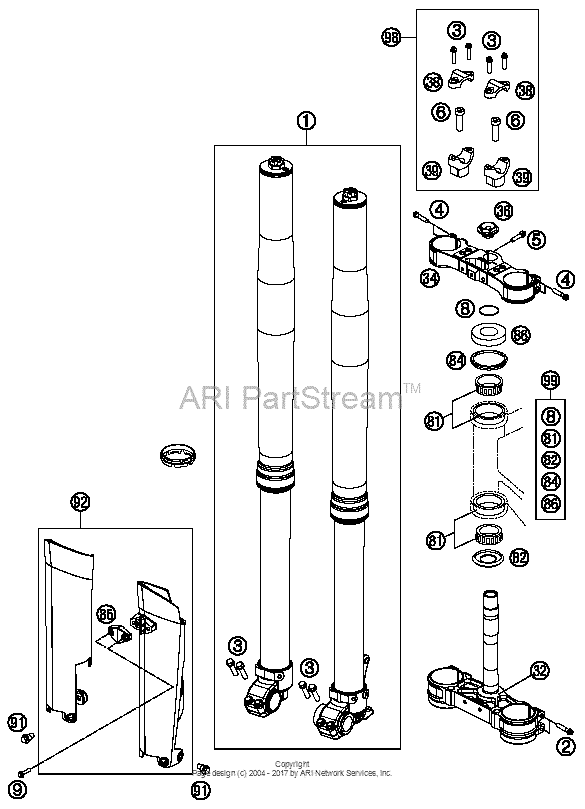

Front Fork, Triple Clamp Diagram KTM 450 450 XC-F
- Year
- 2014
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 XC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24187N7701 Fork 350/450 Xc-F 1414 |
24187N7701 |
US $2,820.86 |
||
|
2
|
2
0025080506 Hh collar screw m8x50 tx40TX40 |
0025080506 |
US $2.06 |
||
|
3
|
3
0025080256 Hh Collar Screw M8X25 Tx40TX40 |
0025080256 |
US $4.10 |
||
|
4
|
4
0025080406 Hh collar screw m8x40 tx40TX40 |
0025080406 |
US $2.62 |
||
|
5
|
5
0025080256S Hh collar screw m8x25 tx40TX40 |
0025080256S |
US $2.09 |
||
|
6
|
6
0032100356S Ah-Collar Screw M10X35 Isa45TX40 |
0032100356S |
US $3.57 |
||
|
8
|
8
0770025035 O-ring 25x3,55 nbr70 0505 |
0770025035 |
US $0.53 |
||
|
9
|
9
0017060206 Screw F. Plastic K60X20Al Sw605 |
0017060206 |
US $2.89 |
||
|
32
|
32
7770103212230 Bottom Triple Clamp Cpl05 |
7770103212230 |
US $328.70 |
||
|
34
|
34
7770103412230 Top Fork Plate X=22Mm Xc Black05 |
7770103412230 |
US $295.73 |
||
|
36
|
36
54801036000 Steer.head screw m20x1,5 ws=2705 |
54801036000 |
US $11.56 |
||
|
38
|
38
77201038100 Handlebar Clamp 28Mm Xc Not Available05 |
77201038100 |
US $23.07 |
||
|
39
|
39
59401039032 Handleb.supp. d=28mm h=32mm 05As Required, 05 |
59401039032 |
US $36.67 |
||
|
39
|
39
59401039037 Handleb.supp. d=28mm h=37mm 0505 |
59401039037 |
US $34.36 |
||
|
39
|
39
59401039042 Handleb.supp. d=28mm h=42mm 05As Required, 05 |
59401039042 |
US $36.67 |
||
|
81
|
81
54201081100 Tapered Roller Bearing Cpl. 0606 |
54201081100 |
US $53.18 |
||
|
82
|
82
54601084100 O-Ring Support W. Sealing Lip06 |
54601084100 |
US $21.28 |
||
| replacement | |||||
|
82
|
82
77701084000 O-Ring Support W. Sealing Lip06 |
77701084000 |
US $21.15 |
||
|
84
|
84
54601184000 Stearing head gasket top06 |
54601184000 |
US $7.74 |
||
|
85
|
85
7800108500028 Clamp f. speed. cable d=6mm 0808 |
7800108500028 |
US $4.10 |
||
|
86
|
86
78101086000 Steering Head Cover08 |
78101086000 |
US $5.08 |
||
|
91
|
91
59001092050 Special Screw M6X12,5 Ws=808 |
59001092050 |
US $2.35 |
||
|
92
|
92
7800109420028 Fork Protect. L/s+R/s White08 |
7800109420028 |
US $33.08 |
||
|
98
|
98
00050000921 Handlebar Support Kit D28/h37As Required |
00050000921 |
US $106.79 |
||
|
99
|
99
00050000930 Stearing Head Rep. Kit 06-15As Required, 06-13 |
00050000930 |
US $98.18 |
||
