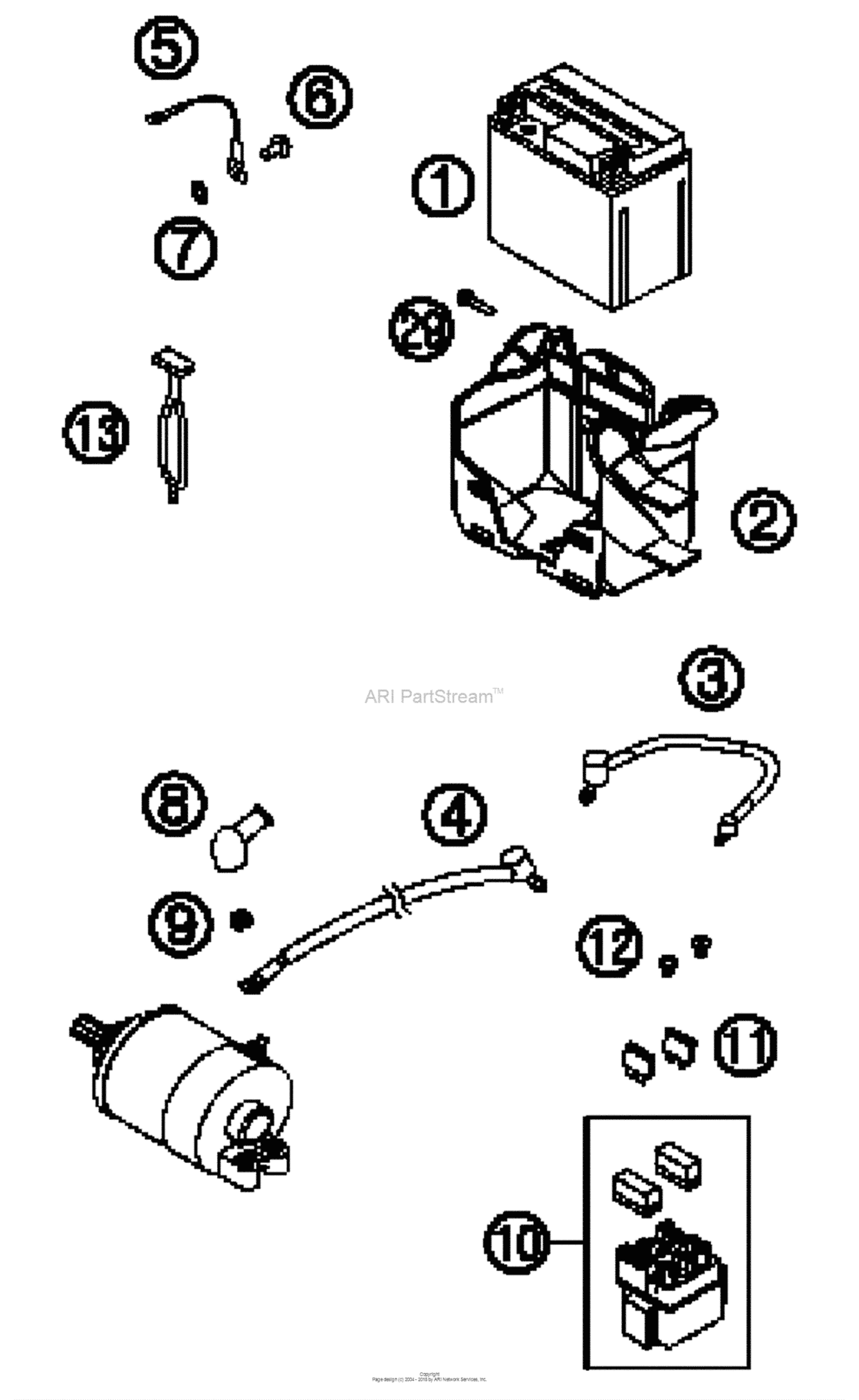

Battery Diagram KTM 450 450 XC-F
- Year
- 2015
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 XC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58511053000 Battery 12V 4Ah Ytx5L-BsAs Required |
58511053000 |
US $114.77 |
||
|
2
|
2
78111055000 Battery CaseAs Required |
78111055000 |
US $7.75 |
||
|
3
|
3
58711086000 Wiring harness battery duke'9999 |
58711086000 |
US $13.07 |
||
|
4
|
4
58411059100 Startercable 700 mm '9797 |
58411059100 |
US $20.25 |
||
|
5
|
5
58411097100 Ground cable d=6mm l=140mm '9797 |
58411097100 |
US $7.67 |
||
|
6
|
6
0009050106 Ejot Spiral Screw Sf M5X10-K97 |
0009050106 |
US $2.60 |
||
|
7
|
7
58411098100 Contact washer m6 vsv-k697 |
58411098100 |
US $0.54 |
||
|
8
|
8
77240099000 Protection Cap F. Starter Eng97 |
77240099000 |
US $6.26 |
||
|
9
|
9
0985060003 Self Lock. Nut Din0985-M 697 |
0985060003 |
US $2.60 |
||
|
10
|
10
58211058000 Starter Relay 12V '9999 |
58211058000 |
US $66.27 |
||
|
11
|
11
58011109110 Fuse 10 A 20002000 |
58011109110 |
US $0.71 |
||
|
12
|
12
0902060083 Ah oval screw iso 7380 m 6x82000 |
0902060083 |
US $0.66 |
||
|
13
|
13
50303018000 Rubber l=145mm2000 |
50303018000 |
US $6.14 |
||
|
29
|
29
0017060205 Screw For Plastic K60X20 Sw62000 |
0017060205 |
US $2.24 |
