	Description	OEM Part #	Price
1	1 7900200100030 Handlebar D=28Mm 2000	7900200100030	US $160.77
2	2 79002002000 Bar Pad 2000	79002002000	US $35.14
3	3 50311089200 Short Circuit Button 02 2000	50311089200	US $50.97
4	4 78111074000 Starter Button Grey 13 2000	78111074000	US $58.31
8	8 7770217900004 Handguards Cpl. L+R Orange 2000	7770217900004	US $56.34
13	13 79002010025 Throttle Control Casing Cpl 2000	79002010025	—
	replacement
13	13 79002010125 Throttle control casing cpl. 2000	79002010125	US $57.09
17	17 79002021000 Grip Set 2000	79002021000	—
	replacement
17	17 79002021100 Grip Set 2000	79002021100	—
18	18 44011076200 Cable tie 200/3,6mm black As Required	44011076200	US $0.39
18	18 44011076140 Cable tie 140/2,5mm black As Required	44011076140	US $0.29
30	30 54802030144 Master Cylinder Cpl As Required	54802030144	US $214.10
31	31 54802031000 Clutch lever cpl. brembo 06 As Required	54802031000	US $45.82
32	32 54802032000 Rep. kit piston 06 As Required	54802032000	US $43.21
33	33 5480200310030 Cover Hyd. Clutch Cpl. 2014 2014	5480200310030	US $40.39
34	34 54802051000 Valve 2014	54802051000	US $16.88
35	35 54802052000 Bolt kpl. 2014	54802052000	US $26.49
36	36 00062030000 Brake fluid dot5.1 0,25l 2014	00062030000	US $14.35
37	37 54802037000 Protection cap 06 2014	54802037000	US $18.77
38	38 54802038100 Lever screw cpl. 06 2014	54802038100	US $36.02
39	39 54802046000 Push rod cpl. 2014	54802046000	US $20.01
44	44 54802005100 Clamp cpl. 06 2014	54802005100	US $23.49
63	63 78132063000 Clutch Pipe 2014	78132063000	US $111.93
92	92 79002091000 Throttle Cable Cpl. 4Stroke 2014	79002091000	US $109.50

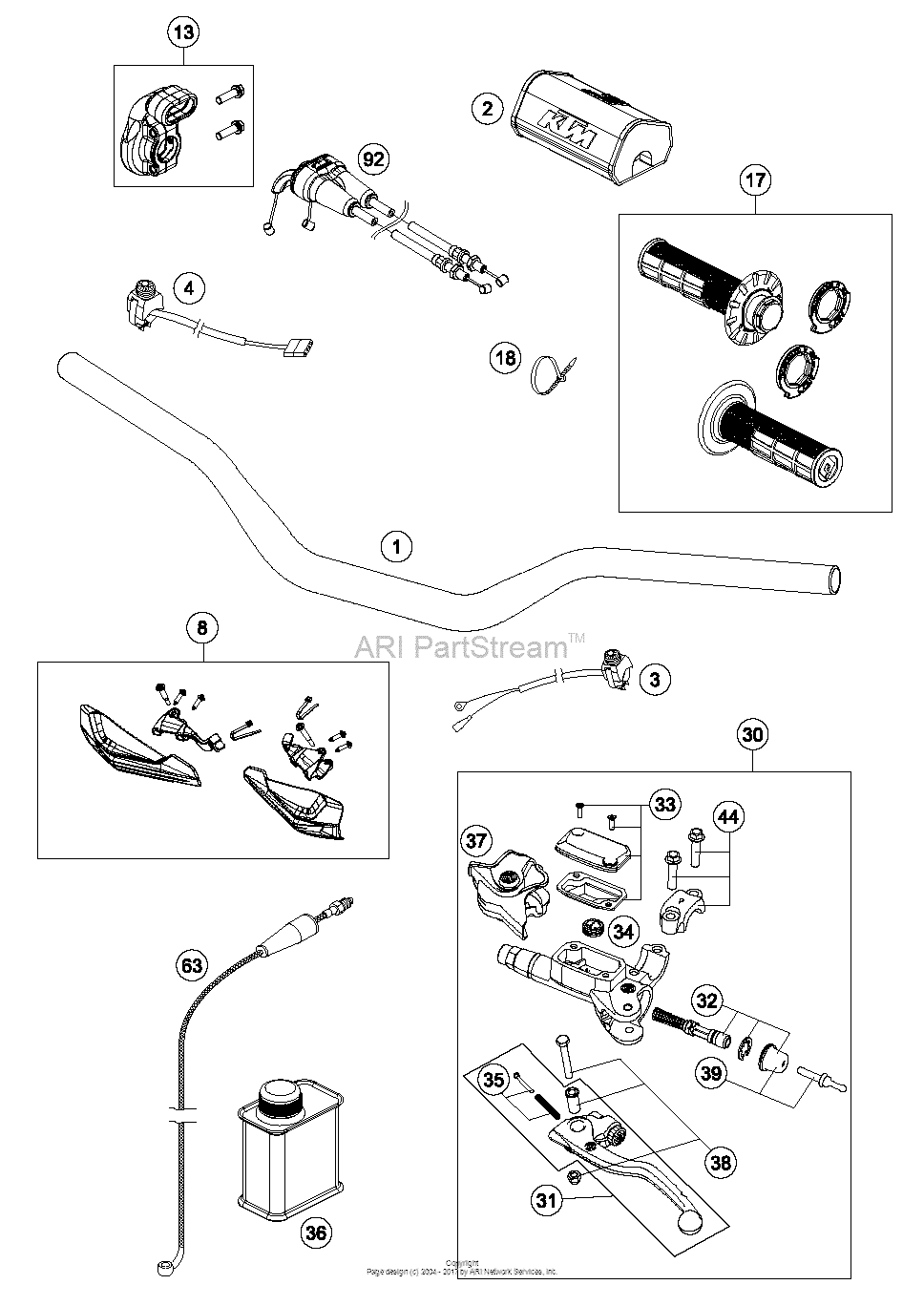

Handlebar, Controls Diagram KTM 450 450 XC-F US/EU 18095864-940158

Handlebar, Controls Diagram KTM 450 450 XC-F US/EU 18095864-940158
