Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 78936020044 Cylinder Head Cpl As Required, 13	78936020044	US $728.31
2	2 78930036010 Cylinder Head Gasket S=1.0 As Required, 13	78930036010	US $104.50
3	3 7803605200033 Valve cover black matt As Required, 13	7803605200033	US $30.72
4	4 78036053100 Valve Cover Gasket As Required, 13	78036053100	US $10.22
5	5 78036054100 Valve cover screw As Required, 13	78036054100	US $5.93
6	6 75036052010 Decoupling element 07 07	75036052010	US $5.20
7	7 77736044000 Rubber Boot Efi 07	77736044000	US $37.15
8	8 0025060166 Hh collar screw m6x16 tx30 TX30	0025060166	US $2.23
9	9 78136139000 Exhaust Flange TX30	78136139000	US $54.64
10	10 78036041000 Exhaust flange gasket TX30	78036041000	US $3.26
11	11 58030010200 Screw In Nozzle M20X1,5 TX30	58030010200	US $8.82
14	14 60030063070 Oil jet 70 m5 TX30	60030063070	US $10.86
16	16 78136025001 Valve Guide Intake TX30	78136025001	US $21.95
17	17 78030044000 Cyl. head screw m10x1,25 l=125 TX30	78030044000	US $9.37
18	18 77336089010 Washer 19x10,5x2,5 TX30	77336089010	US $3.13
19	19 0025060706 Hh collar screw m6x70 tx30 TX30	0025060706	US $1.82
20	20 59030296000 Screw plug TX30	59030296000	US $5.49
24	24 61036047000 Hose clamp gemi 63mm 05 05	61036047000	US $7.46
25	25 77236048000 Hose Clamp Gemi 58Mm 05	77236048000	US $12.09
26	26 0770100020 O-ring 10,00x2,00 silcone 05	0770100020	US $2.02
27	27 60011252000 Temperat.-sensor water lc8 02 02	60011252000	US $38.01
28	28 58431082300 Clamp Ydnac 10173 (18Mm) 02	58431082300	US $1.05
29	29 78130087000 Engine Breather Tube 02	78130087000	US $21.73

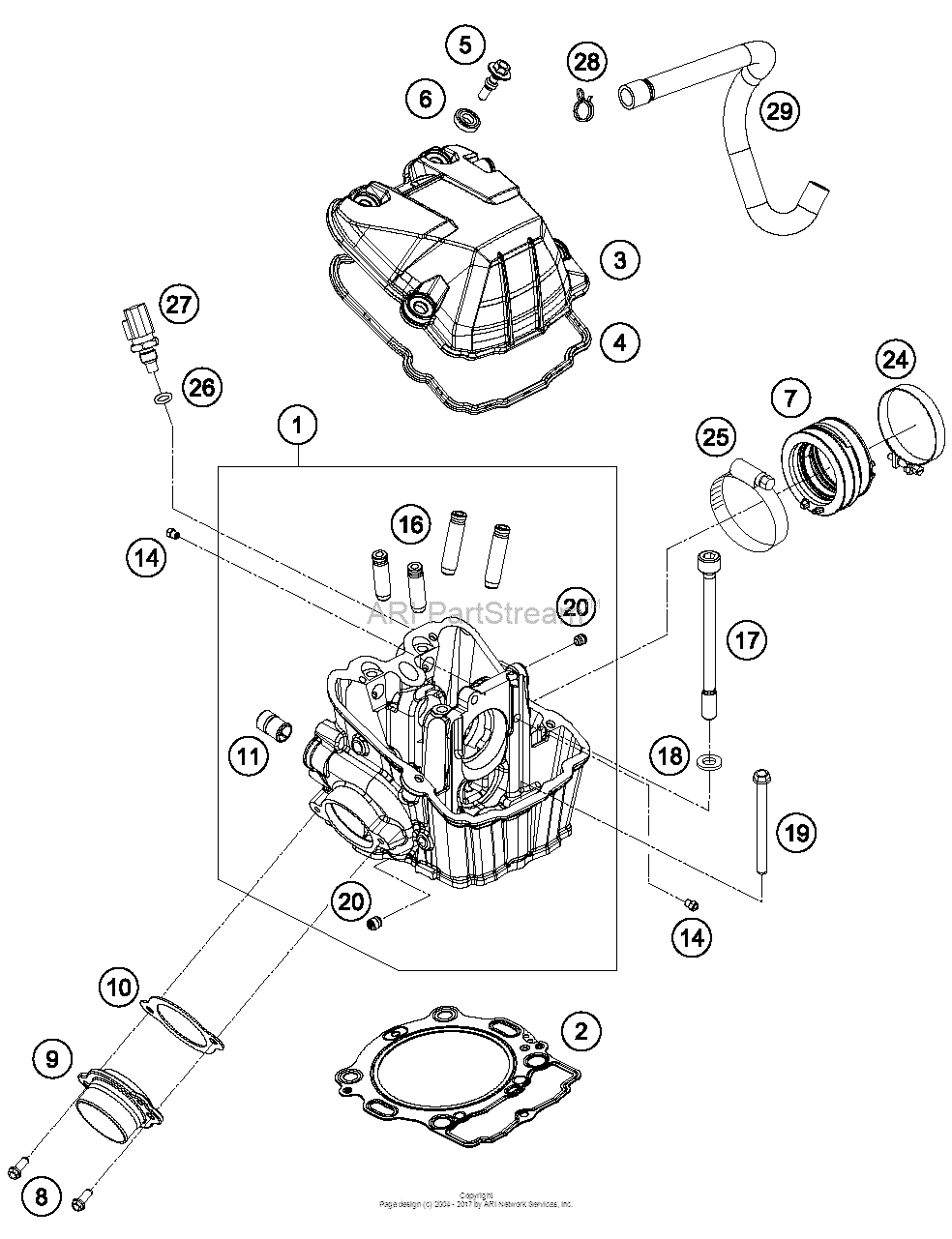

Cylinder Head Diagram KTM 450 450 XC-F US/EU 18095882-940159

Cylinder Head Diagram KTM 450 450 XC-F US/EU 18095882-940159
