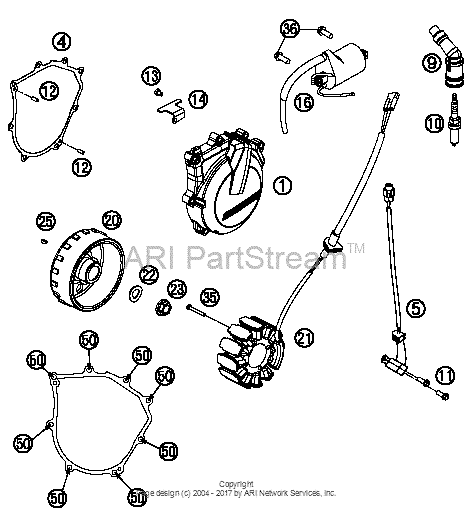

Ignition System Diagram KTM 450 450 XC-F
- Year
- 2014
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 XC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7893000200015 Ignition Cover12 |
7893000200015 |
US $110.52 |
||
|
4
|
4
78130040000 Gasket - Ignition Cover12 |
78130040000 |
US $18.77 |
||
|
5
|
5
59039034000 Pulser coil kokusan 4k3-a/b12 |
59039034000 |
US $114.99 |
||
|
9
|
9
77139090000 Spark Plug Connector12 |
77139090000 |
US $56.17 |
||
|
10
|
10
75039093000 Spark plug m12x1,25 lkar8ai-912 |
75039093000 |
US $26.61 |
||
|
11
|
11
0025050166 Hh collar screw m5x16 tx30TX30 |
0025050166 |
US $2.60 |
||
|
12
|
12
0402040980 Needle Rol.din5402 Nrb 4X9,8TX30 |
0402040980 |
US $1.77 |
||
|
13
|
13
0019040106S Flat head screw isa25 m4x10TX30 |
0019040106S |
US $0.85 |
||
|
14
|
14
81230002010 Retaining plateTX30 |
81230002010 |
US $8.36 |
||
|
16
|
16
58439006000 Ignitioncoil ig3826 kokusan'9696 |
58439006000 |
US $83.22 |
||
|
20
|
20
78939005000 Rotor96 |
78939005000 |
US $200.86 |
||
|
21
|
21
78939004000 Stator96 |
78939004000 |
US $456.93 |
||
|
22
|
22
0137120000 Spring washer din0137-b1296 |
0137120000 |
US $0.39 |
||
|
23
|
23
49030021000 Collar nut m12x1 r/s96 |
49030021000 |
US $10.57 |
||
|
25
|
25
0888030050 Woodruff Key Din6888-3X5X1396 |
0888030050 |
US $2.60 |
||
|
35
|
35
0012040303 Ah Screw Din6912 M4X3096 |
0012040303 |
US $1.38 |
||
|
36
|
36
0026060186 Collar Screw M6X18 Isa3096 |
0026060186 |
US $0.58 |
||
|
50
|
50
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
