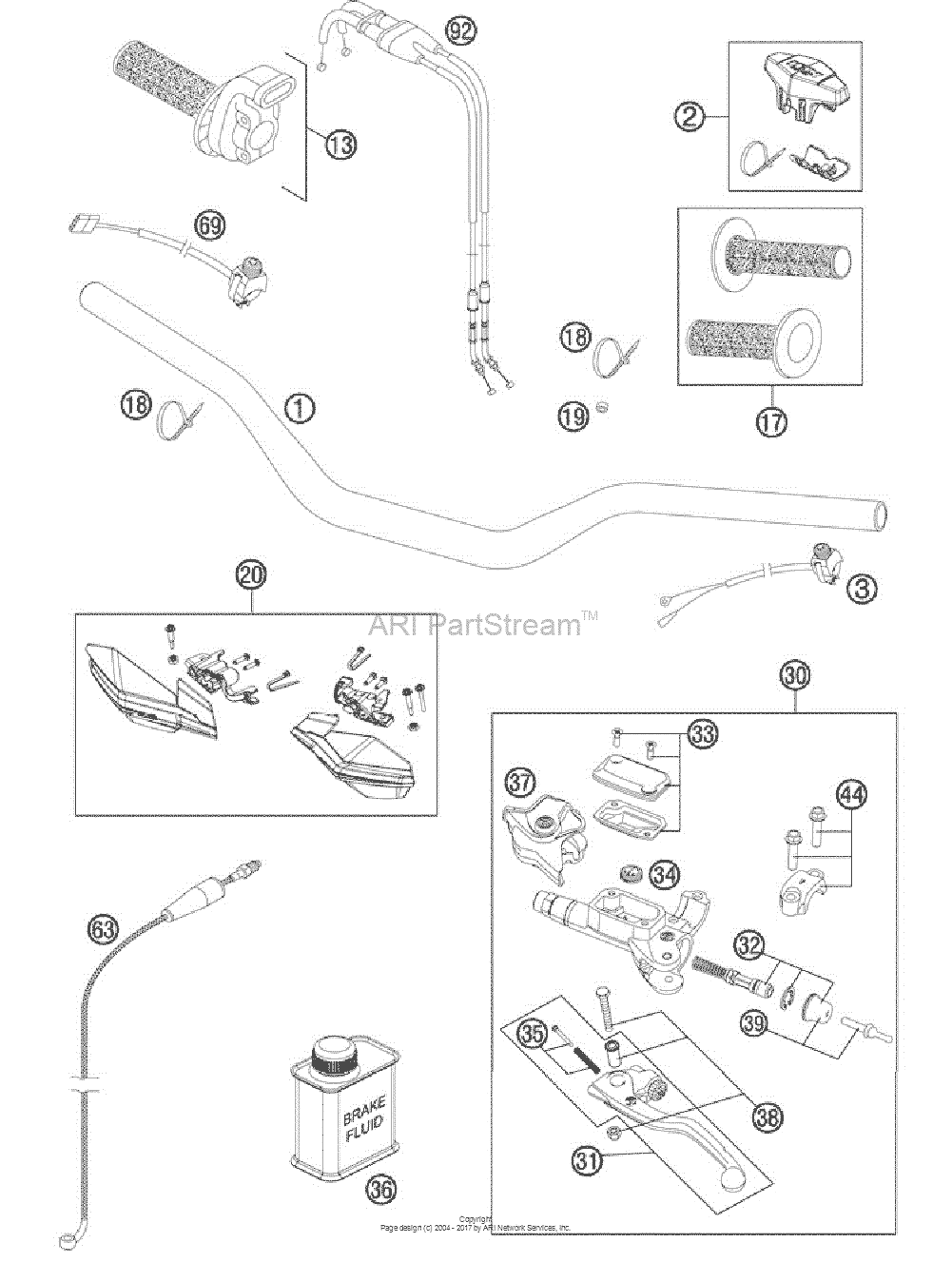

Handlebar, Controls Diagram KTM 450 450 XC-W
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7800200100017 Handlebar d=28mm2000 |
7800200100017 |
US $183.19 |
||
|
2
|
2
77202002144 Bar Pad Cpl2000 |
77202002144 |
US $26.96 |
||
|
3
|
3
50311089200 Short Circuit Button 0202 |
50311089200 |
US $50.97 |
||
|
13
|
13
77002010100
Throttle grip cpl. 4-st. 09
09 |
77002010100 |
— | ||
| replacement | |||||
|
13
|
13
78102010000 Throttle Grip Cpl09 |
78102010000 |
US $71.72 |
||
|
17
|
17
54802021200 Grip-set gray/orange 0909 Not Available |
54802021200 |
US $28.29 |
||
|
18
|
18
44011076140 Cable tie 140/2,5mm black(As required) |
44011076140 |
US $0.29 |
||
|
18
|
18
44011076200 Cable tie 200/3,6mm black(As required) |
44011076200 |
US $0.39 |
||
|
19
|
19
50301089000 Spacer bushing 6x10x5(As required) |
50301089000 |
US $1.58 |
||
|
20
|
20
7810297900004 Handguards Cpl.le+Ri Orange(As required) |
7810297900004 |
US $83.28 |
||
| replacement | |||||
|
20
|
20
7810297905004 HANDGUARD SET ORANGE(As required) |
7810297905004 |
US $41.63 |
||
|
30
|
30
54802030044
Master cylinder cpl. 06
06 |
54802030044 |
— | ||
| replacement | |||||
|
30
|
30
54802030144 Master Cylinder Cpl06 |
54802030144 |
US $214.10 |
||
|
31
|
31
54802031000 Clutch lever cpl. brembo 0606 |
54802031000 |
US $45.82 |
||
|
32
|
32
54802032000 Rep. kit piston 0606 |
54802032000 |
US $43.21 |
||
|
33
|
33
54802003000 Cover hyd. clutch cpl.06 |
54802003000 |
US $30.28 |
||
|
34
|
34
54802051000 Valve06 |
54802051000 |
US $16.88 |
||
|
35
|
35
54802052000 Bolt kpl.06 |
54802052000 |
US $26.49 |
||
|
36
|
36
00062030000 Brake fluid dot5.1 0,25l06 |
00062030000 |
US $14.35 |
||
|
37
|
37
54802037000 Protection cap 0606 |
54802037000 |
US $18.77 |
||
|
38
|
38
54802038100 Lever screw cpl. 0606 |
54802038100 |
US $36.02 |
||
|
39
|
39
54802046000 Push rod cpl.06 |
54802046000 |
US $20.01 |
||
|
44
|
44
54802005100 Clamp cpl. 0606 |
54802005100 |
US $23.49 |
||
|
63
|
63
78132063000 Clutch Pipe06 |
78132063000 |
US $111.93 |
||
|
69
|
69
59411074000 Starter control 0404 |
59411074000 |
US $39.17 |
||
| replacement | |||||
|
69
|
69
78111074000 Starter Button Grey 1304 |
78111074000 |
US $58.31 |
||
|
92
|
92
77002091000 Throttle cable 250 sxf 20052005 |
77002091000 |
US $80.70 |
||
