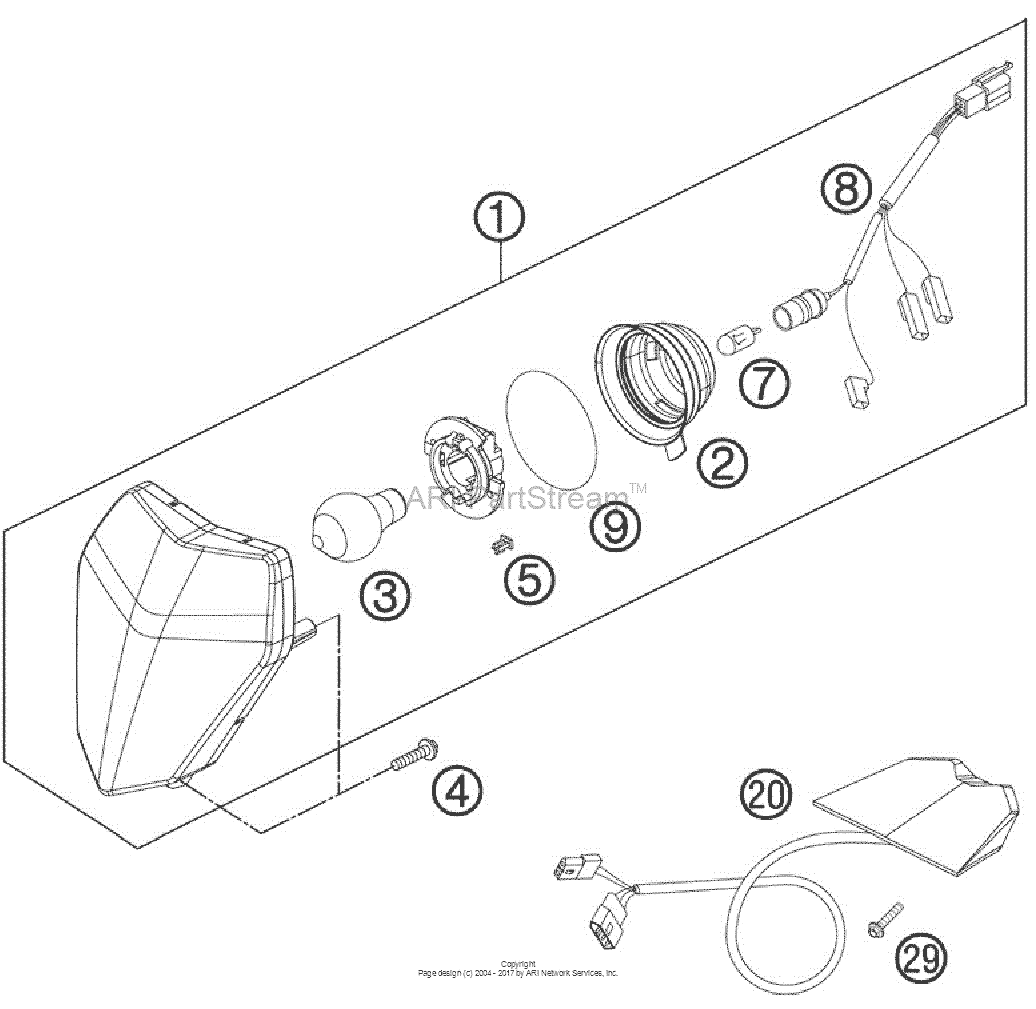

Lighting System Diagram KTM 450 450 XC-W
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 450
- Model
- 450 XC-W
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78014001000 Head light cpl. exc-eu 0808 |
78014001000 |
US $94.88 |
||
|
2
|
2
54814001050 Rubber cap for head light 0505 |
54814001050 |
US $12.41 |
||
|
3
|
3
44111038000 Bilux-bulb 12v 35/35w ba20dBA20D |
44111038000 |
US $16.30 |
||
|
4
|
4
0081050181 Screw for plastic k50x18 t20BA20D |
0081050181 |
US $0.73 |
||
|
5
|
5
78014009000 Drain Hole CoverBA20D |
78014009000 |
US $1.96 |
||
|
7
|
7
49011435100 Bulb 12V 5W (W2,1X9,5D) PhilBA20D |
49011435100 |
US $3.81 |
||
|
8
|
8
54811001050 Cable for head light 20052005 |
54811001050 |
US $12.22 |
||
|
9
|
9
0770350032 O-ring 35,00x32,00 nbr2005 |
0770350032 |
US $5.63 |
||
|
20
|
20
76514040000 Rear light2005 |
76514040000 |
US $114.39 |
||
|
29
|
29
0017060253
Ejot pt screw k60x25-z sw=6
2005 |
0017060253 |
— | ||
| replacement | |||||
|
29
|
29
0017060255 Ejot Pt Screw K60X25-Z Sw62005 |
0017060255 |
US $4.22 |
||
