	Description	OEM Part #	Price
1	1 78105082000 Silencer Xc-W Usa 14	78105082000	US $726.75
2	2 0770740015 O-ring 74,00x1,50 fkm 75sh 14	0770740015	US $2.53
3	3 77208013050 Thermal Protection Foil 14	77208013050	US $4.90
4	4 78105082080 Silencer Housing Exc Usa 14	78105082080	US $136.27
5	5 77308013050 Thermal protection foil 07 07	77308013050	US $8.18
8	8 78105081050 Connecting Cap 07	78105081050	US $236.22
9	9 77205169000 Bushing 7.5X12X28X8.3 11 11	77205169000	US $7.82
10	10 0137060003 Spring Washer Din0137-B 6 11	0137060003	US $0.43
11	11 77205069000 Bushing 7.5X12X20X8.2 11 11	77205069000	US $4.42
12	12 77205068000 Damp. Compon. Black 11	77205068000	US $8.43
13	13 54603048000 Range Change Metal Nut M8 11	54603048000	US $3.35
14	14 0025060306 Hh collar screw m6x30 tx30 TX30	0025060306	US $3.96
16	16 78105081040 Insert Silencer TX30	78105081040	US $59.79
19	19 77005081055 Sil. element exc-f 07 07	77005081055	US $8.26
20	20 50305016000 Ten.spring L=62Mm Ey.moveable 07	50305016000	—
	replacement
20	20 A46005016000 TEN.SPRING L=62MM EY.MOVEABLE 07	A46005016000	US $5.88
21	21 0025080256 Hh Collar Screw M8X25 Tx40 TX40	0025080256	US $4.10
22	22 78105081010 Screw Torx M5X10 TX40	78105081010	US $0.61
23	23 59405069000 Bushing for exhaust support 03 03	59405069000	US $5.42
24	24 50305116000 Ten.spring L=75Mm Ey.moveable 03	50305116000	US $6.14
30	30 78105082060 Silencer Cap Exc Usa 03	78105082060	US $164.85
34	34 78105078430 Rockwool Prefomed 03	78105078430	US $67.32
	replacement
34	34 78105078400 Rockwool Prefomed 03	78105078400	US $66.81
35	35 78105078070 Stuffing Yarn Rear 03	78105078070	US $30.86
40	40 78105007000 Exh. Pipe Exc Without Lambda 03	78105007000	US $408.63
99	99 00050000815 Exhaust Parts Kit 12-14 12-13, As Required	00050000815	US $81.62

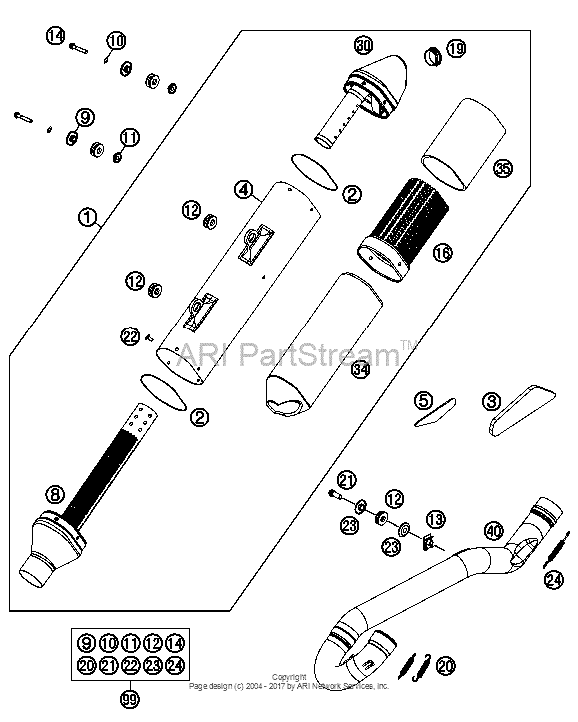

Exhaust System Diagram KTM 450 450 XC-W US/EU 18095981-940164

Exhaust System Diagram KTM 450 450 XC-W US/EU 18095981-940164
