Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 78103101000BE Frame 781N2 Anthracite 2014 2014	78103101000BE	US $1,640.43
2	2 77203002000 Sub Frame Sx 2014	77203002000	US $368.54
3	3 78103002010 Sub Frame Application Left 2014	78103002010	US $20.28
4	4 78103002020 Sub Frame Application Right 2014	78103002020	US $22.39
5	5 78103113000 Reinforcing Bracket 450 2014 2014	78103113000	US $6.48
7	7 77207012000 Tank Rest Rubber 2014	77207012000	US $8.04
8	8 59001037000 Special screw m8x26 ws=10 2014	59001037000	US $2.09
9	9 0934080003 Hexagon Nut Din0934-M 8 2014	0934080003	US $3.26
10	10 77003013050 Washer 8,5x18x1 inox 2014	77003013050	US $2.14
12	12 59003013000 Enginebrac.screw m10x123 ws=13 2014	59003013000	US $13.57
14	14 0019080206S Flat head screw m. isa45 m8x20 2014	0019080206S	US $3.26
15	15 56530079000 Collar screw m8x42 ws=13 10.9 2014	56530079000	—
	replacement
15	15 56530079000S Hh Collar Screw M8X44 Ws13 2014	56530079000S	US $1.60
16	16 54803092050 Blind plug-in nut m5 wn 22a 03 03	54803092050	US $4.76
17	17 44011076305 Cable tie 300/4,8mm black 03	44011076305	US $0.36
17	17 44011076140 Cable tie 140/2,5mm black As Required	44011076140	US $0.29
18	18 0738050250 Cou.sunk scr. ah iso7380 m5x25 As Required	0738050250	US $0.75
19	19 54803092060 Bush f. frame protection 03 03	54803092060	US $3.43
20	20 54403135000 Plastic cap sfl10 03	54403135000	US $1.31
25	25 54310086200 Self Locking Nut M8 10.9 03	54310086200	US $1.56
26	26 54310086100 Self locking nut m10 cu ws=14 03	54310086100	US $2.55
27	27 0025080306 Hh collar screw m8x30 tx40 TX40	0025080306	US $3.89
28	28 0025060356 Hh collar screw m6x35 tx30 TX30	0025060356	US $6.15
29	29 0125060003 Washer Din0125-A 6,4 TX30	0125060003	US $0.37
36	36 78003040050 Footrest l/s 08 08	78003040050	US $44.12
40	40 78003041050 Footrest r/s 08 08	78003041050	US $44.12
41	41 54803044000 Pin For Foot Ped 51.5X9.8 Mm 03	54803044000	US $10.98
42	42 54603041000 Footrest Spring L/s & R/s 03	54603041000	US $3.52
43	43 0125100003 Washer Din0125-A10,5 03	0125100003	US $1.19
44	44 0094032253 Pin din0094-3,2x25 steel 03	0094032253	US $1.12
	replacement
44	44 0094032250 Pin din0094-3,2x25 steel 03	0094032250	US $1.12
45	45 78003040033 Footrest l/s + r/s cpl. 09 09	78003040033	US $118.13
46	46 50303089000 Angle piece '97 97	50303089000	US $4.52
47	47 55007016001 Pvc-hose 7x10 per meter As Required	55007016001	US $5.98
50	50 78103096000 Chain Guard 450/500 Exc 12 12	78103096000	US $14.47
59	59 77203053000 Chain Slider Lower Part Cpl 12	77203053000	US $7.67
62	62 77303139000 Blind rivet nut em6-60lf/hx As Required	77303139000	US $2.94
63	63 77203094000 Plastic Frame Protection Set As Required	77203094000	US $54.15
64	64 77203053010 Chain Sliding Kit Below Cpl.11 11	77203053010	US $17.46
99	99 78103096010 Sprocket Cover Kit As Required	78103096010	US $19.31

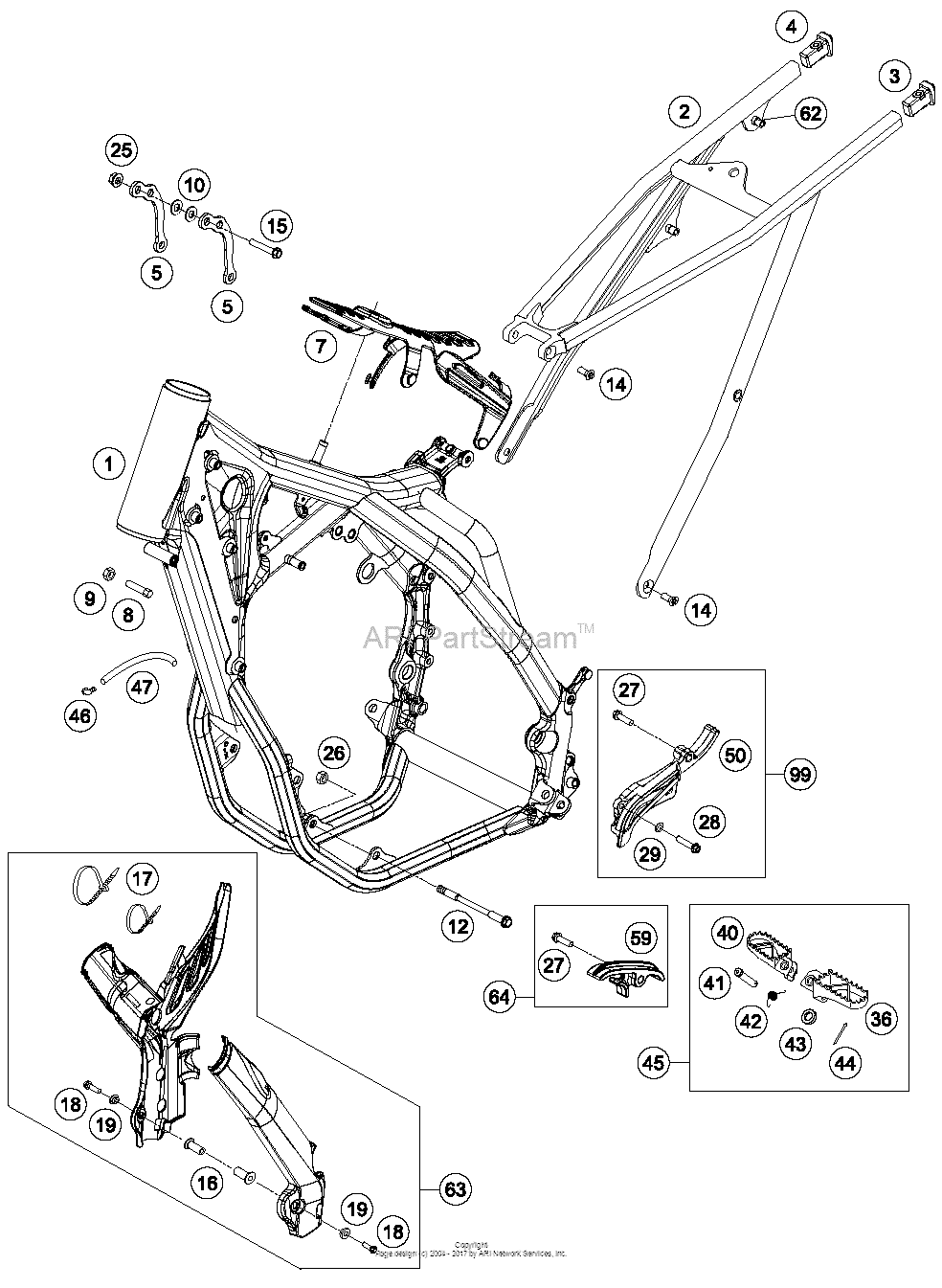

Frame Diagram KTM 450 450 XC-W US/EU 18095982-940164

Frame Diagram KTM 450 450 XC-W US/EU 18095982-940164
